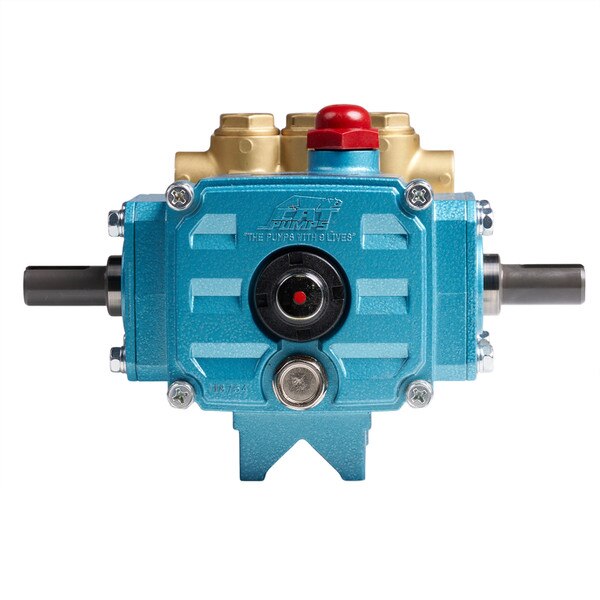

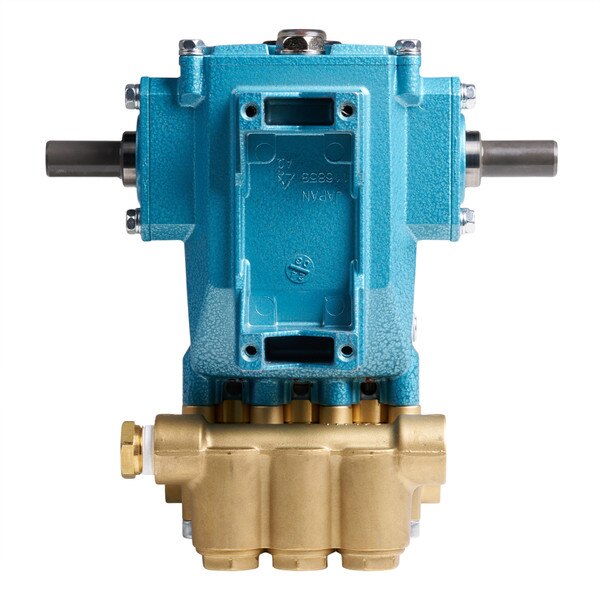

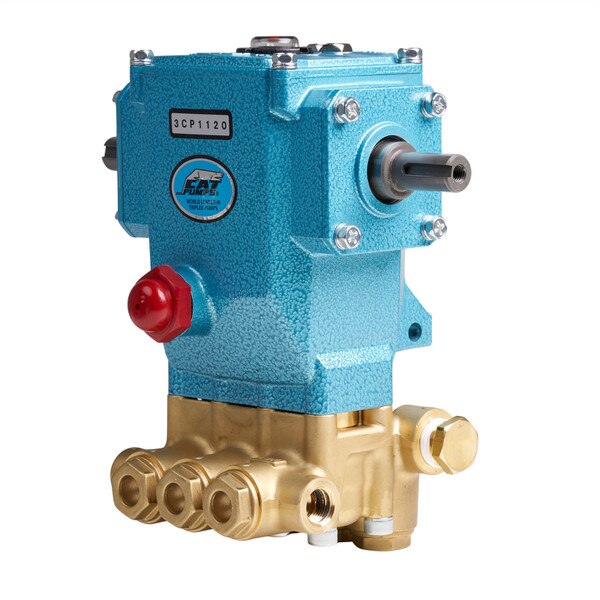

Cat Pump 3CP1120 - High-Pressure Triplex Plunger Pump
Positive displacement, reciprocating, triplex (three plunger rods) plunger pump from Cat Pumps, specifically the 3CP1120 model. It is designed with a forged brass manifold, 304 stainless steel valve assemblies, and solid ceramic plungers for durability and performance. Standard NBR (Buna-N) seals and o-rings are used. This pump delivers a maximum flow of 4.2 gallons per minute (GPM) and operates within a pressure range of 100 to 2200 PSI. The 1725 RPM rating allows for various drive options, including direct drive, flexible coupling, clutch, or belt drive.
- Product Type: Triplex Plunger Pump
- Model: Cat Pump 3CP1120
- Flow Rate: 4.2 GPM (16 L/min)
- Pressure Range: 100 - 2200 PSI (6.9 - 152 bar)
- RPM: 1725
- Inlet Port Size: 0.5" NPT(F)
- Discharge Port Size: 0.375" NPT(F)
- Drive Type(s): Belt, Direct Drive, Flexible Coupling, Clutch
- Manifold Material: Forged Brass (BB)
- Valve Material: 304 Stainless Steel
- Plunger Material: Solid Ceramic
- Seal Material: NBR (Buna-N)
- Triplex (three plunger rods) design for high efficiency and low pulsation

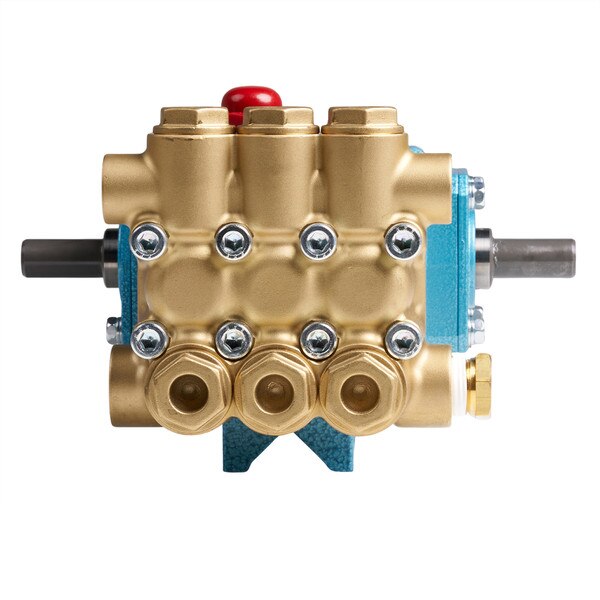

- Forged brass manifold for durability and corrosion resistance
- 304 Stainless steel valve assemblies for chemical resistance.
- Solid ceramic plungers for extended life
- Multiple drive options for installation flexibility
