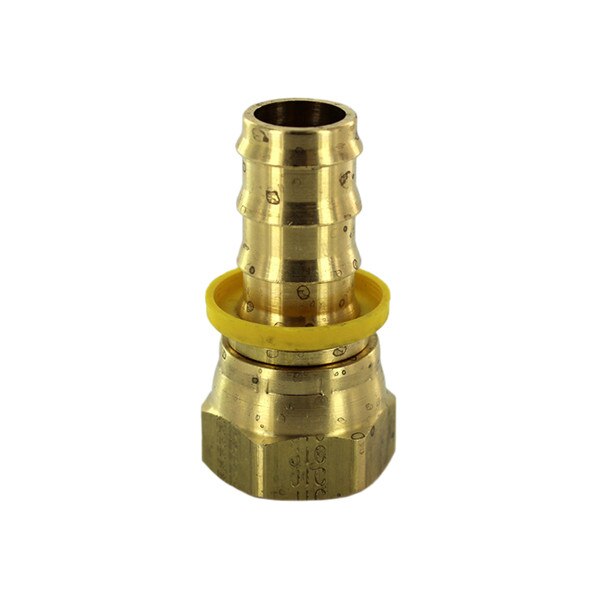

3/4" FJIC x 3/4" Hose Barb Brass Straight Fitting (300 PSI)
SKU: P-WAT-2899
This Parker 82 Series "Push-Lok" fitting is a field-attachable hydraulic component designed for quick and easy hose assembly, requiring no special tools or clamps when used with compatible No-Skive hoses. Its brass construction offers good resistance to corrosion, making it reliable in the challenging environment of a car wash tunnel.
Key features and benefits include:
- Dual Connection: Features a 3/4 inch Female JIC (37 Degree Swivel) connection on one end (Thread Size: 1-1/16 in - 12) and a 3/4 inch Hose Barb on the other end, suitable for a 3/4 inch I.D. hose.
- No-Clamp, Push-On Design: The barb-style design allows for quick attachment to compatible hoses, reducing assembly time and complexity while minimizing the chance of leakage.
- High Performance: Rated for a maximum working pressure of 300 PSI and compatible with applications involving high temperature, dry air, and hot water.
- Corrosion Resistance: Made from Brass material to resist corrosion and rust in the wet car wash environment.
- Car Wash System Use: Critical component used in the Fire Hose Assembly and included in the Fire Hose Repair Kit for quick on-site fixes.
- Part Number: 30682-12-12B (Parker)
- Product Style: Hydraulic Hose Fitting (Push-On, 82 Series)
- Shape: Straight
- Material: Brass
- End 1: 3/4 in Female JIC 37 Degree Swivel
- End 2: 3/4 in Hose Barb (Hose Dash Size -12)
- JIC Thread Size: 1-1/16 in - 12
- Max Working Pressure: 300 PSI
- Dimensions (Approx.): 2-5/8 in X 1-1/16 in X 3/4 in
- Application: Fire Hose Assembly, Fire Hose Repair Kit
- 3/4" FJIC x 3/4" Barb: Hydraulic JIC to push-on hose connection.
- 300 PSI Max: Suitable for moderate-pressure applications.
- Brass Material: Corrosion and rust resistant.
- No Clamp Required: Allows for quick, field-attachable assembly.
