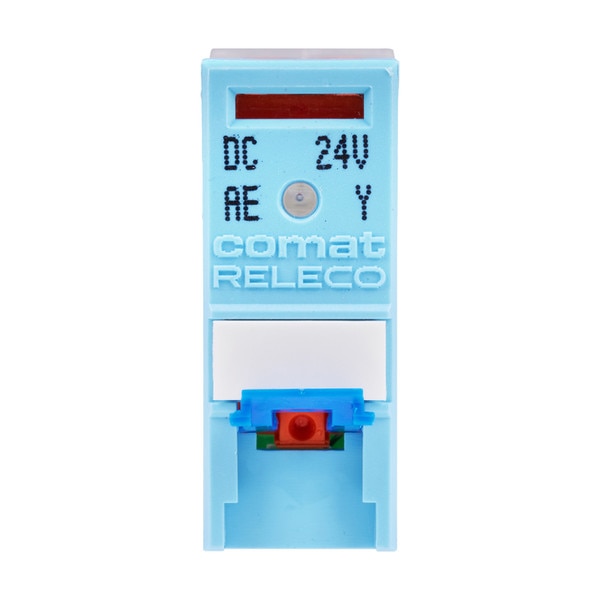

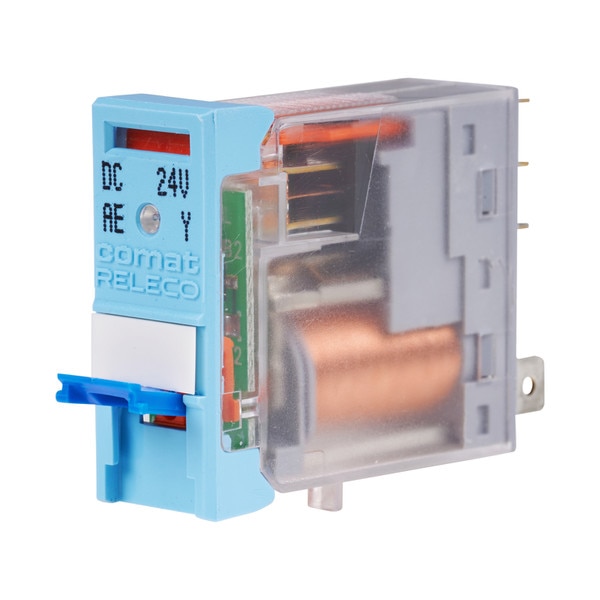

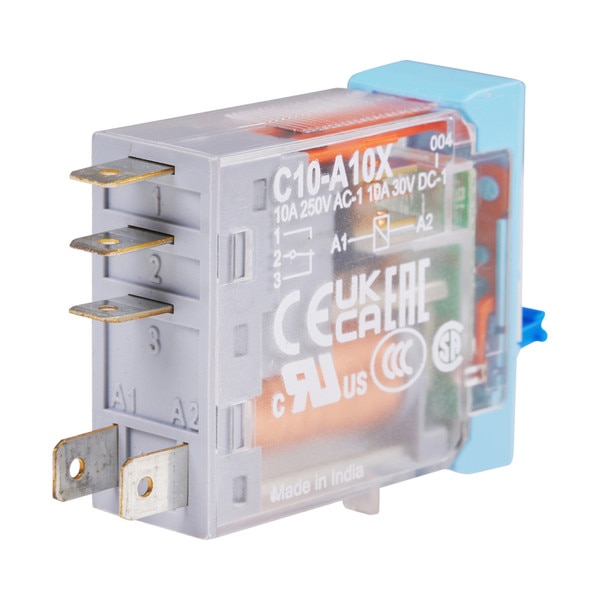

Releco C10-A1x 24VDC Miniature Power Relay - 1 Changeover (SPDT) Contact, 10A, Faston Plug-in
The E-SE-C2048 represents a high-quality 24 VDC Releco C10-A1x series miniature power relay, specifically designed for reliable performance in industrial control systems, including applications like Tommy Controllers found in car wash systems. This compact relay is equipped with a single changeover (SPDT) contact, allowing it to switch current between two circuits. Its plug-in Faston .187 terminals facilitate quick and secure electrical connections, reducing installation time and complexity. The relay's robust design ensures dependable operation in various demanding environments.
This Releco relay handles a rated load of 10 A and a maximum switching voltage of 250 V. It can manage AC-1 loads up to 2.5 kVA. The standard contacts are made from AgNi material, known for its conductivity and durability, with optional contact materials available for specialized needs. The 24V DC coil has a resistance of 742 Ω and consumes 0.7 W (32 mA). Safety is a key feature, with 5 kV insulation between the contact and coil and a 4 kV impulse withstand voltage (IEC 61810-1). Built for longevity, the relay boasts a mechanical life of 20 million operations (DC) and an electrical endurance exceeding 100,000 switching cycles at its rated load. It offers quick response times with a 10 ms pick-up and 5 ms release and operates reliably in a wide temperature range from -40°C to 70°C (-40°F to 158°F). Its compact dimensions (28.8 mm H x 12.5 mm W x 35.4 mm D, including terminals) and light weight (21 g) make it suitable for space-constrained installations. The relay is compatible with standard S10 and S10-P sockets.
This Releco relay is particularly well-suited for automation applications where precise and reliable switching of electrical loads is essential, such as in car wash systems for controlling various components. Its robust construction, high switching capacity, and resistance to environmental factors ensure consistent performance and extended service life in frequently operating and potentially harsh industrial settings.
- Series: Releco C10-A1x
- Coil Voltage: 24 VDC
- Contact Configuration: 1 Pole Changeover Contact (SPDT)
- Mounting: Plug-in Faston .187 Terminals
- Rated Load: 10 A
- Maximum Switching Voltage: 250 V
- Maximum AC Load (AC-1): 2.5 kVA
- Maximum Contact Load: 10 A/250 V AC-1, 10 A/30 V DC-1, 0.5 A/110 V DC-1, 0.2 A/220 V DC-1, 13 A/250 V AC-1 (initial)
- Recommended Minimum Contact Load: 10 mA/10 V (Code 0.5), 5 mA/5 V (Code 8)
- Switch-on Current Max. (20 ms): 30 A (120 A for Code 5)
- Contact Material (Standard): AgNi
- Coil Resistance (24VDC): 742 Ω (±10%)
- Coil Current (24VDC): 32 mA
- Nominal Power (DC): 0.7 W
- Pick-up Voltage: ≤ 0.8 x UN (Nominal Voltage)
- Release Voltage: ≥ 0.1 x UN (Nominal Voltage)
- Insulation Voltage (Contact Open): 1000 V rms / 1 min
- Insulation Voltage (Contact/Coil): 5 kV rms / 1 min
- Insulation Resistance (at 500V): ≥ 1 GΩ
- Insulation (IEC 61810-1): 4 kV
- Operating Temperature: -40°C to 70°C (-40°F to 158°F)
- Storage Temperature: -40°C to 80°C (-40°F to 176°F) (no ice)
- Pick-up Time: 10 ms
- Release Time: 5 ms
- Bounce Time: ≤ 1 ms (Pick-up), ≤ 3 ms (Release)
- Mechanical Life (DC): 20 Million Operations
- DC Voltage Endurance (at Rated Load): ≥ 100,000 switching cycles
- Switching Frequency (at Rated Load): ≤ 1200 / hour
- Weight: 21 g
- Dimensions (H x W x D): 28.8 x 12.5 x 35.4 mm (including Faston terminals; 20 mm body depth)
- Standards: IEC/EN 61810; IEC/EN 60947
- Compatible Sockets: S10, S10-P
- Single Changeover Contact: Provides a versatile SPDT contact configuration for switching applications.
- 24VDC Coil: Standard voltage for many industrial control systems.
- High Switching Capacity: Rated for 10A, capable of handling various AC and DC loads up to 2.5 kVA.
- Faston Plug-in Terminals: Enables quick, easy, and secure installation.
- Exceptional Durability: Boasts 20 million mechanical operations and 100,000+ electrical cycles at rated load.
- Robust Insulation: Features 5 kV insulation between coil and contacts for enhanced safety.
- Wide Temperature Range: Reliable operation from -40°C to 70°C.
- Compact Design: Small footprint and lightweight for space-efficient mounting.
