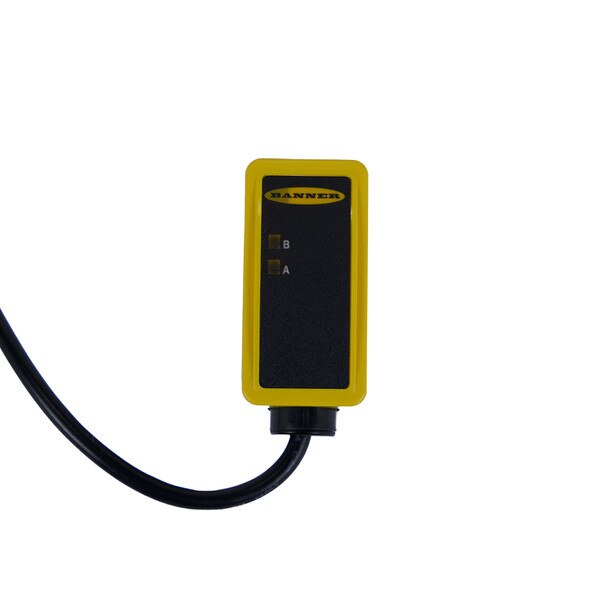

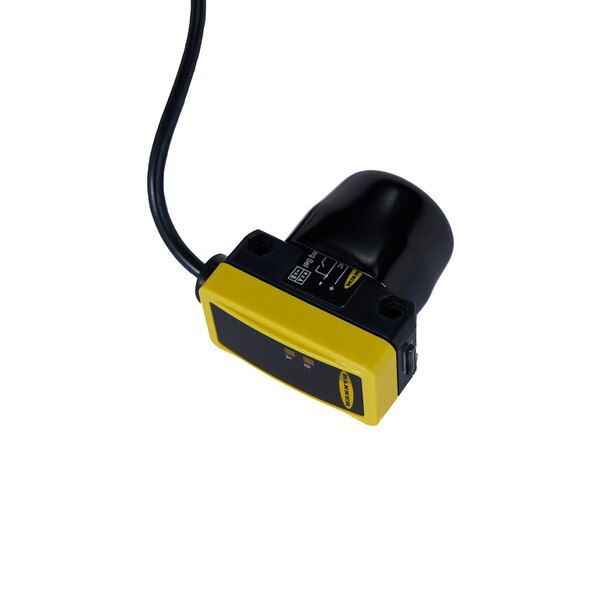

Banner QS30EX High Power Emitter W/30' Cable
The Banner QS30EX Emitter is a high-performance, long-range sensor built for applications that require strong sensing power over long distances or in environments prone to lens contamination. Its high-power infrared LED beam is capable of sensing up to 700 feet away, making it perfect for truck bed, gate, and entrance photo eye applications where reliability is critical.
This emitter is extremely rugged and leakproof, with IP67 and NEMA 4X ratings that guarantee protection against water ingress, dust, and corrosion. The innovative Zeonex lens is designed to shed water and debris, ensuring consistent performance even during high-pressure washdowns. With a simple, no-programming required setup and a convenient LED indicator, installation and maintenance are straightforward.
- Product Type: Photoelectric Sensor Emitter
- Brand: Banner
- Model: QS30EX
- Sensing Mode: Opposed Emitter
- Sensing Beam: Infrared LED
- Supply Voltage: 10-30 VDC
- Operating Temp. Range: -4°F to 140°F
- Sensing Range: 700'
- Output Response Time: 30 ms
- Cable Length: 30'
- Barrel Diameter: 1-3/16" (30 mm)
- Number of Pins: 4
- Housing Material: Thermoplastic
- Lens Material: Zeonex
- Mounting: Rectangular Housing with M30 Mount
- Protection Ratings: IP67, NEMA 4X
- High-Power, Long-Range: Provides a powerful beam with a sensing range of 700'.
- Rugged & Durable: Features a leakproof design with IP67 and NEMA 4X ratings.
- Resists Contamination: Water and debris-shedding Zeonex lens ensures reliable performance.
- Easy Installation: No programming is required, with a simple LED indicator for status.
- Versatile Application: Ideal for truck bed, gate, and other long-distance sensing needs.
