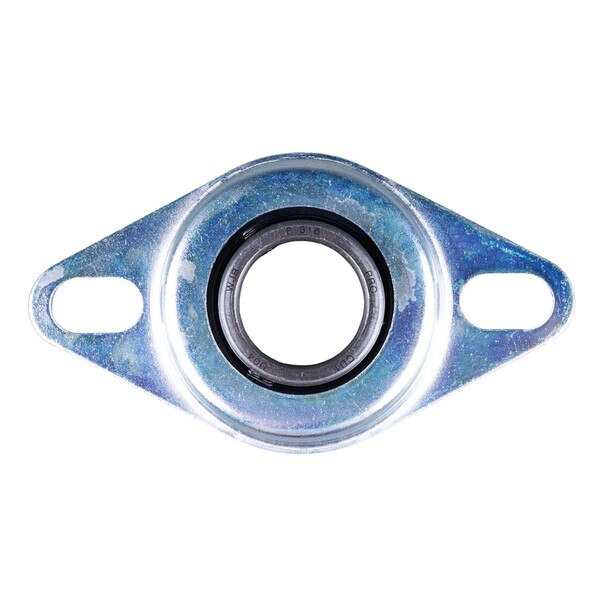

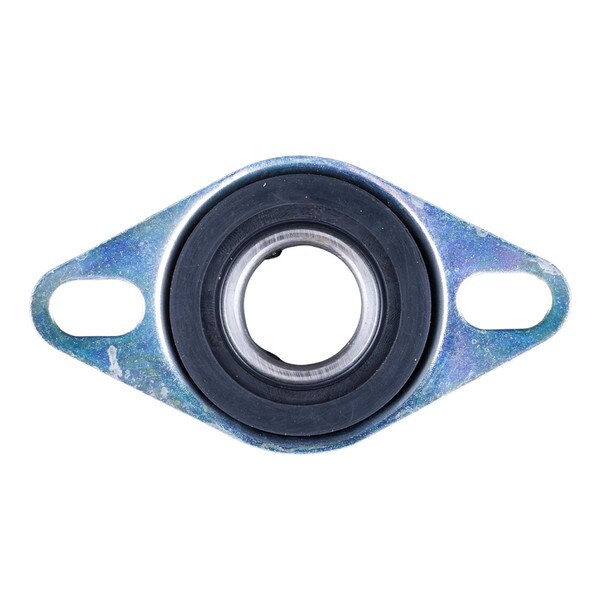

1" Bore Two Bolt Flange Bearing, Pressed Steel Housing (Fixed)
SKU: P-C2374
This F2PS-BL Series Flange Mount Ball Bearing Unit is engineered for reliable, fixed-position shaft support in challenging industrial environments. Its construction provides several benefits critical for car wash equipment:
- Self-Alignment and Noise Reduction: The bearing insert is encased in a non-conductive, oil-resistant rubber liner which can correct up to 2° of misalignment while significantly reducing vibration and noise.
- Corrosion Resistance: The one-piece housing is made of pressed steel and features a rust-proof plated finish to withstand wet or damp conditions.
- Secure Locking: The wide inner race locks securely to the 1" shaft using two set screws.
- Sealing: A Buna-N seal is used to effectively keep contaminants out, allowing the bearing to operate reliably in both wet and dry conditions.
- Performance: The ball bearing is pre-lubricated with Chevron SRI #2 grease, made to ABEC-1 tolerances, and rated for a dynamic load capacity of 3153 lb.
This non-expansion (fixed) bearing is a vital component for supporting rotating shafts in the Tommy Flat Mat Washer.
- Part Number (MPN): F2PS-BL-100
- Product Type: Flange-Mount Ball Bearing Unit
- Bore Diameter: 1 in
- Bearing Type: Ball, Self-Aligning
- Expansion Type: Non-Expansion Bearing (Fixed)
- Mounting Type: 2-Bolt Flange
- Housing Material: Pressed Steel (Rust-proof plated finish)
- Locking Method: 2 Set Screws
- Max Dynamic Load Capacity: 3153 lb
- Tolerance Class: ABEC-1
- Seal Material: Buna-N
- Operating Temperature Range: -30 °F to 200 °F
- Application: Tommy Flat Mat Washer
- Fixed Position: Non-expansion type prevents shaft movement.
- Vibration Damping: Rubber liner corrects misalignment and reduces noise/vibration.
- Corrosion Resistant: Pressed steel housing with a rust-proof finish for wet environments.
- Secure Shaft Lock: Wide inner race with two set screws ensures a tight fit on the shaft.
