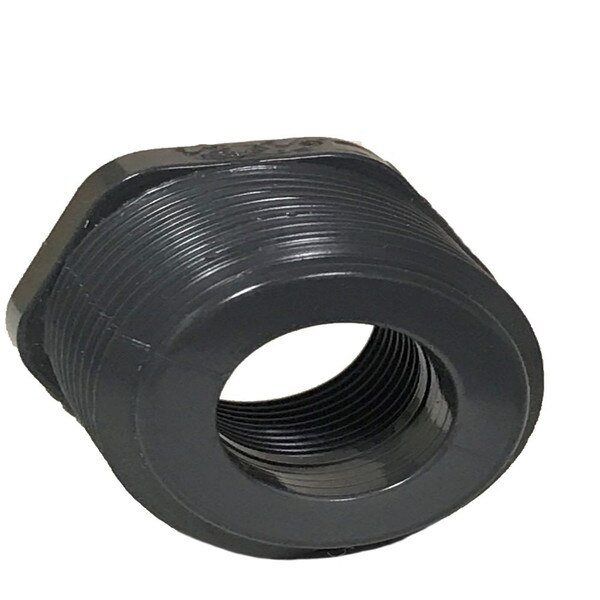

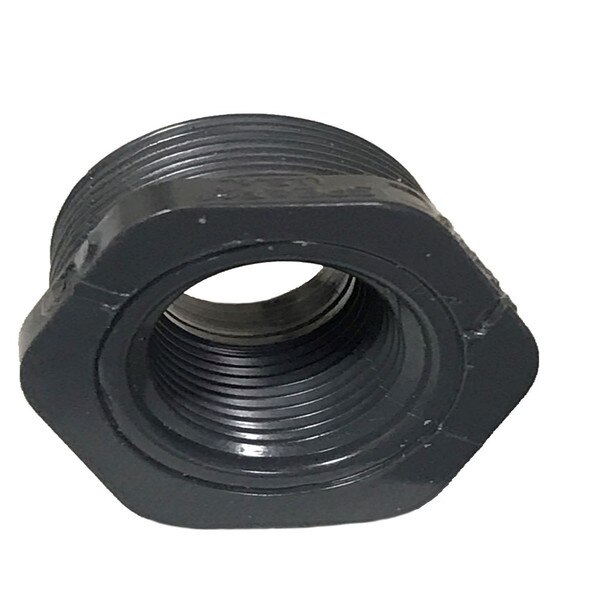

1/2" Male NPT X 1/4" Female NPT Reducer Bushing
The 1/2" Male NPT x 1/4" Female NPT PVC Flush Threaded Reducer Bushing (Fastenal Part #: 0470565) is a compact, precision-threaded plumbing adapter engineered to downsize threaded pipe connections in chemical delivery and low-pressure fluid manifolds.
SKU: P-WAT-2097
This bushing is used in many applications including the Drying Agent, Drying Reverse Hugger, Wrap Mitter Combo, and Clear Coat. This 1/2" Male NPT X 1/4" Female NPT bushing used to create a leak-free system between PVC piping and solvent cementing, threading, or flanging. These bushings are ideal for water applications. They resist corrosion, chemicals, and rust.
Key features and benefits include:
- Corrosion & Chemical Resistant: Constructed from Schedule 80 dark gray PVC, offering exceptional chemical inertness against harsh car wash soaps, drying agents, waxes, and clear coats.
- Compact Flush Design: Mounts flush inside female 1/2" ports, reducing overall spatial clearance needs inside tight arch enclosures and chemical manifold panels.
- Precision NPT Threads: Male 1/2" NPT outer threads and female 1/4" NPT inner threads meet ANSI/ASME B1.20.1 standards for tight, leak-free seals when mated with compatible spray tips or tubing adapters.
- High Hydrostatic Strength: Schedule 80 heavy-wall construction handles high fluid delivery demands without cracking or scaling.
- Industry Compliant: Certified to ASTM D2467, NSF/ANSI Standard 14, and NSF/ANSI Standard 61 (Lead-Free).
- Class: 300 lb.
- Length: 14/16"
- Material: PVC
- Schedule: 80
- Size A: 1/4" Female NPT
- Size B: 1/2" Male NPT
- Max Temp: 140F
- Resist Corrosion, Chemicals, and Rust
- Ideal for Water Applications including Water Processing and Water Treatment
- Smooth Interior Wall Resulting in Less Pressure Loss
