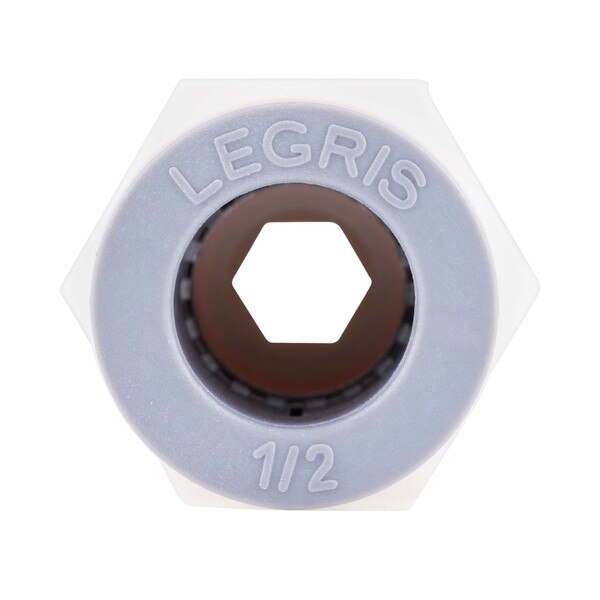

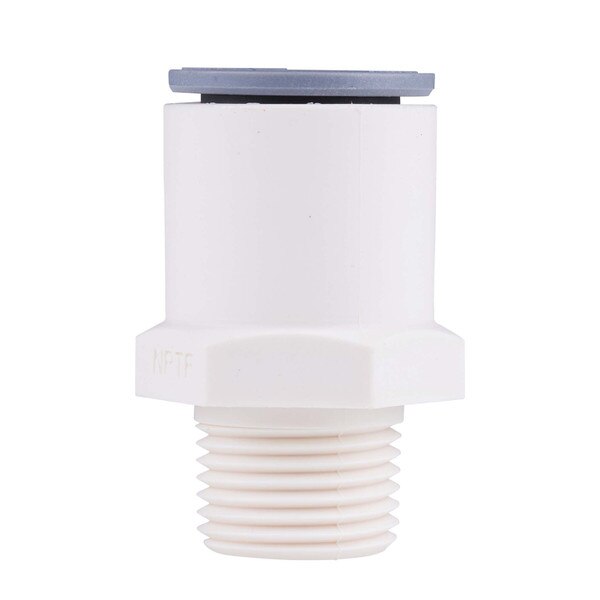

3/8" MNPT x 1/2" Push-To-Connect Tube Fitting (Bio-Polyamide, 230 PSI)
The 3/8" MNPT x 1/2" Push-To-Connect Tube Fitting is a high-performance connector engineered for rapid, secure, and leakproof connections in various fluid transfer systems. This male fitting features a 3/8" Male NPT (National Pipe Taper) thread on one end for robust threaded connections, and a 1/2" Push-To-Connect port on the other, designed specifically for quick and tool-free insertion of nylon tubing.
Constructed from a durable bio-based polyamide material, and featuring an EPDM D-Seal along with a Stainless Steel Gripping Ring, this white fitting ensures a reliable and tight seal under pressure. It is rated for a maximum pressure of 230 PSI and can operate across a wide temperature range from 35°F to 200°F.
The Push-To-Connect technology simplifies installation, significantly reducing assembly time while guaranteeing a leakproof environment. This fitting is versatile and widely applied in systems handling water, potable liquids, RO (Reverse Osmosis) systems, drinking dispensers, and general water filtration systems. In car wash facilities, it serves as a reliable connector for nylon tubing within the wash system. Please note, there is a minimum order quantity of 5 for these specific tube fittings.
- Product Type: Push-To-Connect Tube Fitting
- End 1 Connection: 3/8" Male NPT
- End 2 Connection: 1/2" Push-To-Connect Tube (for nylon tubing)
- Material: Bio-based Polyamide
- Seal Material: EPDM D-Seal
- Gripping Ring Material: Stainless Steel
- Color: White
- Max Pressure: 230 PSI
- Temperature Range: 35°F - 200°F
- Minimum Order Quantity (MOQ): 5
- Applications: Water, Potable Liquids, RO Systems, Drinking Dispensers, Water Filtration Systems, Nylon tubing connections in car washes.
- Quick & Easy Installation: Push-To-Connect technology for tool-free tubing insertion.
- Leakproof Design: Ensures reliable and secure, leak-free connections.
- Durable Construction: Made from bio-based polyamide with stainless steel and EPDM components.
- Wide Application Range: Suitable for water, RO systems, potable liquids, and more.
- High Performance: Rated for up to 230 PSI and temperatures from 35°F to 200°F.
- Corrosion Resistant: Materials chosen for longevity in fluid handling.
