Replacement Venturi Chemical Injection/ Pump System Kit for Rhino-Mat Washer

Comprehensive chemical pump system designed as a direct replacement for the original chemical injection system in Rhino-Mat car mat washing machines (Rhino-Mat part number RHM-CPS). This system utilizes a reliable venturi-style pump to efficiently draw and inject cleaning chemicals into the mat washer's water flow.

This kit includes:

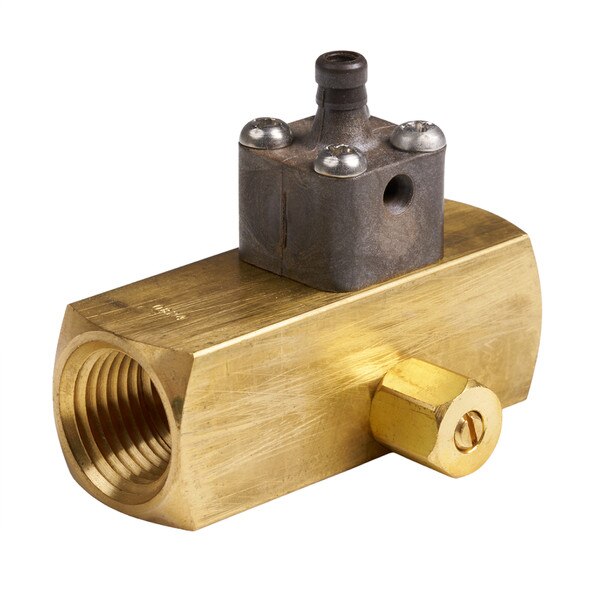

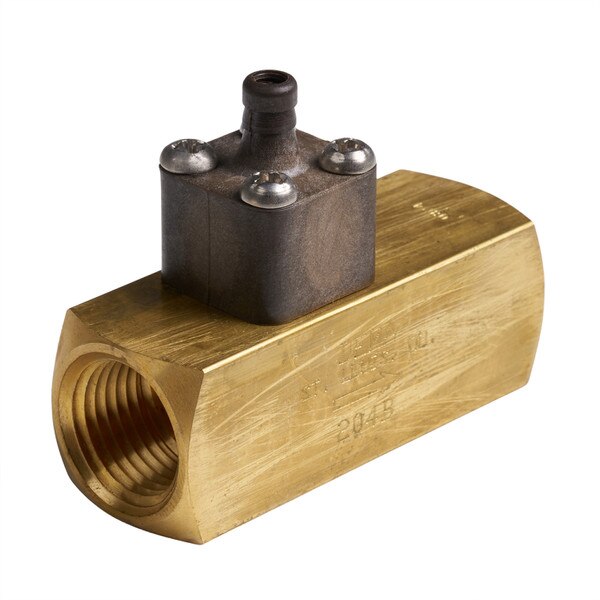

• Robust brass venturi injector: Featuring a threaded inlet and outlet for connection to the water line, and a barbed port with a control mechanism for chemical suction.

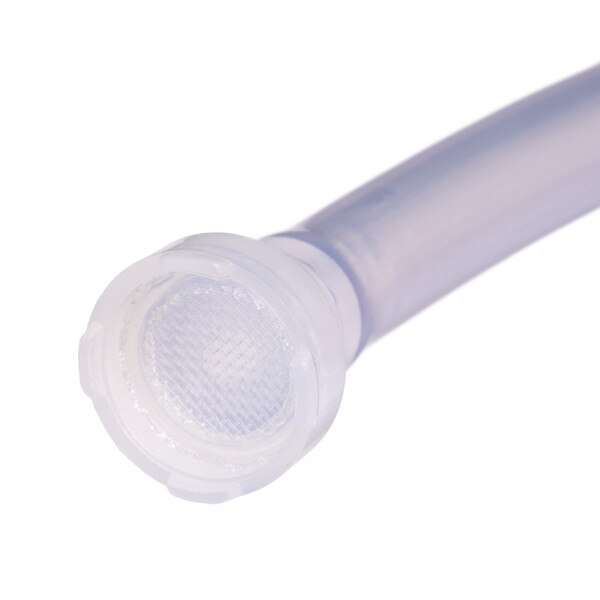

• Clear, flexible chemical suction tubing: Equipped with a white, strainer on one end to draw chemical solution.

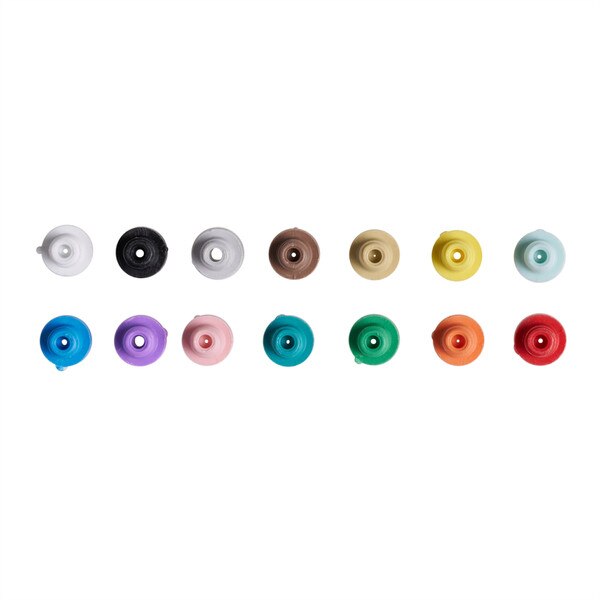

• Set of multiple colored metering tips: These small, precisely sized orifices allow for accurate adjustment of the chemical injection rate to achieve the desired cleaning concentration.
• Threaded galvanized pipe section: For connection to the water supply line within the Rhino-Mat system.
• White circular mounting ring/ fitting
