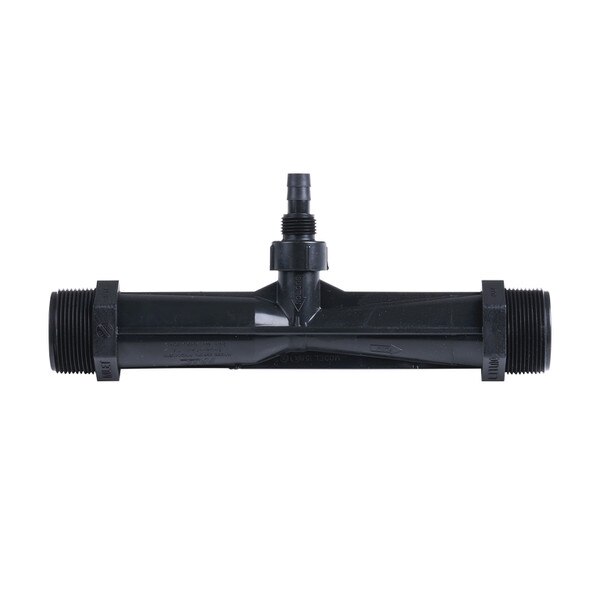

Mazzei Venturi Injector 1584 (1.5" MNPT, PVDF, 25-80 GPM)
The Black Kynar (PVDF) Mazzei Venturi Injector Model 1584 is a high-performance solution for effective ozone injection into water. This specialized injector utilizes the Venturi principle to efficiently dissolve ozone gas into the water stream, significantly enhancing the oxidation process. By creating thousands of micro-bubbles, it greatly increases the surface area of the gas, leading to superior ozone transfer and reaction.
Constructed from Black PVDF (Kynar) material, this injector offers maximum ozone resistance, ensuring exceptional durability and longevity in demanding water treatment applications. Its robust design, with no moving parts, contributes to trouble-free operation and lowers operating costs by minimizing maintenance requirements.
Designed for water flow rates ranging from 25 to 80 GPM, the Model 1584 is versatile for various system sizes. It features 1-1/2" Male NPT connections on both the inlet and outlet ends for straightforward integration into existing plumbing. The 1/2" hose barb suction port simplifies the connection for ozone gas input and includes a built-in check valve with a Teflon ball and C Spring to prevent backflow and ensure system integrity.
Capable of handling a maximum pressure of 120 PSI and a maximum temperature of 212°F, this Mazzei injector is a reliable choice for your ozone injection needs. Please verify the connection size matches your existing setup before ordering, as a 1" Mazzei injector is also available.
*All closeout items are final sale and returns or warranty claims will not be accepted. Please contact Client Services at (616) 795-4893 with any questions.
- Product Type: Venturi Injector (Ozone Injection)
- Model: Mazzei Venturi Injector 1584
- Application: Ozone injection into water, dissolving ozone gas into water.
- Material: Black PVDF (Kynar)
- Water Flow Rates: 25 - 80 GPM
- Max Pressure: 120 PSI
- Max Temperature: 212°F (100°C)
- Connection Size: 1-1/2" Male NPT on Both Ends (Inlet & Outlet)

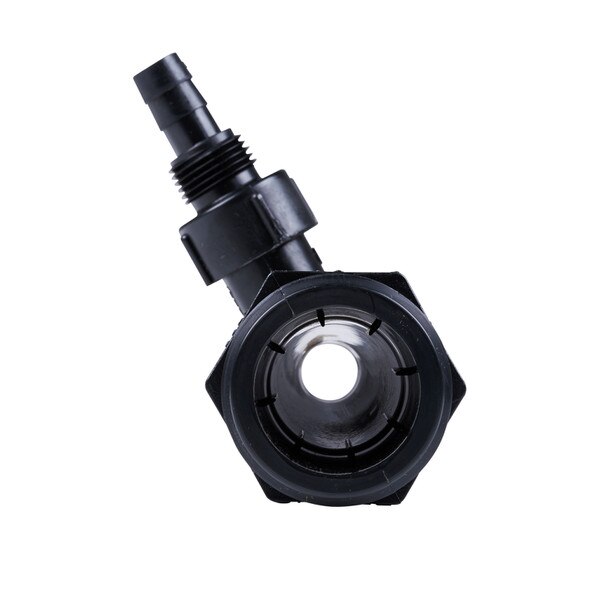

- Suction Port Barb Size: 1/2" (includes built-in check valve with Teflon ball & C Spring)
- Dimensions: 11" L x 1-7/8" W x 4-1/2" H
- Efficient Ozone Injection: Creates thousands of micro-bubbles for superior gas-to-liquid transfer.
- High Ozone Resistance: Constructed from Black PVDF (Kynar) for maximum durability.
- Maintenance-Free: No moving parts ensure trouble-free and reliable operation.
- Low Operating Costs: Efficient design contributes to reduced energy and maintenance expenses.
- Integrated Check Valve: Built-in check valve with Teflon ball and C Spring for backflow prevention.
- Wide Flow Rate Range: Suitable for water flows from 25 to 80 GPM.
- Standard Connections: 1-1/2" Male NPT connections for easy integration.
