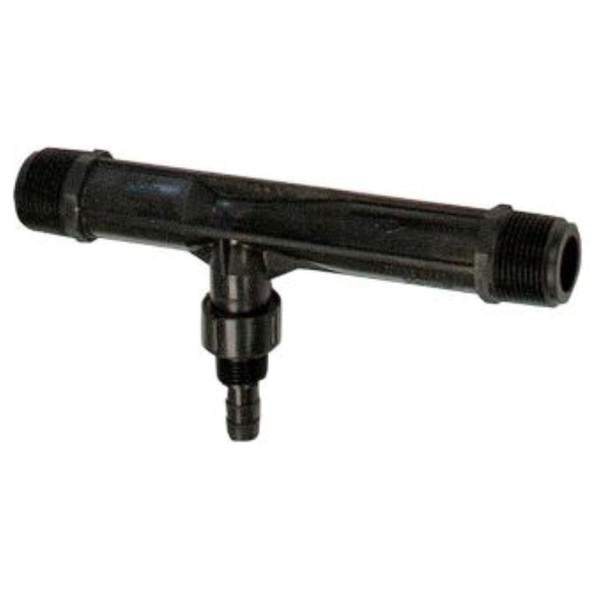

Mazzei Ozone Injector (1" MNPT, Kynar PVDF, 25-80 GPM)
The Mazzei Ozone Injector is a high-performance, specialized component crucial for efficient ozone integration in water treatment systems, particularly in the Purclean 5 micro reclaim system with an ozone generator. This injector utilizes the advanced method of directly dissolving ozone gas into water, creating thousands of micro-bubbles that significantly increase the gas's surface area for maximum contact and effectiveness.
Constructed from premium black Kynar PVDF material, this injector offers maximum ozone resistance and exceptional durability, ensuring reliable operation even in aggressive chemical environments. It features a convenient 1/2" hose barb suction port that includes a built-in check valve with a Teflon ball and C Spring, preventing backflow and ensuring system integrity.
Designed for robust performance, the injector has 1" Male NPT connections on both the inlet and outlet ends, facilitating straightforward integration into existing plumbing. With no moving parts, it offers trouble-free operation and contributes to lowering operating costs through its efficient design. It can handle water flow rates from 25 to 80 GPM, with a maximum pressure tolerance of 120 PSI and a maximum temperature of 212°F.
- Product Type: Ozone Injector
- Application: Purclean 5 Micro Reclaim Systems with Ozone Generator
- Injection Method: Dissolves ozone gas into water
- Material: Kynar PVDF
- Color: Black
- Connection Size (Inlet/Outlet): 1" Male NPT on Both Ends
- Suction Port: 1/2" Hose Barb
- Check Valve: Built-in with Teflon Ball and C Spring
- Max Pressure: 120 PSI
- Max Temperature: 212°F (100°C)
- Water Flow Rates: 25-80 GPM
- Optimized Ozone Dissolution: Creates micro-bubbles for highly efficient gas-to-water transfer.
- Extreme Ozone Resistance: Made from durable Kynar PVDF material.
- Reliable Operation: Features a built-in check valve with Teflon ball for backflow prevention.
- Low Maintenance: "Trouble-free" design with no moving parts.
- Cost-Effective: Contributes to lower operating costs due to efficient performance.
- High Flow Capacity: Supports water flow rates from 25 to 80 GPM.
- Easy Integration: 1" Male NPT connections for straightforward plumbing.
