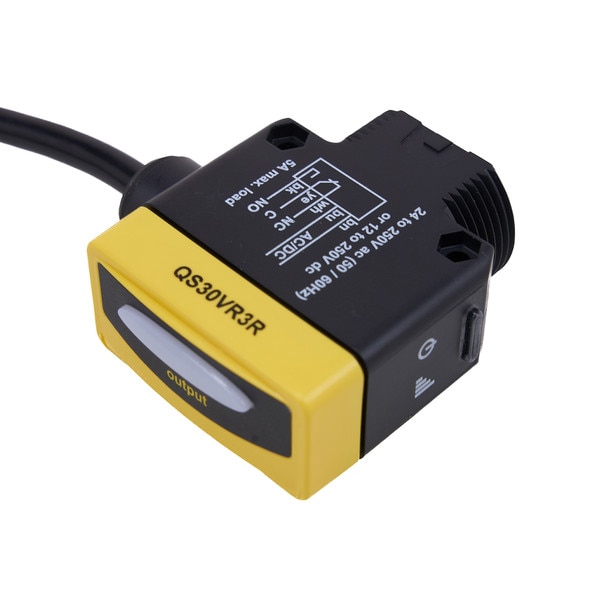

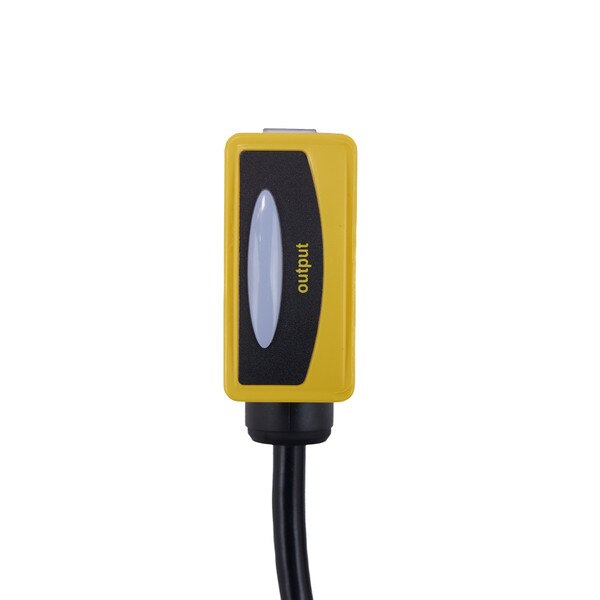

Banner QS30VR3R Long Range Sensor Receiver 6' Cable
The Banner QS30VR3R Sensor Receiver is a high-performance component engineered for reliable use in demanding industrial applications, such as pre-blast and garage door eye systems. Its robust, leakproof design and IP67 protection rating ensure it can withstand the rigors of high-pressure washdown areas. The thermoplastic housing and water-shedding acrylic lens are built to resist debris buildup, guaranteeing consistent and accurate performance.
With a powerful 60-meter sensing range and a rapid 15 ms output response time, this receiver provides quick and precise detection. Its versatility is enhanced by a wide 24-250 VAC or 12-250 VDC voltage rating. The compact design and right-angle side mount style allow for easy installation in tight spaces.
- Product Type: Photoelectric Sensor Receiver
- Brand: Banner
- Model: QS30VR3R
- Sensing Mode: Opposed Receiver
- Sensing Beam: Infrared LED
- Voltage Rating: 24-250 VAC or 12-250 VDC
- Frequency Rating: 50/60 Hz
- Operating Temp. Range: -4°F to 158°F
- Sensing Range: 60 meters
- Output Response Time: 15 ms
- Cable Length: 6'
- Housing Material: Thermoplastic
- Lens Material: Acrylic
- Protection Ratings: IP67, NEMA 4X
- Long-Range Sensing: Capable of detecting objects up to 60 meters away.
- Rugged & Durable: Features a leakproof design with IP67 and NEMA 4X ratings.
- Resists Debris: Water-shedding lens prevents buildup for reliable performance in wet areas.
- Versatile Power: Compatible with both AC and DC power supplies.
- Fast Response: 15 ms output response time ensures quick and accurate detection.
- Compact Design: Allows for easy installation with a barrel right-angle side mount.
