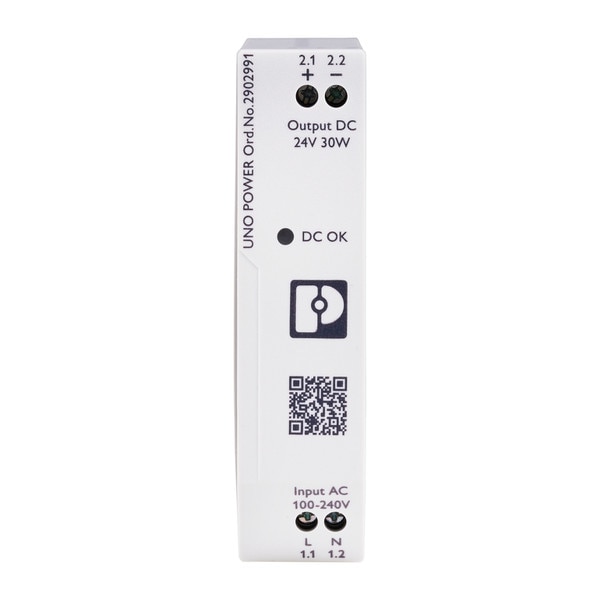

Phoenix UNO Power Supply 1.25A 30W
This 24 V power supply is used in multiple applications of the wash including in the main control center 1 application and the LPR units. This specific power supply has a output current of 1.25 A and an output power of 30 W. These power supplies have a high power density design that is ideal for use in compact control boxes. They have a high degree of efficiency and low idling losses that ensure a high level of energy efficiency when in use. Thanks to a high efficiency rating of 88%, just a small amount of electrical energy can be converted into heat energy.
- Output Current: 1.25 A
- Output Power: 30 W
- Output Voltage: 24 VDC
- # of Outputs: 1 Output
- Input Voltage: 85-264 VAC
- Operating Temp. Range: -13F-158F
- Efficiency: 88%
- Housing Material: Polycarbonate
- Dimensions: 3-5/16" X 7/8" X 3-1/2"
- DIN Rail Mounting Type
- Enclosed Configuration
- Switching Operation
- Max Energy Efficiency
- Extremely Low Idling Losses
Limited Lifetime Warranty
