Phoenix Contact PLC Output Relay (24V DC, 6A, 1 PDT)

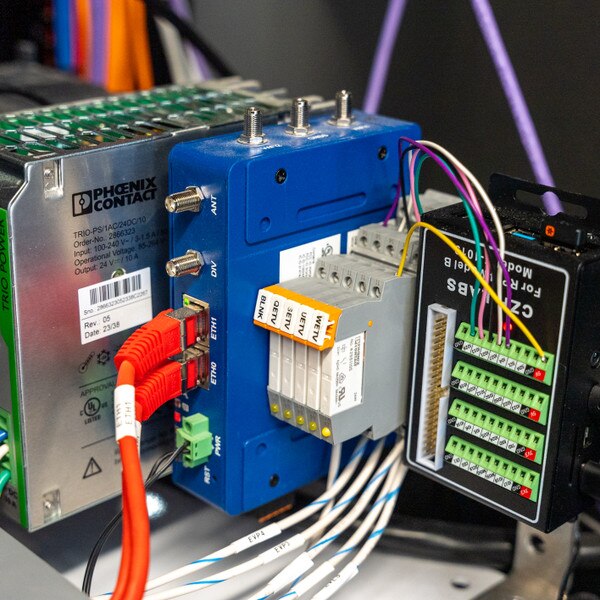

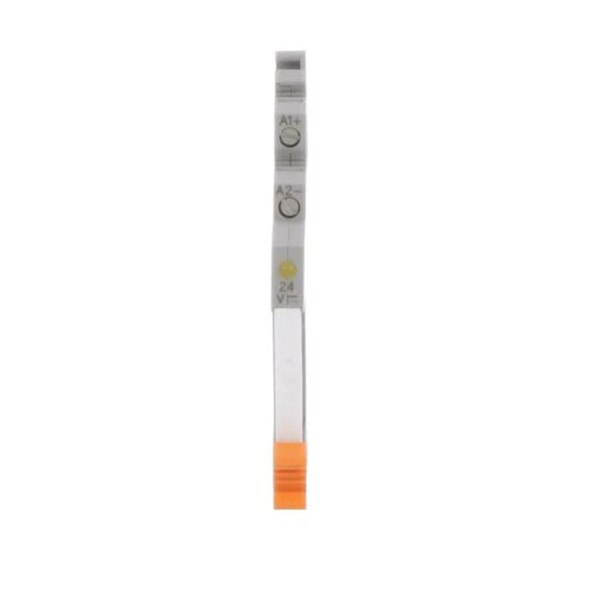

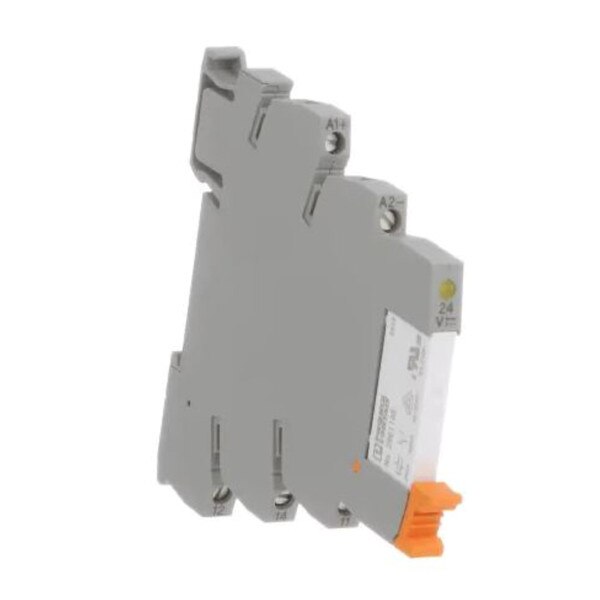

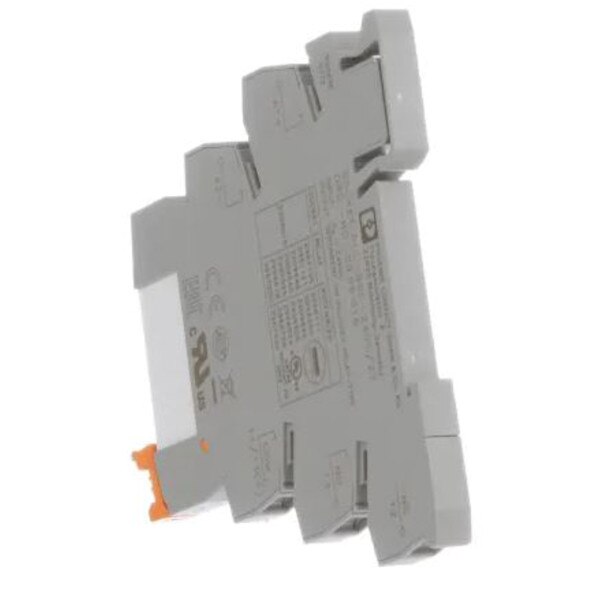

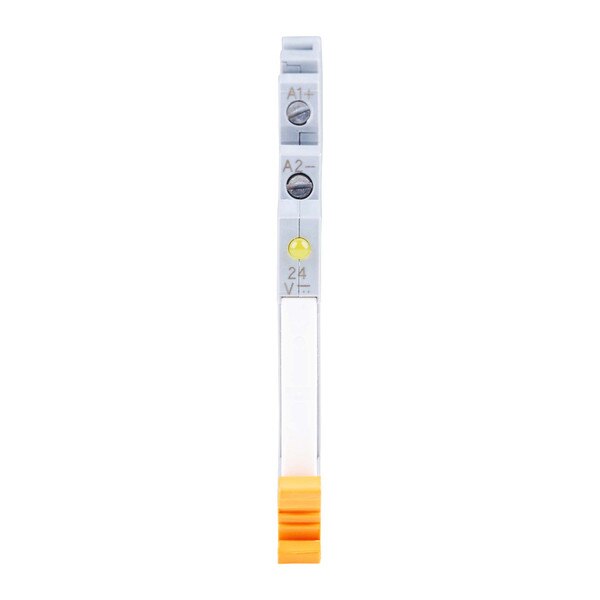

The 2966171 Phoenix Contact PLC Output Relay is a high-performance, compact, and highly reliable switching device designed for use in industrial control systems, particularly in applications such as motor control centers (like "motor control center 1") and conveyor backup starters. This relay system comprises a robust base terminal block (PLC-BSC.../21) with secure screw connections and a pluggable miniature relay with a power contact.
Operating with a nominal input voltage of 24V DC, this relay is ideal for integration into common low-voltage DC control circuits. It boasts a limiting continuous current of 6 Amperes, making it suitable for controlling various loads. The relay features a 1 PDT (Single Pole Double Throw) contact type with AgSnO contact material, allowing for flexible switching configurations (normally open and normally closed functionality from a single contact). It has a typical response time of 5 ms and a typical release time of 8 ms, ensuring rapid and precise switching.
Designed for efficiency and ease of installation, the 2966171 has a slim design (6.2 mm width) and is intended for assembly on a DIN rail (NS 35/7.5). It supports efficient connection to system cabling via an optional V8 adapter and offers functional plug-in bridges for easy potential distribution. Key safety features include safe isolation according to DIN EN 50178 between the coil and contact, integrated input and interference suppression circuits, and reverse polarity protection.
The relay operates reliably across a wide ambient temperature range of -40°C to 60°C (-40°F to 140°F) and maintains performance with a mechanical service life of 2 x 10^7 cycles. It is extensively certified (UL Listed, CUL, IEC, EN, etc.), ensuring its compliance with global safety and performance standards.
- Product Type: PLC Output Relay (Relay Module)
- Manufacturer Part Number (MPN): 2966171 (Phoenix Contact PLC-RSC- 24DC/21)
- Input Voltage: 24 V DC (Nominal)
- Typical Input Current at UN: 9 mA
- Typical Response Time: 5 ms
- Typical Release Time: 8 ms
- Continuous Current (Limiting): 6 A
- Contact Type: 1 PDT (Single Pole Double Throw)
- Type of Switch Contact: Single contact
- Contact Material: AgSnO
- Maximum Switching Voltage: 250 V AC/DC
- Minimum Switching Voltage: 5 V (at 100 mA)
- Minimum Switching Current: 10 mA (at 12 V)
- Maximum Inrush Current: 10 A (4 s)
- Interrupting Rating (Ohmic Load):
- Max. 140 W (at 24 V DC)
- 1500 VA (for 250 V AC)
- Ambient Temperature (Operation): -40°C ... 60°C (-40°F ... 140°F)
- Ambient Temperature (Storage/Transport): -40°C ... 85°C (-40°F ... 185°F)
- Dimensions (Approximate):
- Width: 6.2 mm (~0.24 inches)
- Height: 80 mm (~3.15 inches)
- Depth: 94 mm (~3.70 inches)
- Net Weight per Piece: 31.060 g
- Connection Method: Screw connection (M3 screw thread, 0.14 mm² - 2.5 mm² / AWG 26 - 14)
- Mounting: DIN rail NS 35/7.5 (In rows with zero spacing)
- Protective Circuit: Reverse polarity protection, Free-wheeling diode, Damping diode
- Operating Voltage Display: Yellow LED
- Mechanical Service Life: 2 x 10^7 cycles
- Flammability Rating: V0 according to UL 94
- Standards/Regulations: IEC 60664, EN 50178, IEC 62103, UL Listed, CUL
- Slim Design: Compact 6.2 mm width saves space on DIN rails.
- 24V DC Input: Compatible with standard low-voltage DC control systems.
- 6A Continuous Current: Suitable for controlling a variety of loads.
- 1 PDT Contact Type: Offers versatile switching capabilities.
- Screw Termination: Ensures secure and reliable electrical connections.
- DIN Rail Mountable: Designed for quick and easy assembly on NS 35/7.5 DIN rails.
- Integrated Protection: Includes reverse polarity protection and interference suppression.
- High Reliability: Features long mechanical service life and safe isolation between coil and contact.
- Global Compliance: Certified by UL, CUL, and various international standards.
- Modular Design: Pluggable miniature relay for easy replacement and functional plug-in bridges for efficient wiring.
