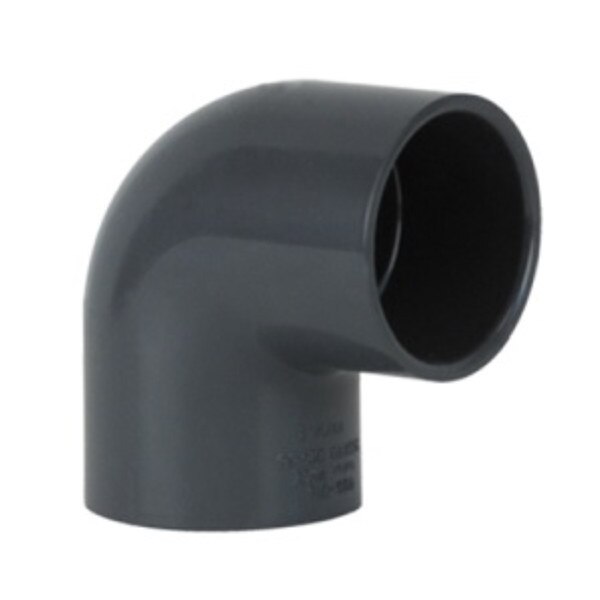

1" Female Socket X Socket PVC 90-degree Elbow

The PURCLEAN-3806S010 (Spears 806-010) is a molded, high-pressure PVC pipe fitting. Its Schedule 80/XH rating signifies that it has thicker walls than common Schedule 40 fittings, allowing it to handle higher internal pressure (up to 630 psi at ambient temperature). This robustness makes it ideal for industrial and commercial fluid systems, such as those found in Purclean operations.

Construction and Connections

• Fitting Type: 90-degree Elbow (Standard).
• Nominal Size: 1 inch on both ends.
• Material: PVC Type I, Cell Classification 12454 (PVC), conforming to ASTM D1784. The fitting is Gray.
• Schedule Rating: SCH 80/XH.
• Connections: Socket x Socket (SxS). Both ends are female sockets designed for permanent, solvent-weld connections using PVC cement.
• Pressure Rating: Maximum Operating Pressure of 630 psi (at 73°F) is cited in the detailed specs, indicating high pressure capability.
• Standards: Certified for potable water service by NSF International and manufactured in compliance with ASTM D2467.

Application

This elbow is used in the high-pressure, chemical-resistant plumbing necessary for water treatment systems, like those supplied by Purclean, where durability and a secure seal are non-negotiable.
