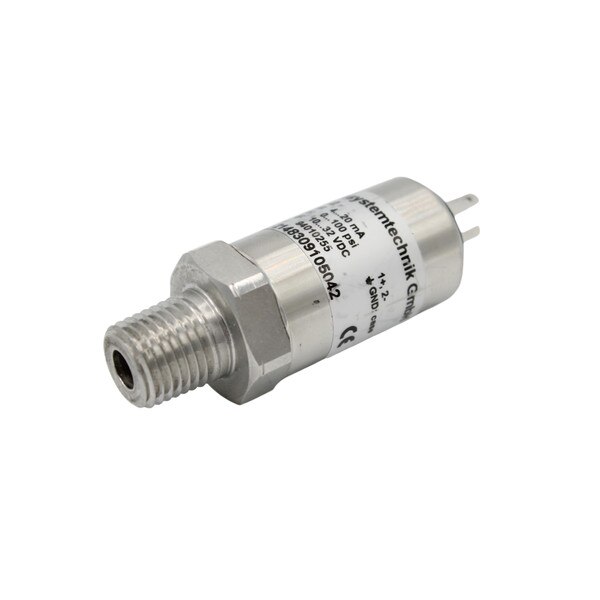

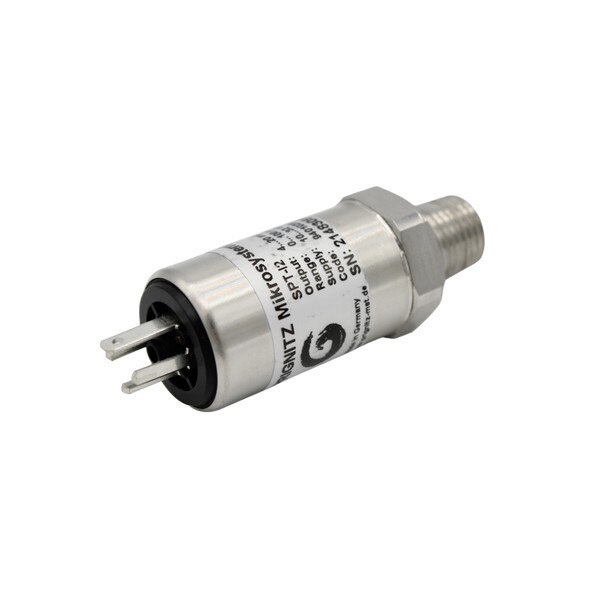

1/4" NPT 0 - 100 psi Pressure Transducer
SKU: P-WAT-2440
This Pressure Transducer is a critical electronic sensor used for monitoring low-pressure points within the Tommy Reverse Osmosis (RO) System, specifically designated as PRS1 and PRS2 monitoring points. It is often used to measure feed water pressure or the pressure of pre-treatment systems (like carbon or sediment filters) to ensure the RO system has adequate, clean water supply.
Key Technical Features:
- Measurement Range: Specifically designed for low-pressure monitoring, covering a range of 0 to 100 PSI. This is crucial for verifying minimum operating pressures and detecting filter clogging or inadequate supply.
- Output Signal: Provides a linear 4−20 mA current loop output, the standard for industrial controls. This signal is sent back to the control system (PLC) for real-time data logging, automation, and triggering alarms.
- Connections:
- Process Connection: Uses a 1/4" NPT threaded connection for secure integration into the plumbing.

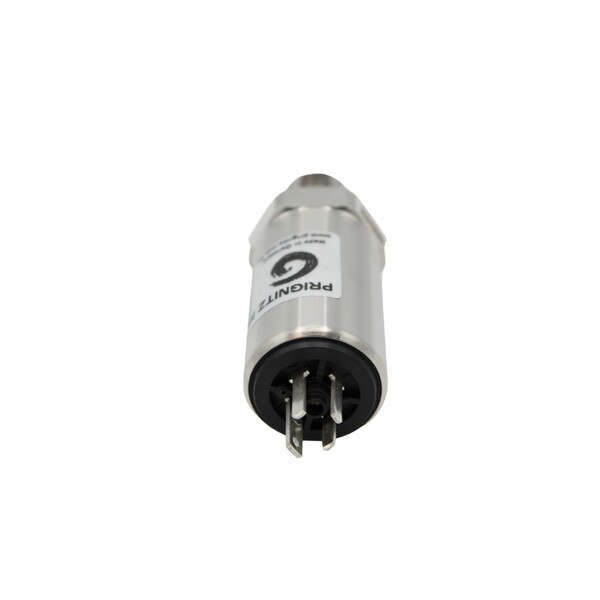

- Electrical Connection: Features a standard DIN connection for easy and reliable electrical hook-up.
- Power: Requires a DC voltage supply between 10 and 32 VDC.
- Durability: The sensor is rated for reliable performance across a wide operating temperature range of −4F to 185F.
- Manufacturer Part No. (Example): 94010255 (SPT-I2 100psi)
- Product Type: Pressure Transducer (PRS1, PRS2)
- Application: Tommy RO System (Low-Pressure Monitoring)
- Pressure Range: 0−100 PSI
- Process Connection: 1/4" NPT
- Electrical Connection: DIN Connection
- Output Signal: 4−20 mA (Standard Current Loop)
- Supply Voltage: 10−32 VDC
- Operating Temp. Range: −4F−185F
- Dimensions (Approximate): 2−3/4" (L) x 1" (W) x 2−3/4" (H)
- Low-Pressure Monitoring: Ideal for measuring feed pressure and pre-filter status in RO systems.
- Standard Industrial Output: 4−20 mA signal ensures universal compatibility with industrial controllers.
- Robust & Accurate: Electronic sensing provides precise feedback for system automation and diagnostics.
- Easy Installation: 1/4" NPT and DIN connections facilitate quick replacement and wiring.
