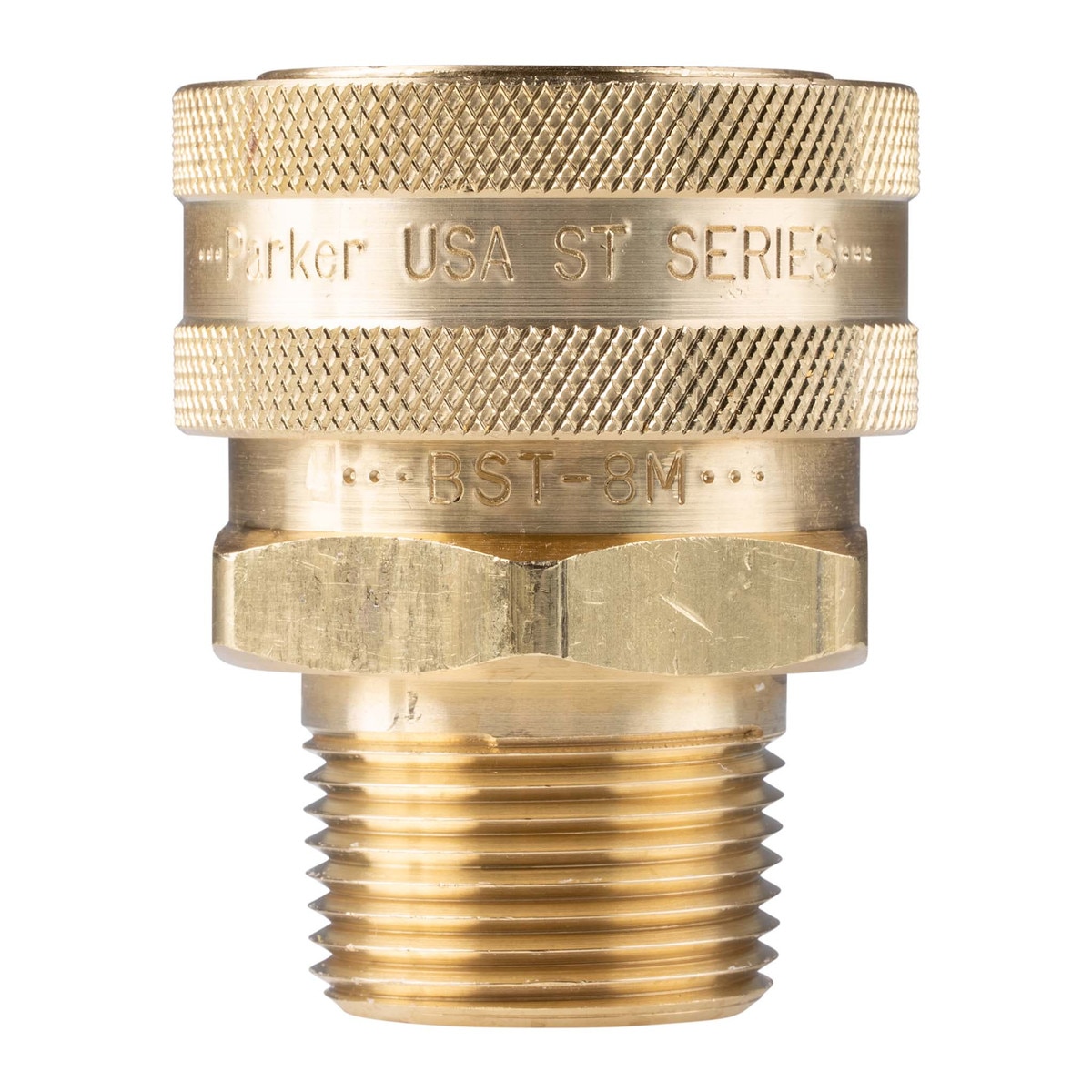

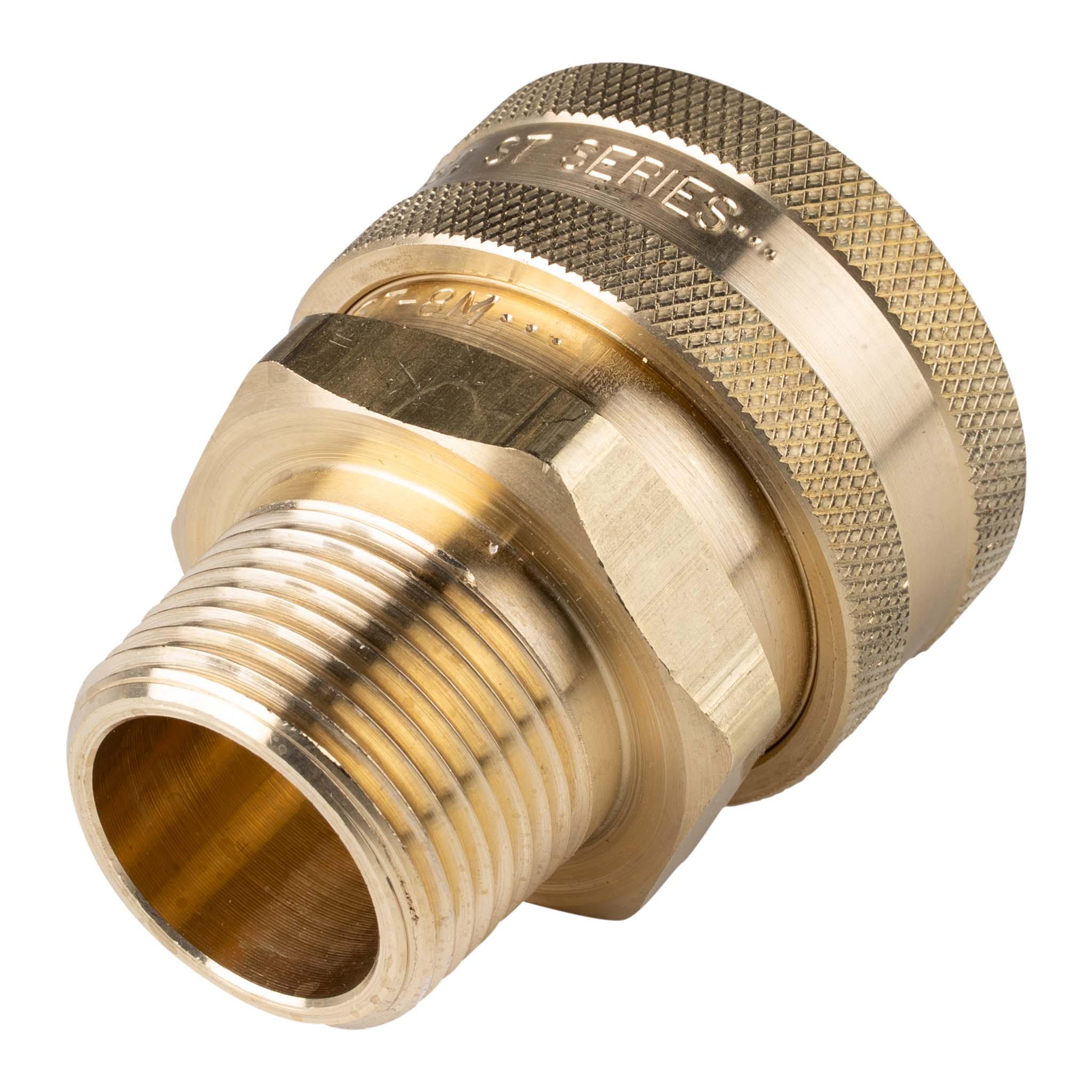

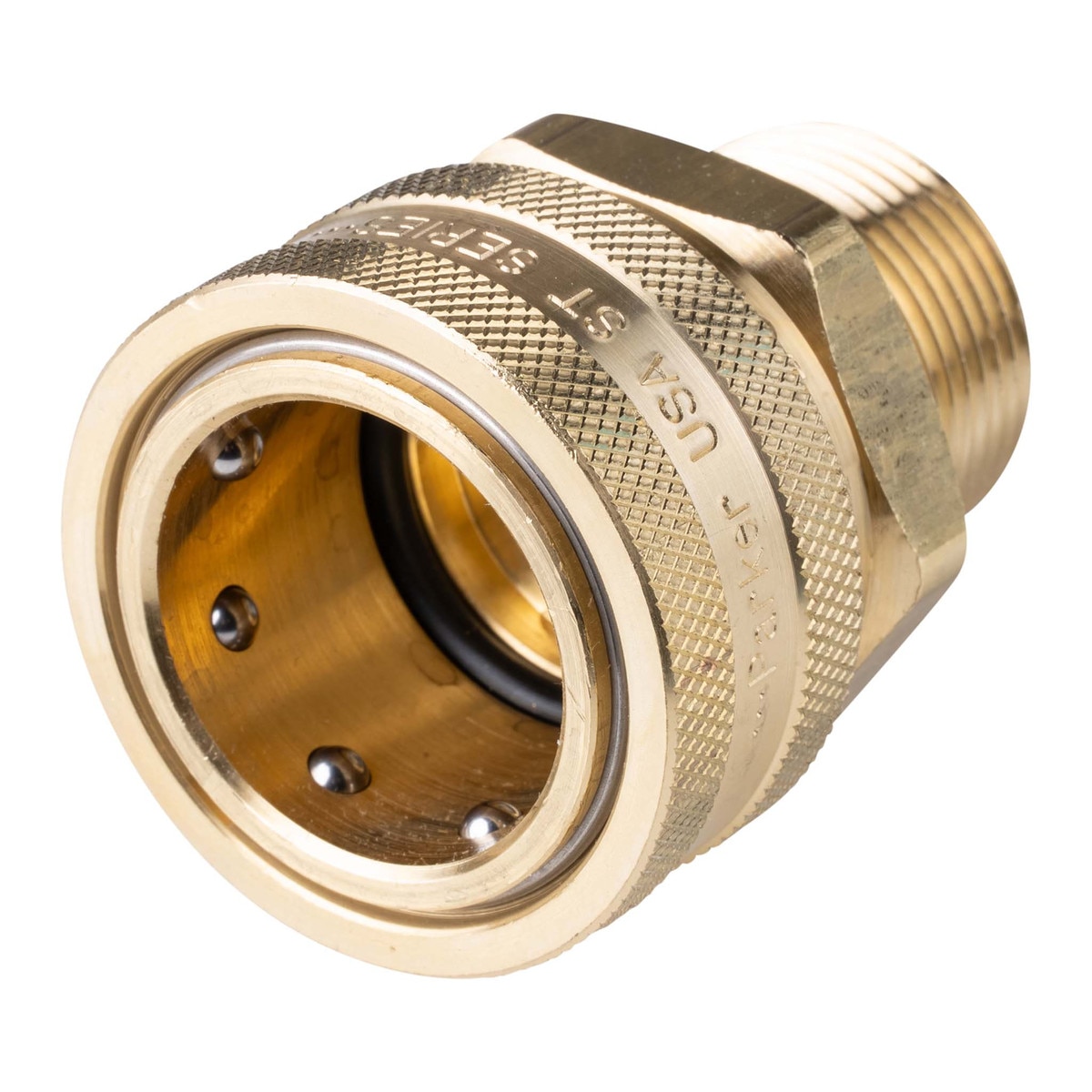

1" Quick Connect Female X Male NPT Brass Hose Coupler
Upgrade your fluid management setup with this 1" Brass Quick Connect Coupler. Engineered for durability and high-flow efficiency, this set features a Female NPT to Male NPT configuration, allowing for rapid attachment and detachment of heavy-duty hoses without the need for tools. Perfect for maintenance-heavy environments like Tommy’s Car Wash Systems, where uptime is everything.
SKU: P-WAT-2429
This unvalved hose coupler is used in the All-In-One Pump Station. The coupler accepts coupling plugs (nipple or male ends) for use in hydraulics and fluid transfer. This specific coupler has a 1" Quick Connect Female connection on one end and a 1" Male npt connection on the other end. It is part of the ST Series of couplers. It is made of brass material and is designed as a multi-purpose high flow coupler with many uses.
Key features and benefits include:
- Rapid Connection: Precision-engineered locking mechanism allows for one-handed operation to snap hoses into place instantly.
- Heavy-Duty Brass Construction: Provides superior resistance to rust and chemical corrosion compared to aluminum or plastic alternatives.
- Leak-Proof Seal: High-quality internal O-rings ensure a tight, drip-free seal even under fluctuating pressure.
- High Flow Rate: Full-port 1" design prevents flow restriction, keeping your wash equipment running at peak performance.
- NPT Compatibility: Standard National Pipe Thread (NPT) ensures a seamless fit with existing plumbing, valves, and manifolds.
- End 1: 1" Quick Connect Female
- End 2: 1" Male NPT
- Operating Temp. Range: -40F-250F
- Max Pressure: 1,200 PSI
- Flow Rate: 50 Gal/min
- Material: Brass
- Seal Material: Nitrile
- Dimensions: 2-1/2" X 2"
- Manual Sleeve Type
- Unvalved
- Locking Balls Lock Type
- Straight Through Flow Path
- High Flow, Low Pressure Drop
