Bay Wash Down CAT Pump for 7.5HP Motor

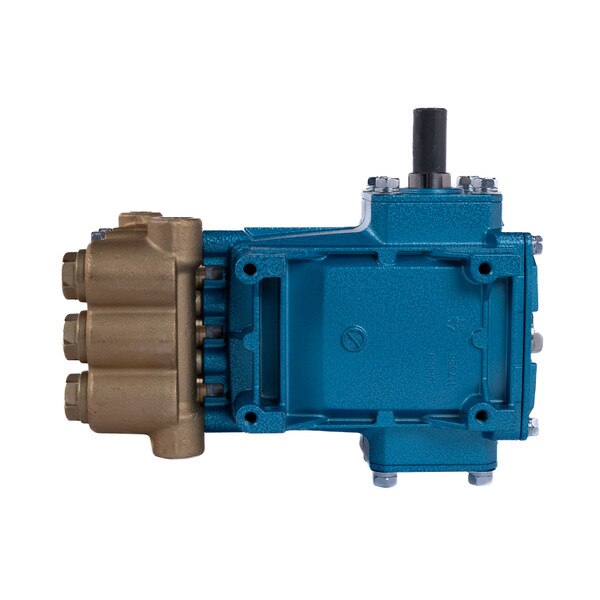

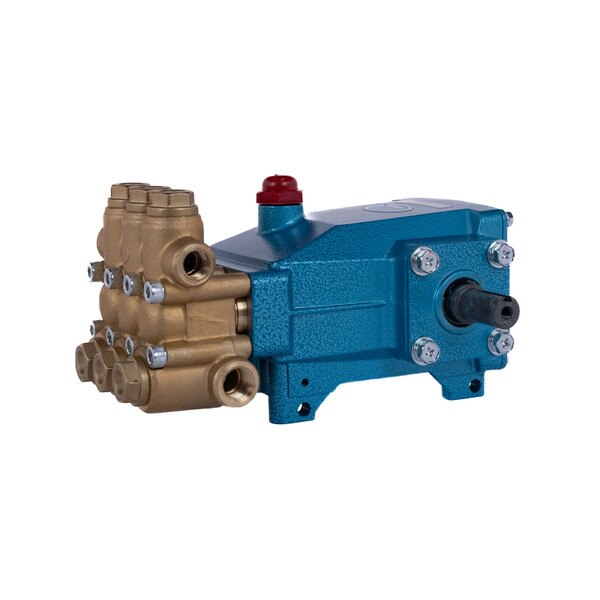

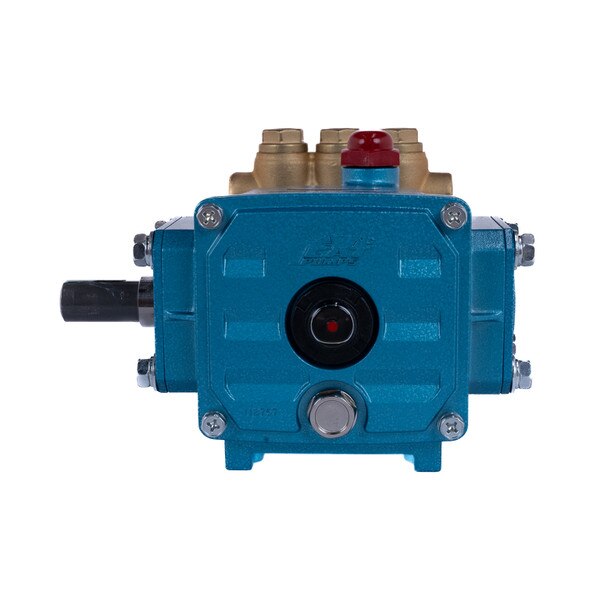

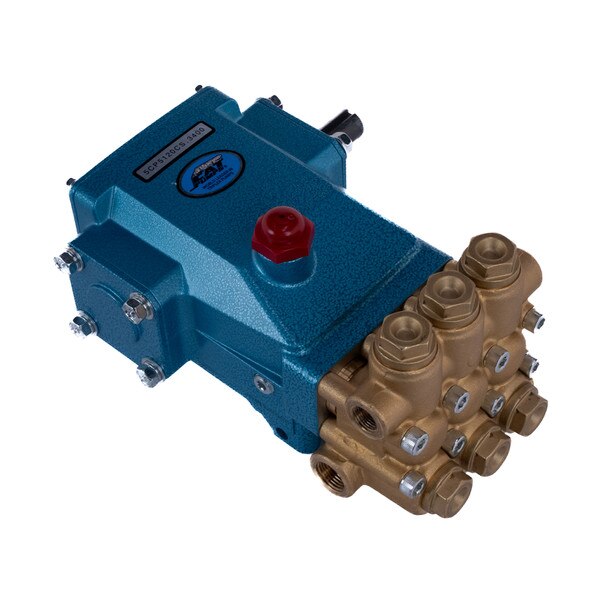

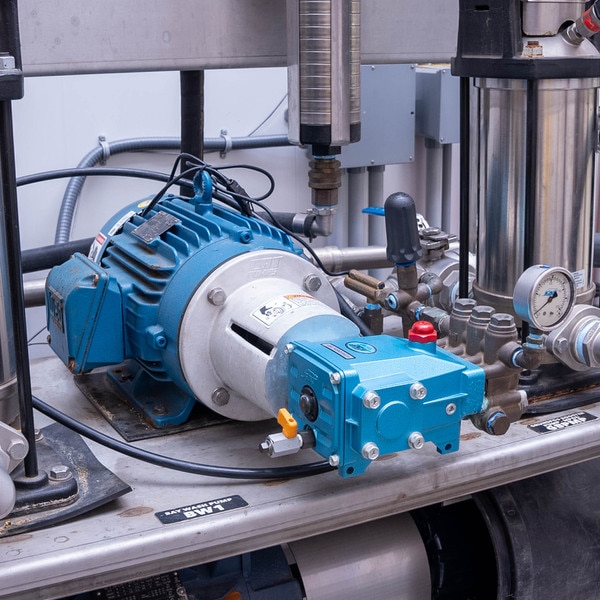

The Bay Wash Down CAT Pump (5CP5120CS.3400) is the powerhouse behind the high-pressure cleaning system in your car wash bays. This robust triplex plunger pump is specifically engineered for commercial-grade performance and long-term durability. It is designed to be paired with a 7.5 HP motor and is a critical component of the Bay Wash Down Pump Station, which is mounted on the All-In-One Pump Station.

This pump's primary function is to deliver high-pressure water to the Bay Wash Gun, which is used for cleaning and maintenance of the wash tunnel. Its superior design features a right-sided shaft, a forged brass manifold for excellent corrosion resistance, and high-grade 304 stainless steel valve assemblies. The use of solid ceramic plungers ensures reliable performance and resistance to wear, making it a dependable choice for high-cycle applications.

The pump's impressive performance metrics include a maximum flow rate of 5 GPM, a pressure range of 100-3,000 PSI, and a maximum operating temperature of up to 200°F with the STHT seal configuration. The triplex design provides a smooth and consistent flow, while a maximum speed of 1,415 RPM ensures efficient operation.

With a 1/2" inlet size and a 3/8" outlet size, it is compatible with standard plumbing fixtures for a secure and straightforward installation. The pump's durable construction and positive displacement design make it an ideal choice for the demanding environment of a car wash.
