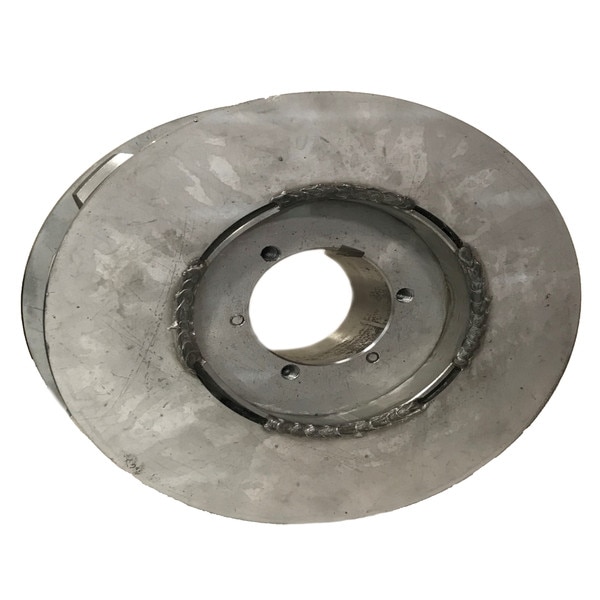

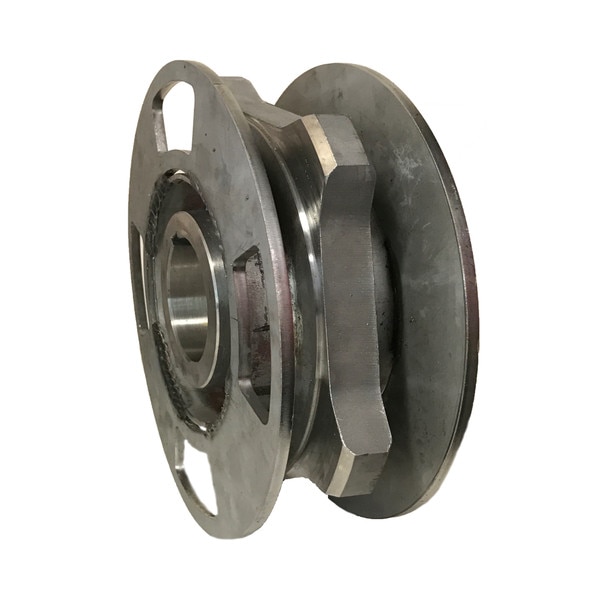

5-Tooth SS Sprocket Assembly w/ Chain Guard (X348 Chain)

This stainless steel sprocket assembly is a core component of the car wash conveyor drive system. Located in the drive section, its primary function is to engage the heavy-duty X348 conveyor chain, transmitting power from the motor/gearbox to move the vehicle. Its construction from Stainless Steel is essential for resisting corrosion and abrasion in the constant presence of water, soap, and dirt.

Key features and benefits include:

• Conveyor Drive Power: The 5-tooth design ensures reliable engagement with the X348 conveyor chain, providing the necessary leverage for the drive section.
• Integrated Chain Guard: Includes a permanently attached Chain Guard Assembly to enhance safety and prevent foreign objects from interfering with the chain engagement.
• Corrosion Resistance: Constructed entirely from robust Stainless Steel, guaranteeing maximum longevity and minimal maintenance in harsh, wet car wash environments.
• Bushing Ready: Designed for a secure, non-slip fit onto the drive shaft using a Split Taper Bushing. Note: This assembly requires a separate 2-1/4" Split Taper Bushing for installation (not included).
• Mounting: Features three 1/4" threaded mounting holes on the inside diameter for secure installation.
• Dimensions: Overall size is approximately 10-1/8" x 2-5/8", with an inside diameter of 2-3/4" for the taper bushing housing.
