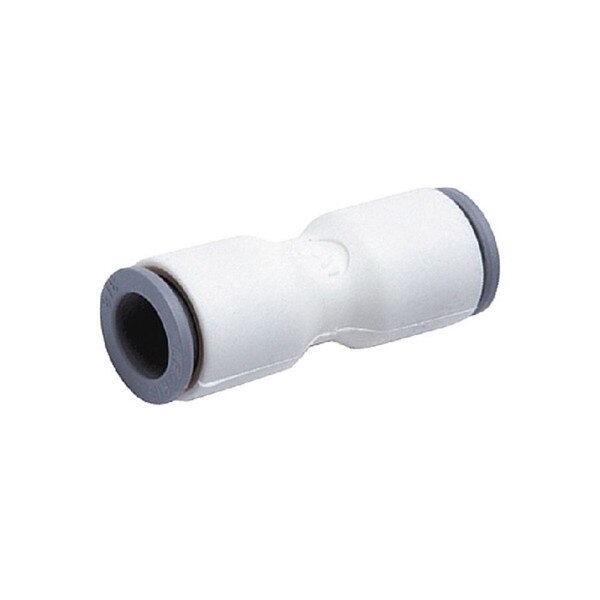

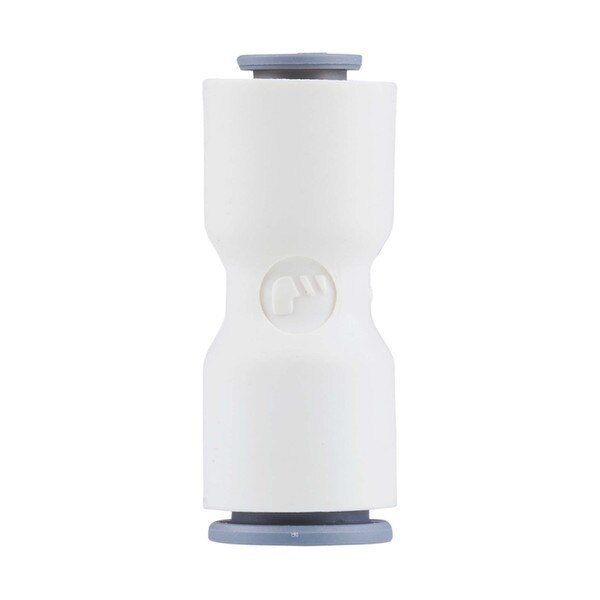

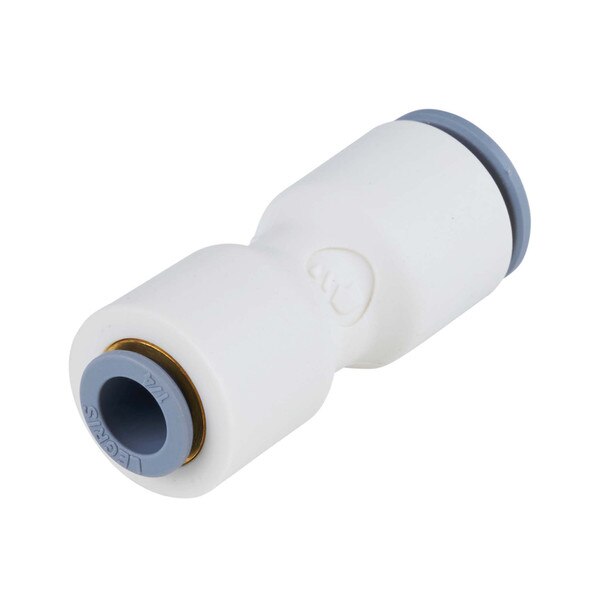

3/8" to 1/4" Quick Connect Reducer Union Connector

The 3/8" to 1/4" Quick Connect Reducer Union Connector is a versatile and reliable fitting designed for fluid and gas transfer applications. As part of the Parker/Legris LIQUIfit® series, this straight reducer provides a secure and efficient way to transition between different tube sizes without the need for tools or threads.

This fitting features a push-to-connect mechanism on both ends, allowing for the fast and easy connection of a 3/8" tube on one side and a 1/4" tube on the other. The advanced sealing technology, including a stainless steel gripping ring and EPDM seal, ensures a perfect and leak-proof seal. The design is optimized for full, unobstructed flow, preventing fluid contamination and simplifying installation.

Constructed from a bio-based polymer produced from renewable plants, the P-AIR-2058 is an environmentally conscious choice. It is also Bisphenol & phthalate-free and compliant with a wide range of regulations, including FDA, NSF 51 & 61, and ROHS, making it safe for use with potable water, food, and beverages.

The fitting is highly durable, with a maximum operating pressure of 232 psi (16 bar) and an operating temperature range of 14°F to 203°F (-10°C to 95°C). It is a versatile component suitable for applications such as water purification, beverage dispensing, and medical equipment.
