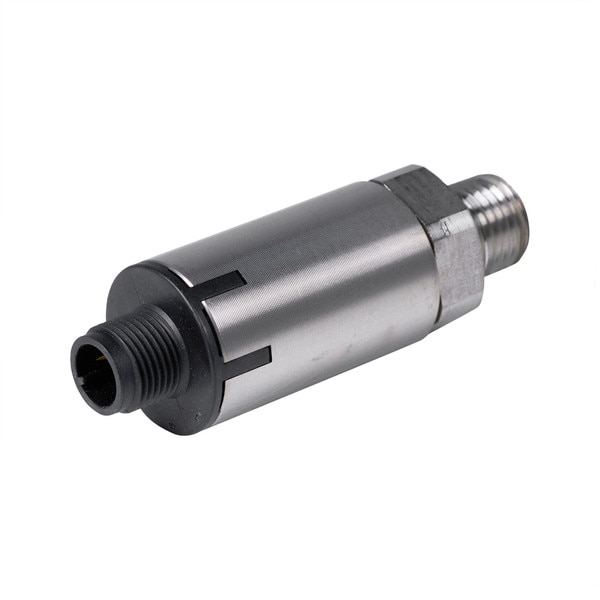

NAUT XMLG100D23 Nautilus Pressure Transducers

(0) No Reviews yet
$214.71
SKU: CCS-XMLG100D23-HP
Description: NAUT XMLG100D23 Nautilus Pressure Transducers

This item is IN STOCK

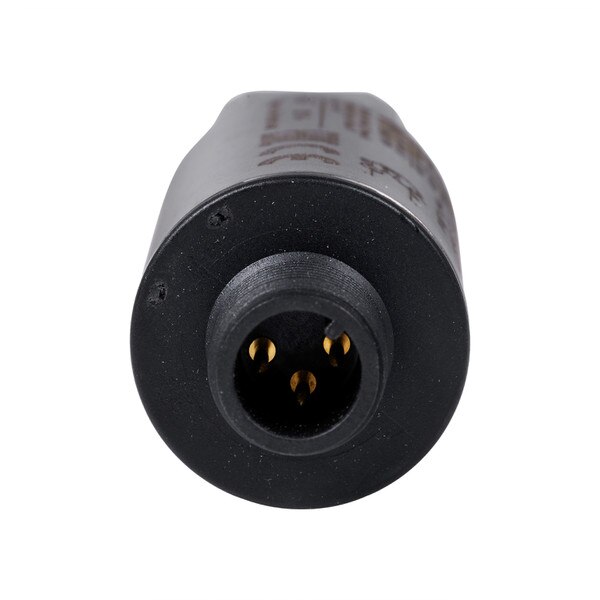

Schneider Electric / Square D Pressure transmitter operates at a voltage rating of 12/24 VDC and has impulse withstand voltage of 0.5 kilo-Volts. Sensor of size 100 bar has 1/4 Inch-18 NPT male connection type. It has M12 male connector for electrical connections. It is short-circuit and reverse polarity protected. It uses current less than 20 milli-Amps. It has operating temperature of -15 to 85 deg C. It has resistance to electrostatic discharge of 15 kilo-Volts in air and 8 kilo-Volts on contact. It has vibration resistance of 20 GN and shock resistance of 25 GN. It withstands surge voltage of 1 kilo-Volt/500 kilo-Volts. Sensor is resistant to electromagnetic field at 200 Volts/meter and resistant to magnetic field at 30 Amps/meter. It is IP66/IP67 rated for use in hazardous location. Transmitter is UL listed and CSA certified.
  • Catalog Description : Pressure Switch Analog (4 to 20mA), 0 to 1450 psi (0 to 100 bar), 1/4 NPT (male), M12, Sold Individually
  • Catalog Number : XMLG100D23
  • Conduit Connection : 1/4 Inch MNPT
  • Degree Of Protection : IP66, IP67
  • EU RoHS Indicator : Y
  • Enclosure : NEMA 4
  • GTIN : 00785901816485
  • Gross Weight : 0.300
  • Height : 5.8000
  • Length : 15.7000
  • Width : 11.7000
  • Operating Temperature : -15 degrees C
  • Output Voltage : 4 - 20 Milli-Amp
  • Process Connection : M12
  • Process Fluid : Hydraulic Oils, Air, Fresh Water, Sea Water and Corrosive Fluids
  • Standards : UL Listed File E164865, CSA Certified File LR44087
  • System Pressure : 0 - 1450 psi
  • Temperature Rating : -15 to 85 deg C
http://shop.tommycarwash.com/site/PDF-AUTO/CCS-XMLG100D23-HP.pdf
