  • Modicon M340 / X80 BMXXBP0800 8-Slot Backplane - Flexible Mounting, Robust Design

Modicon M340 / X80 BMXXBP0800 8-Slot Backplane - Flexible Mounting, Robust Design

(0)No Reviews yet
$327.15
SKU: CCS-BMXXBP0800

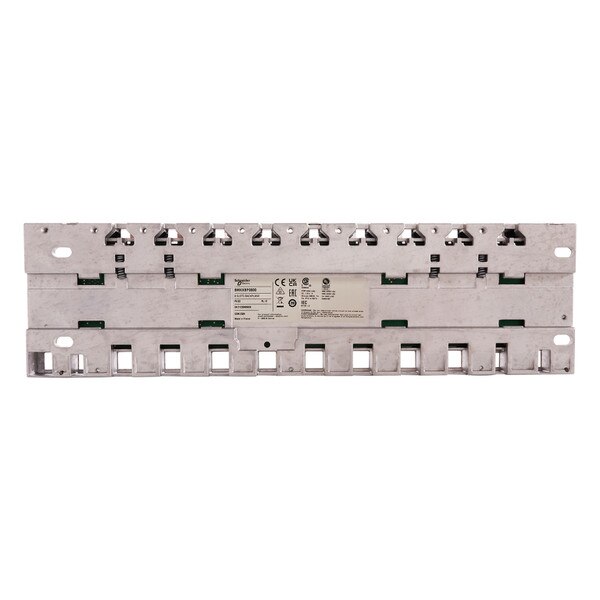

Fundamental component for your Modicon M340 Programmable Automation Controller (PAC) system, serving as an 8-slot backplane within the Modicon X80 range. This high-quality backplane provides the necessary infrastructure for connecting the processor (BMXP34 series), power supply (BMXCPS series), I/O modules, and specific application modules, forming a cohesive and reliable control system.


Designed for installation flexibility, it supports both DIN rail mounting (35 mm symmetrical) and panel mounting (via 4 M4/M5/M6 screws), making it adaptable to various cabinet configurations. The backplane features a robust design with a power consumption of 2.21 W and an electrical connection for expansion modules (XBE connector).


With an IP20 degree of protection and a wide operating temperature range of 32-140°F (0-60°C), this backplane is built for demanding industrial environments. It holds numerous global certifications, including UL, CSA, CE, RCM, EAC, UKCA, and Merchant Navy, ensuring compliance with international safety and quality standards. Please note the California Proposition 65 warning regarding potential exposure to lead and lead compounds.

  • Product Type: Backplane
  • Range of Product: Modicon X80 (for Modicon M340 PAC)
  • Number of Slots: 8 (Bus X)
  • Product Compatibility: BMXP34 processor, BMXCPS power supply, I/O modules, specific application modules
  • Power Consumption: 2.21 W
  • Electrical Connection: 1 connector (XBE) for expansion module
  • Fixing Mode:
    • By 4 M4/M5/M6 screws (panel mounting)
    • By 4 M4/M5/M6 screws (mounting plate)
    • By clips on 35 mm symmetrical DIN rail
  • Height: 4.08 in (103.7 mm)
  • Width: 14.7 in (372.8 mm)
  • Depth: 0.7 in (19 mm)
  • Net Weight: 0.95 kg (2.09 lbs)
  • Conformal Coating: No
  • IP Degree of Protection: IP20
  • Operating Temperature: 32…140 °F (0…60 °C)
  • Relative Humidity: 10…95 % without condensation
  • Directives Compliance: 2014/35/EU (Low Voltage), 2014/30/EU (EMC)
  • Certifications: CE, UL, CSA, RCM, EAC, UKCA, Merchant Navy
  • Standards: EN/IEC 61131-2, EN/IEC 61010-2-201, UL 61010-2-201, CSA C22.2 No 61010-2-201, IACS E10, EN/IEC 61000-6-5, EN/IEC 61850-3
  • 8-Slot Capacity: Provides ample space for integrating various Modicon M340 PAC modules.
  • High Compatibility: Designed for seamless connection with BMXP34 processors, BMXCPS power supplies, and I/O/application modules.
  • Flexible Mounting Options: Supports both DIN rail and panel mounting for versatile installation in control cabinets.
  • Robust & Durable: Built to withstand industrial environments with IP20 protection and a wide operating temperature range.
  • Globally Certified: Adheres to numerous international safety and quality standards (UL, CSA, CE, etc.), ensuring reliable performance worldwide.
  • Compact Design: Efficient use of space while providing essential module connectivity.
