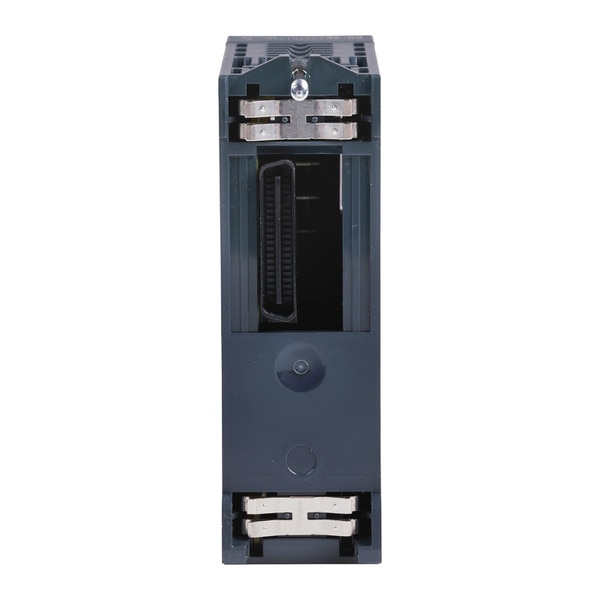

Modicon X80 BMXDDO1602 Discrete Output Module - 16 Transistor Outputs, 24VDC Positive
High-performance Modicon X80 discrete output module, providing 16 transistor outputs designed for reliable control in diverse industrial automation applications. This module delivers 24VDC positive logic output, with a specified output voltage range of 19-30 VDC and a discrete output current of 0.5 A per channel. Each channel can handle a maximum current of 0.625 A, with the entire module supporting up to 10 A.
Engineered for durability and safety, it features comprehensive protection types including external fuse reverse polarity protection, short-circuit protection, overload protection (with electronic circuit breaker and current limiter), and overvoltage protection (with transil diode). The module boasts a fast response time of 1.2 ms and supports paralleling of up to 2 outputs for increased capacity. It maintains high insulation resistance (> 10 MOhm at 500 VDC) and has a power dissipation of 4 W, contributing to efficient system operation.
The BMXDDO1602 comes equipped with various status LEDs: one green LED for module operating (RUN), one green LED per channel for diagnostic, one red LED for module error (ERR), and one red LED for module I/O, providing clear operational feedback. It features an IP20 degree of protection and is built to withstand industrial environments, with an operating temperature range of 32-140°F (0-60°C).
This module complies with key directives (2014/35/EU - low voltage, 2014/30/EU - electromagnetic compatibility) and boasts robust resistance to vibration (3 gn) and shock (30 gn). Weighing approximately 0.12 kg (0.26 lb), it is a compact and reliable solution for your Modicon X80 PAC system. Please note the California Proposition 65 warning regarding potential exposure to lead and lead compounds.
- Product Type: Discrete Output Module
- Range of Product: Modicon X80
- Number of Outputs: 16 (IEC 61131-2 compliant)
- Output Type: Solid State, Transistor
- Output Logic: Positive
- Output Voltage: 24 VDC (19...30 VDC range)
- Discrete Output Current: 0.5 A
- Max Current per Module: 10 A
- Response Time: 1.2 ms
- Power Dissipation: 4 W
- Typical Current Consumption: 79 mA @ 3.3 V DC
- Protection Type: External fuse reverse polarity, Short-circuit,
- Overload (electronic circuit breaker), Overvoltage (transil diode)
- Paralleling of Outputs: Yes (2 maximum)
- Status LEDs: RUN (Green), Channel Diagnostic (Green per channel), Module Error (Red), Module I/O (Red)
- Net Weight: 0.12 kg (approx. 0.26 lb)
- IP Degree of Protection: IP20
- Operating Temperature: 32…140 °F (0…60 °C)
- Certifications: UL, CSA, CE, RoHS, GOST, BV, GL, RMRS, ABS
- Environmental: Packaging with recycled cardboard, no single-use plastic, RoHS compliant.
- High-Density Control: Provides 16 transistor outputs for extensive device activation and control.
- Reliable 24VDC Positive Logic: Ensures consistent and accurate signal transmission to connected components.
- Comprehensive Circuit Protection: Built-in safeguards against short-circuit, overload, overvoltage, and reverse polarity enhance system safety and module longevity.
- Fast Response Time: Quick 1.2 ms response for efficient and timely operation of controlled devices.
- Robust Diagnostic Feedback: Dedicated LEDs for run status, channel diagnostics, and error indication simplify troubleshooting.
- Versatile Application: Supports paralleling of outputs for increased current capacity where needed.
- Globally Certified: Adheres to major international safety and quality standards, making it suitable for diverse industrial environments worldwide.
