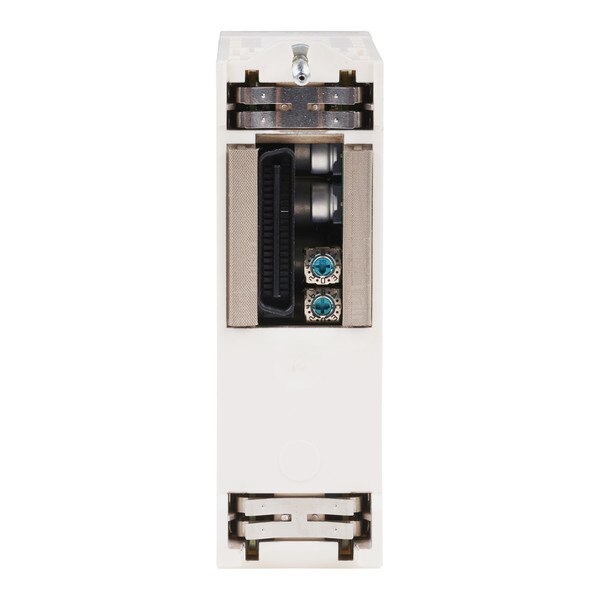

Modicon M340 BMXNOE0100 Ethernet TCP/IP Network Module - RJ45, 10/100 Mbps
Modicon M340 Ethernet TCP/IP Network Module designed to integrate your Modicon M340 Programmable Automation Controller (PAC) system into an Ethernet network. This module is part of the Modicon M340 automation platform and features a robust, compact design with innovative technology, making it suitable for the controls section of car wash systems and various industrial applications.
It provides a single RJ45 10/100 Mbit/s twisted pair connection for high-speed communication. The module offers a wide range of integrated functions and services, including bandwidth management, FDR server, rack viewer, SNMP network administration, global data, I/O scanning, and Modbus TCP messaging. It also includes a configurable web server for remote access and management. This module comes with a supplied flash memory card (BMXRWSC016M) for application saving and activating the standard web server.
The BMXNOE0100 module is designed for internal power supply via the rack and provides local signaling LEDs for Ethernet activity, processor running status, Ethernet network status, data rate, and memory card fault. It boasts an IP20 protection rating and is certified for global compliance, including CE, UL Listed, and adherence to various directives (2014/35/EU, 2014/30/EU), ensuring its reliability and safety in industrial environments.
- Product Type: Ethernet TCP/IP Network Module
- Range of Product: Modicon M340 Automation Platform
- Concept: Transparent Ready
- Connection Type: Ethernet TCP/IP RJ45, 10/100 Mbit/s (1 twisted pair, Transparent Ready Class B30)
- Voltage Supply: Internal power supply via rack (typical 24 VDC, 90 mA consumption as per user input)
- Protective Treatment: TC
- Communication Services: Bandwidth management, Data Editor (via PC terminal), FDR server, Rack Viewer, SNMP network administrator, Global Data, I/O scanning, Modbus TCP messaging, Web server configurable
- Ethernet Port: 10BASE-T, 100BASE-TX
- Memory: Supplied Flash memory card (BMXRWSC016M) for application saving and web server activation

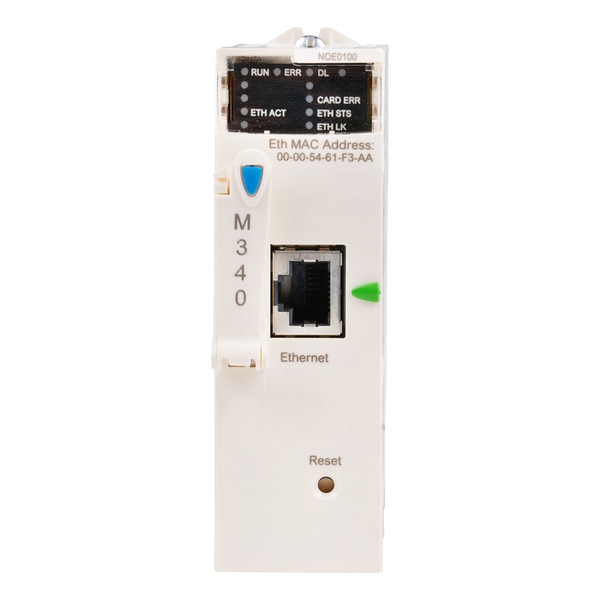

- Local Signaling (LEDs):
- Green: Ethernet activity (ETH ACT)
- Green: Processor running (RUN)
- Green: Ethernet network status (ETH STS)
- Red: Data rate (ETH 100)
- Red: Memory card fault (CARD ERR)
- Net Weight: 0.12 kg (0.26 lb)
- IP Degree of Protection: IP20
- Directives Compliance: 2014/35/EU (Low Voltage), 2014/30/EU (EMC)
- Operating Temperature Range: 32°F to 140°F (0°C to 60°C)
- Storage Temperature Range: -40°F to 185°F (-40°C to 85°C)
- Relative Humidity: 5-95% (at 131°F/55°C) without condensation
- Operating Altitude: 0-6561.68 ft (0-2000 m); 2000-5000 m with derating factor
- Dimensions (H x W x D): 3-7/8" x 1-1/4" x 3-7/8" (approx. 98.4mm x 31.75mm x 98.4mm)
- Certifications: CE Certified, UL Listed
- Seamless Ethernet Connectivity: Integrates Modicon M340 PAC systems into 10/100 Mbps Ethernet networks via RJ45.
- Rich Communication Services: Supports Modbus TCP, Global Data, I/O scanning, Web server, SNMP, and more for comprehensive network management.
- Compact & Robust Design: Space-efficient form factor with an IP20 rating for industrial environments.
- Built-in Diagnostics: Multiple LED indicators provide clear status for Ethernet activity, processor run, network status, data rate, and memory card errors.
- Included Flash Memory Card: Enables application saving and web server functionality.
- Global Compliance: CE and UL certifications ensure high quality and safety standards for worldwide applications.
- Energy Efficient: Internal power supply via rack with low current consumption.
