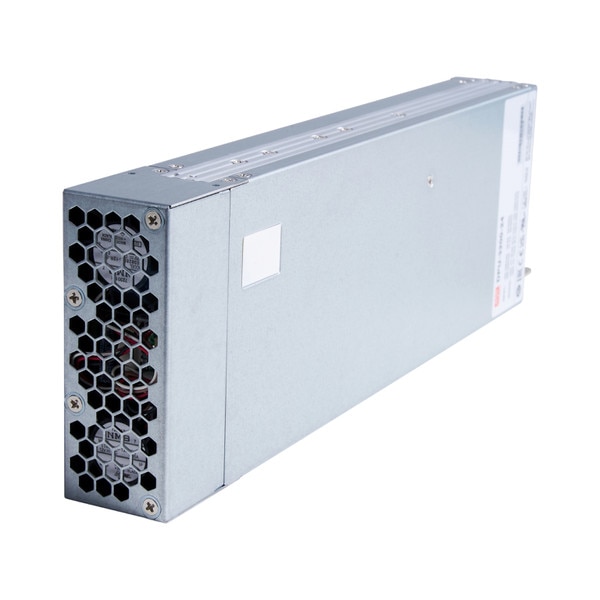

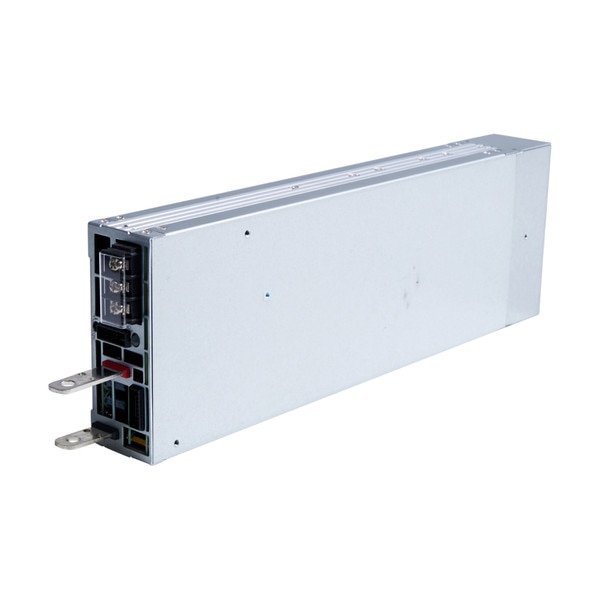

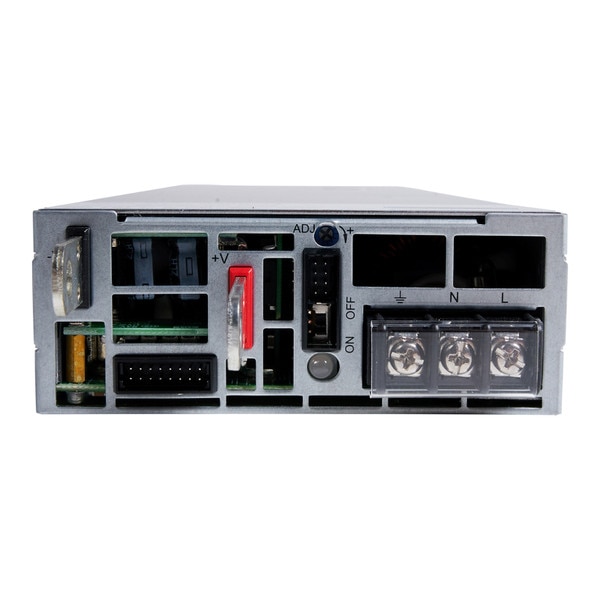

DPU-3200-24 Series 24VDC 3200W Industrial Grade Power Supply
The Mean Well DPU-3200-24 high-power, single-output AC-DC industrial power supply, delivering 3200W at 24 VDC. Engineered for industrial use, this unit features a universal AC input range and a built-in active Power Factor Correction (PFC) function. Its high efficiency and forced air cooling ensures reliable operation. This unit offers programmable output voltage and constant current level, along with active current sharing capability for parallel operation up to 16,000W (4+1). Comprehensive protections include short circuit, overload, over voltage, and over temperature. Within a car wash, the DPU-3200-24 can be used in multiple applications, including in the Main Control Center 1 (MCC1) unit. The power supply has a voltage rating of 24 VDC, rated current of 133 A, and rated power of 3200 W.
- Input Voltage: 96-264 VAC
- Output Voltage: 24 VDC
- Current Rating: 133 A
- Power Rating: 3200 W
- Frequency Range: 47-63 Hz
- Operating Temp. Range: -22F-158F
- Efficiency: 94.5%
- Cooling: Forced Air by Built-In DC Fan
- Dimensions: ~ 12-7/8" X 4-1/4" X 1-5/8"
- Weight: ~6.18 lbs
- Built-In Forced Air Cooling Fan
- High Efficiency
- Universal AC Input Range
- Built-In Active PFC Function
- Current Sharing Operate in Parallel up to 5 Units
- Programmable Output Voltage and Output Current
- Low Profile Design
- Comprehensive Protection Features: Short Circuit, Over Load, Over Voltage, and Over Temperature Protections
