MQDC-406 M12 4-Pin Straight Quick-Disconnect Sensor Cable - 6 ft for Banner Vehicle Detection Loop
MQDC-406 series, 4-pin quick-disconnect cable, specifically designed for applications requiring fast and reliable connections, such as vehicle detection sensing. This single-ended cable measures 6 feet in length and features an M12 female connector on one end and a wire lead receptacle on the other.
Its quick-disconnect functionality allows for sensors and other safety devices to be replaced or repositioned swiftly, significantly minimizing downtime in operations. The cable is built with 22 AWG conductors and is rated for a current of 4.0 A and a voltage of 250 V. The coupling material is brass, ensuring durable connections. With an IP67 protection rating, this cable is resistant to dust and water ingress, making it suitable for demanding environments. It also meets UL listing standards and can operate across a wide temperature range of -40°F to 158°F.
- Product Type: Quick-Disconnect Cable
- Model: Banner MQDC-406
- Cable Length: 6 feet
- Number of Contacts: 4-Pin

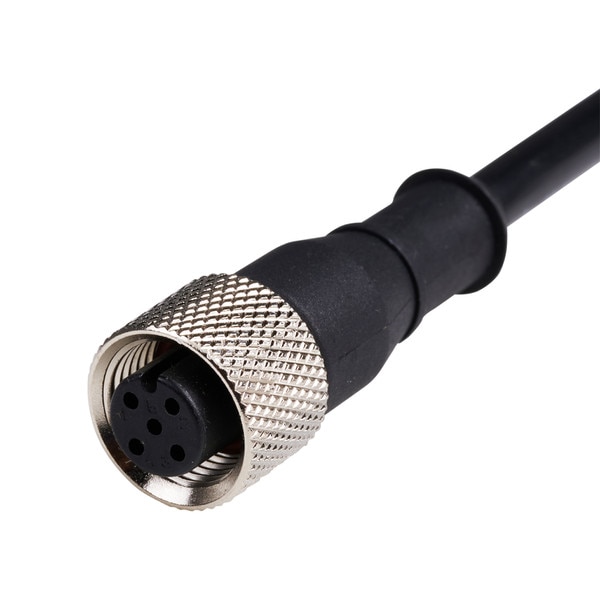

- Connector Type (End 1): M12 Female Connector

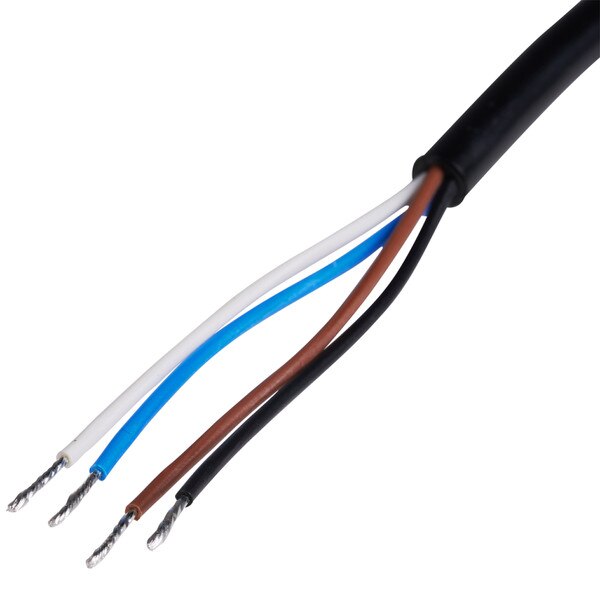

- Connector Type (End 2): M12 Receptacle
- Current Rating: 4.0 A
- Voltage Rating: 250 V
- Coupling Material: Brass
- Conductor Size: 22 AWG
- Configuration: Single-Ended, Straight Connector
- Protection Rating: IP67
- Certifications: UL Listed
- Operating Temperature Range: -40°F to 158°F (-40°C to 70°C)
- Quick Disconnect Design: Enables rapid replacement or repositioning of sensors and safety devices, reducing downtime.
- Robust M12 Connectors: Provides secure and reliable connections with a durable brass coupling material.
- Durable & Weatherproof: IP67 protection ensures resistance to dust and water, suitable for harsh environments.
- Versatile Application: Ideal for vehicle detection sensing and other safety device installations.
- Wide Temperature Range: Operates reliably from -40°F to 158°F.
- UL Listed: Meets recognized safety and quality standards.
