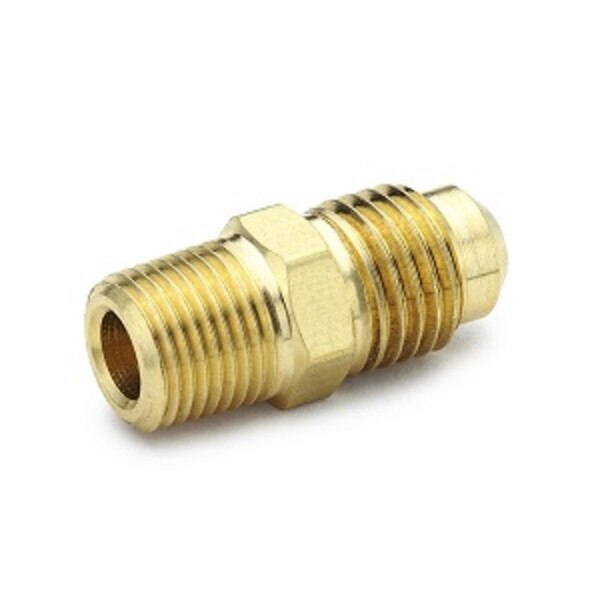

1/2" Flare Tube x 3/8" MNPT Brass Straight Connector Adapter (750 PSI)
Flared Tube Adapter made of durable Brass. It connects a hydraulic 1/2 inch Flared Tube (45 Degree SAE) to a 3/8 inch Male NPT pipe thread. This fitting is rated for a maximum operating pressure of 750 psi
SKU: P-WAT-2283
This Brass Flared Connector Adapter provides a reliable, secure transition between common fluid tubing sizes and standard pipe threads. While primarily used for gases, its compatibility with aluminum, brass, copper, and steel tubing makes it versatile for various hydraulic and pneumatic applications within the car wash environment.
Its construction and pressure rating ensure durable performance in the pump assembly.
Key features and benefits include:
- Dual Connection Type: Adapts a 1/2 inch Flared Tube (SAE) connection, which uses a 3/4 inch - 16 thread, to a 3/8 inch Male NPT pipe thread.
- Moderate Pressure Rating: Designed to operate safely with a maximum pressure of 750 psi.
- Durable Brass Material: Provides excellent corrosion resistance and is compatible with a variety of fluid media, including air, water, and oil.
- Versatile Tube Compatibility: Compatible with aluminum, brass, copper, steel, as well as nylon, polyethylene, and polyurethane tubing (when used with appropriate sleeves/inserts).
- Application: Essential component for plumbing connections in the All-In-One High Pressure Pump System.
- Product Type: Flared Tube Connector Adapter (Straight)
- Shape: Straight
- Material: Brass
- Fitting Side A (Flared): 1/2 in Outer Diameter Tube
- Thread Size A (Flared): 3/4 in - 16
- Fitting Side B (Pipe): 3/8 in Male NPT (MNPT)
- Maximum Operating Pressure: 750 psi
- Operating Temperature Range: -65°F to 250°F
- Hex Size (Approx.): 3/4 in
- Standards: SAE J512, SAE J513
- Application: All-In-One High Pressure Pump System
- 1/2" Flare x 3/8" MNPT: Common adapter size for fluid lines.
- 750 PSI: Rated for reliable moderate-pressure use.
- Brass: Durable, standard material for hydraulic/fluid fittings.
- Pump System Part: Used in the All-In-One High Pressure Pump Assembly.
