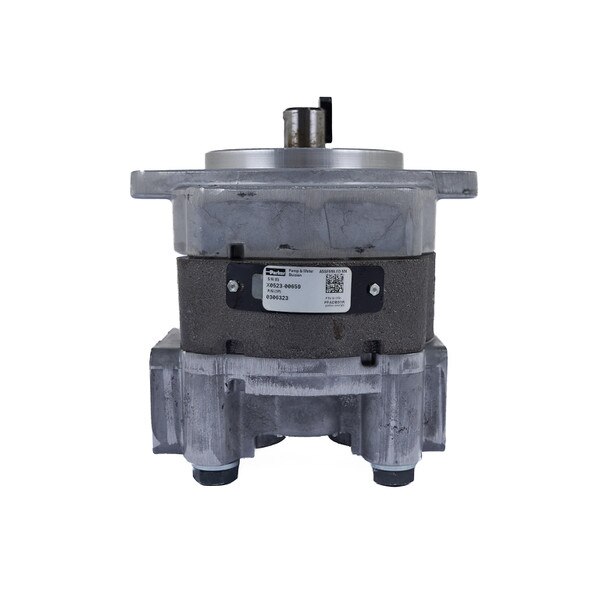

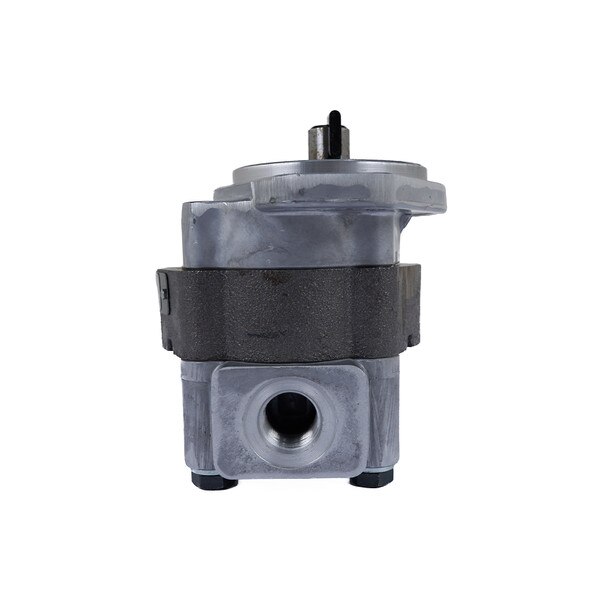

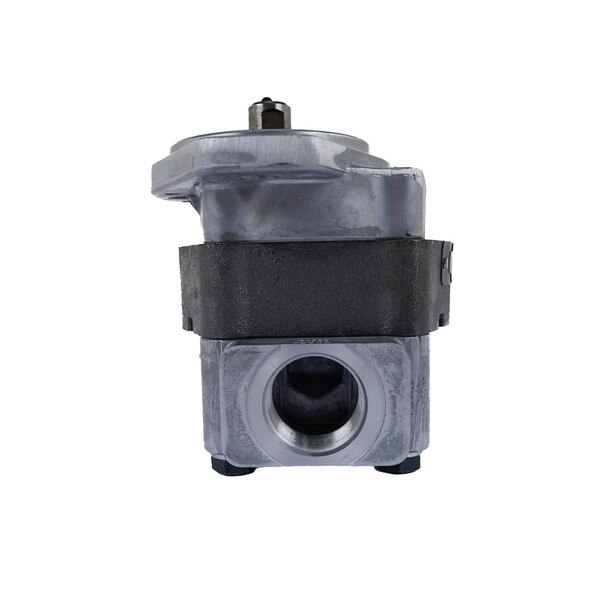

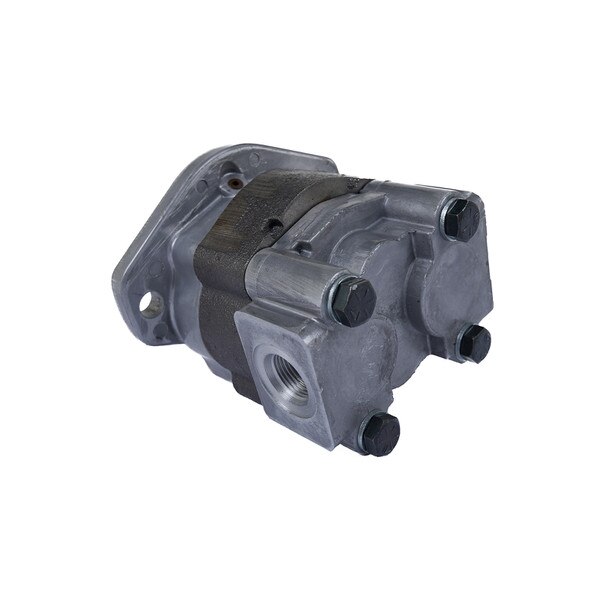

20 GPM Gear Pump for 4 Bank Hydraulic Unit
The 20 GPM Gear Pump is a high-performance component that serves as the heart of your hydraulic power unit. Designed to deliver strong and consistent flow, it provides the power needed to pump hydraulic fluid to your wash equipment, making it an ideal choice for demanding applications.
This pump features a robust design with a 7/8" straight shaft and a displacement of 2.241 cu.in./rev. This translates to a flow rate of 17.07 GPM at 1760 RPM, ensuring that your equipment receives the necessary power for reliable operation. The pump is rated for a maximum pressure of 3000 PSI and a maximum speed of 3100 RPM. All ports are specifically threaded for a perfect, secure connection: a 1-5/8"-12 UN-2B SAE straight thread for the suction inlet and a 1-1/16"-12 UN-2B SAE straight thread for the discharge outlet.
- Model Number: GP20-P16
- Product Type: Hydraulic Gear Pump
- Shaft Diameter: 7/8" Straight Shaft
- Displacement: 2.241 cu.in./rev.
- Flow Rate: 17.07 GPM (at 1760 RPM)
- Max. Pressure: 3000 PSI (207 bar)
- Max. Speed: 3100 RPM
- Suction (Inlet) Port: 1-5/8"-12 UN-2B SAE Straight Thread
- Discharge (Outlet) Port: 1-1/16"-12 UN-2B SAE Straight Thread
- High Performance: Delivers up to 3000 PSI of maximum pressure.
- Consistent Flow: Provides a high GPM rate for demanding applications.
- Precise Fit: Specific shaft and port dimensions for direct-fit installation.
- Durable Construction: Built for the rigorous demands of a hydraulic system.
