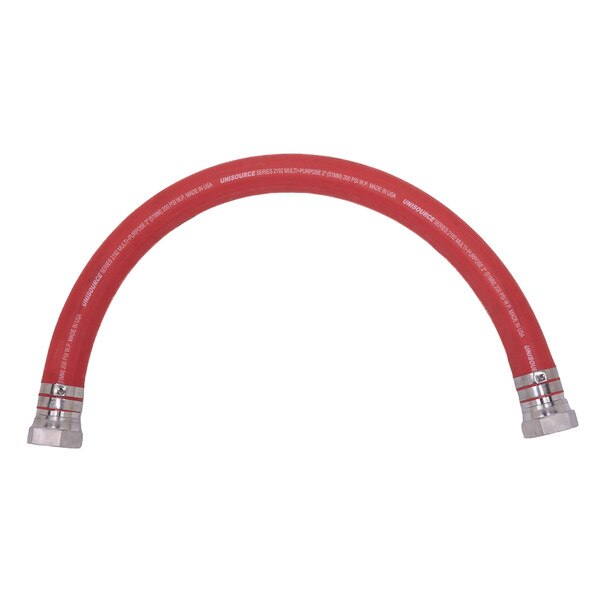

2" Output Hose for All-In-One Pump Station (48" Long, 200 PSI)
This 2" Output Hose is a critical component for the high-volume distribution lines exiting the All-In-One High Pressure Pump Station. Its construction and connections are specified for reliable, high-flow performance within the demanding wash tunnel environment.
Key Construction and Features:

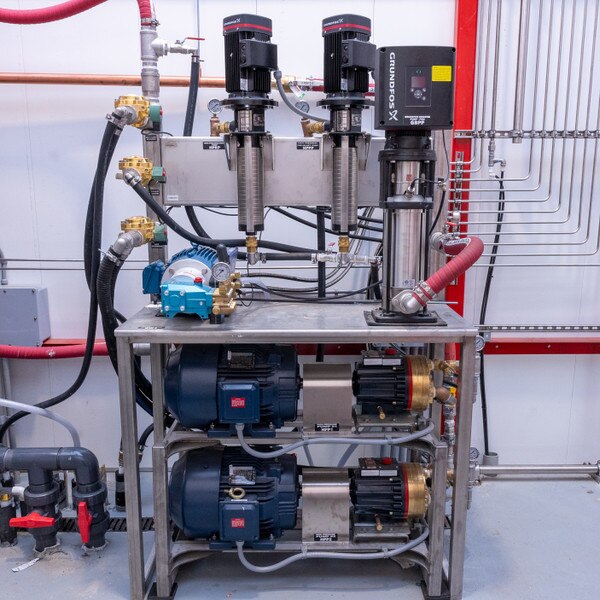

- Application: Designed to handle the outgoing flow (pump discharge) from the All-In-One Pump Station to the wash tunnel's various high-pressure features.

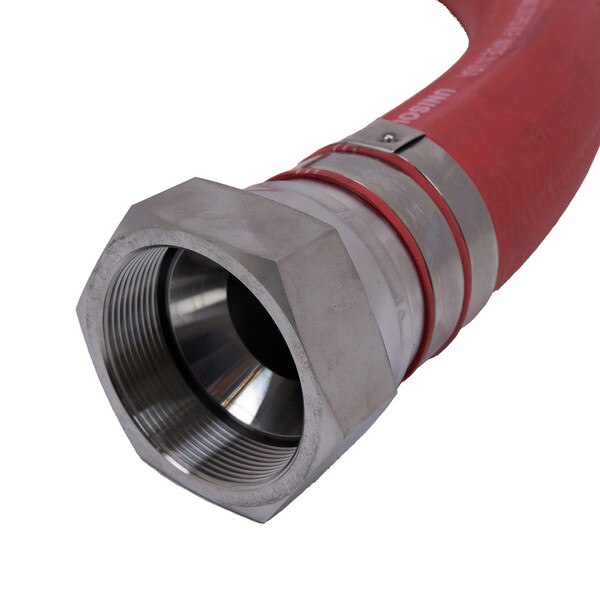

- Connections: Features 2" Female JIC (Joint Industrial Council) connections on both ends. This type of connection is robust and relies on a metal-to-metal seal (flared fitting) to prevent leaks, requiring a separate Male Adapter (P-WAT-2349) to connect to the NPT ports on the pump station.
- Pressure and Durability: Rated for a continuous maximum operating pressure of 200 PSI and a temperature range of −40F to 190F.
- Material: Constructed from durable EPDM Rubber with a Red exterior, offering excellent resistance to water, heat, and common car wash chemicals.
- Length: At 48" (4 feet), this hose provides sufficient flexibility for connecting the pump outlets to the main plumbing headers.
Male Adapter needed for this hose to connect to is P-WAT-2349.
- Product Type: High Pressure Output Hose / Pump Discharge Hose
- Application: Outgoing Flow Lines for All-In-One Pump Station
- Connection Size: 2" Female JIC on Both Ends
- Required Adapter (Male): P-WAT-2349
- Length: 48" Long
- Pressure Rating: 200 PSI
- Operating Temp. Range: −40F to 190F
- Material: EPDM Rubber
- Color: Red
- High Flow Capacity: 2" inner diameter handles high volume output from the pump station.
- Durable Construction: EPDM rubber offers excellent resistance to abrasion and environmental factors.
- Secure Connection: JIC fittings provide a professional, leak-resistant high-pressure seal.
- Pressure Rated: Supports the system's requirements up to 200 PSI for reliable operation.
