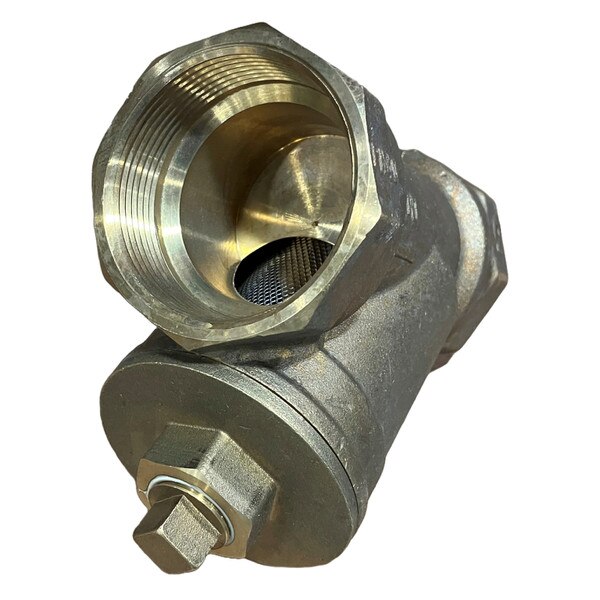

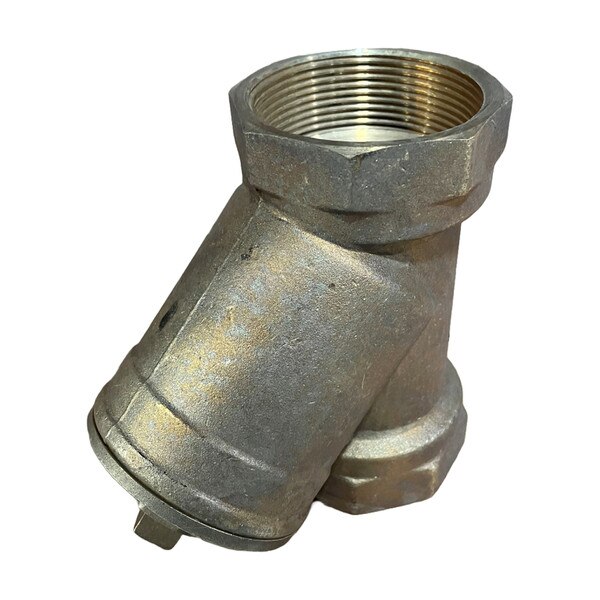

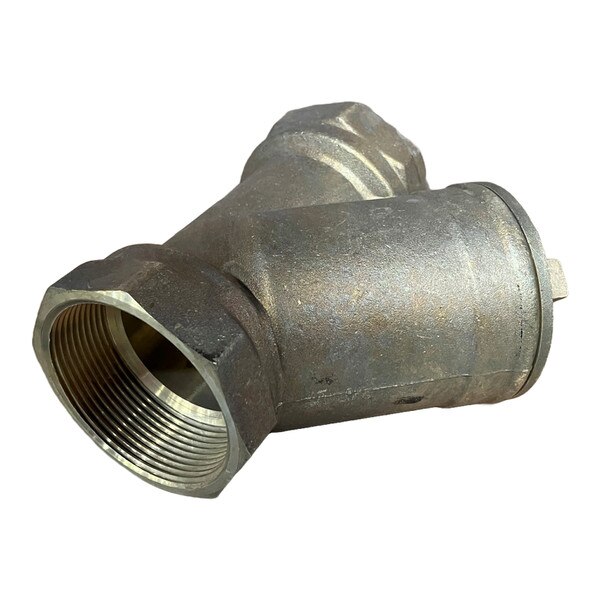

2" Female Y Strainer 600 PSI
This Y strainer is used in the All-In-One Pump Station and Water Treatment Center in the backroom of the wash. The strainer has a 2" Female NPT connection on both ends. The Y strainer is made of bronze material to resist corrosion and have higher heat and electrical conductivity. The strainers help protect the pumps from contaminants in water applications. It has a 600 PSI max pressure and includes a stainless steel screen with 50 mesh sizing. Included in the strainer is an NPT blow-off connection and straight threaded cap.
- Port Size: 2" on Both Ends
- Easy Clean Plug Port Size: 1/2"
- Max Pressure: 600 PSI
- Flow Rate at 175 PSI: 453.97
- Operating Temp. Range: -20F-370F
- Micron Rating: 840 Micron
- Strainer Material: Bronze
- Mesh Size: 50 Mesh
- Mesh Material: 304 Stainless Steel
- Dimensions: 5" X 5" X 2-5/8"
- Corrosion Resistant
- Y Design
- Threaded with PTFE Gaskets
- NPT Blow-Off Connection
- Easy Clean Port
- Straight Threaded Cap
- Stainless Mesh
