Releco C10-A1x Series 120VAC Interface and General Purpose Relay

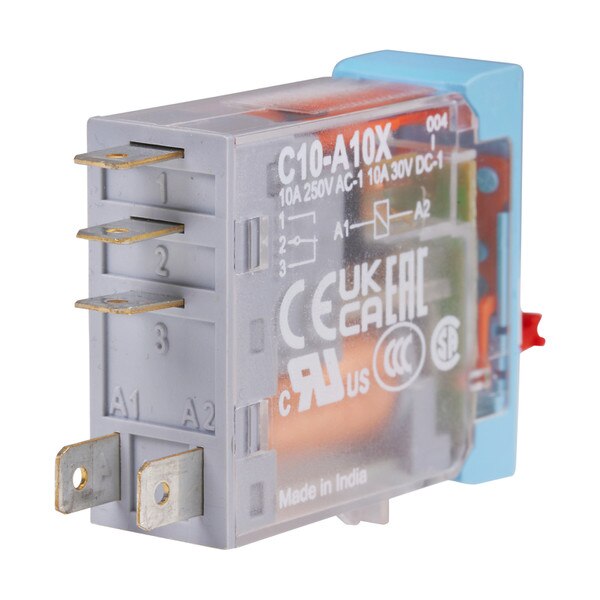

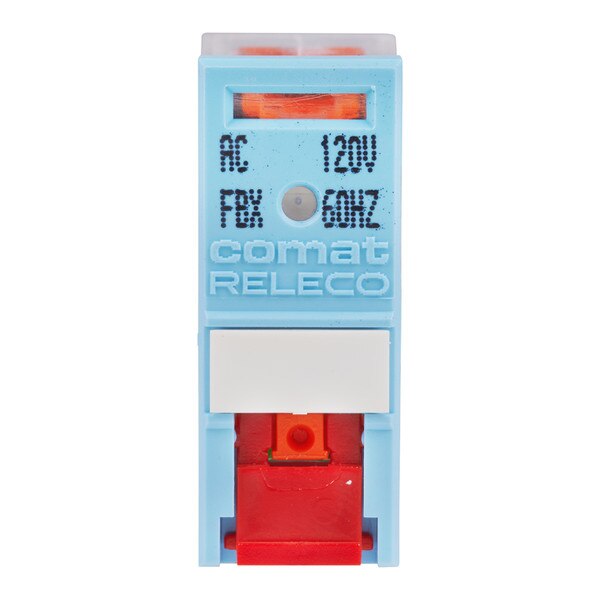

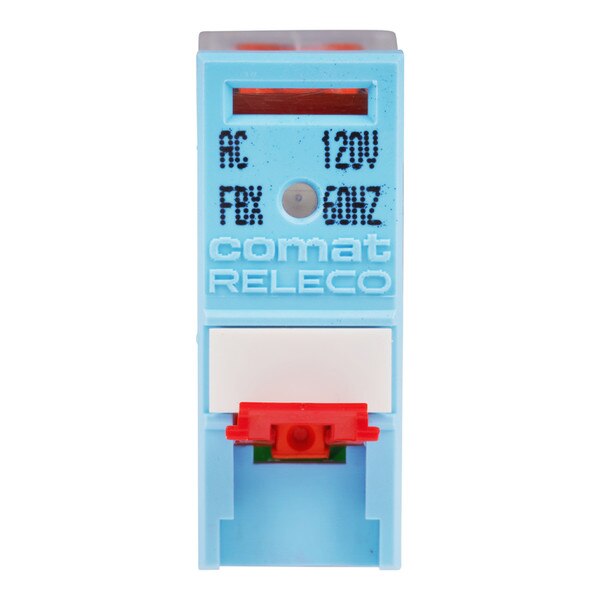

reliable 120VAC Releco C10-A1x series plug-in interface relay, designed for a broad range of interface and general control applications. This "old style" relay features a robust design with 5 Faston .187 prongs for a secure electrical connection to compatible sockets (such as S10, S10-P).
It provides 1 changeover contact (SPDT equivalent), capable of handling a significant contact load of 10 A at 250 V AC-1. The relay's coil is rated for 120VAC (115V nominal), with a nominal power of 1.1 VA. It offers excellent insulation characteristics, including 5 kV between contact and coil and an insulation resistance of 1 GΩ at 500 V, ensuring safety and reliability in industrial environments.
Built for durability, the CCS-R6655 operates effectively within a wide ambient temperature range of -40°F to 158°F (-40°C to 70°C). It boasts a mechanical life of 10 million operations for AC circuits, contributing to its long-term performance in demanding systems.
- Series: Releco C10-A1x Interface Relays (Pluggable)
- Voltage Rating: 120 VAC (nominal 115 VAC)
- Applications: Interface, General Purpose
- Contact Configuration: 1 Changeover Contact (SPDT equivalent)
- Contact Type: Faston .187 plug-in (5 prongs)
- Contact Material: Standard AgNi
- Contact Rating (Max Load): 10 A / 250 V AC-1; 0.5 A / 110 V DC-1; 10 A / 30 V DC-1
- Recommended Minimum Contact Load: 10 mA / 10 V (Code 0.5)
- Switching Voltage Max: 250 V
- Switch-on Current Max (20 ms): 30 A (120 A for Code 5 material)
- Nominal Coil Power: 1.1 VA (AC) / 0.7 W (DC)
- Coil Resistance (115VAC): 7.300 Ohm
- Coil Current (115VAC): 9.5 mA
- Pick-up Voltage: ≤ 0.8 x UN
- Release Voltage: ≥ 0.1 x UN
- Insulation:
- Contact Open: 1000 V (rms / 1 min)
- Contact/Coil: 5 kV (rms / 1 min)
- Resistance at 500 V: ≥ 1 GΩ
- IEC 61810-1: 4 kV
- Operating Temperature Range: -40°F to 158°F (-40°C to 70°C)
- Storage Temperature Range: -40°F to 176°F (-40°C to 80°C, no ice)
- Pick-up Time: 10 ms
- Release Time: 5 ms
- Mechanical Life: 10 Million operations (AC) / 20 Million operations (DC)
- Switching Frequency (at rated load): ≤ 1200 / hour
- Dimensions (Approximate): 1.13" H x 0.49" W x 1.39" D (28.8mm H x 12.5mm W x 35.4mm D)
- Net Weight: 21 g (approx. 0.046 lbs)
- Compatible Sockets: S10, S10-P (sold separately)
- Versatile Application: Ideal for interface and general-purpose switching in control systems.
- Reliable 120VAC Coil: Ensures robust operation with common industrial control voltages.
- High Contact Rating: Capable of switching loads up to 10 Amps, suitable for various control circuits.
- Compact Plug-in Design: Features 5 Faston prongs for easy, secure, and tool-free installation into compatible sockets.
- Wide Operating Temperature: Performs consistently across a broad temperature range (-40°F to 158°F).
- Excellent Insulation: Provides high dielectric strength for safety and noise immunity.
- Long Mechanical Life: Designed for millions of operations, ensuring durability and extended service life.
