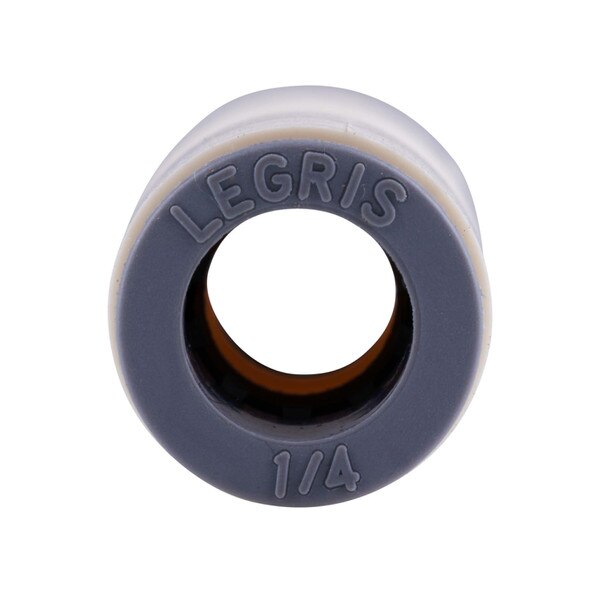

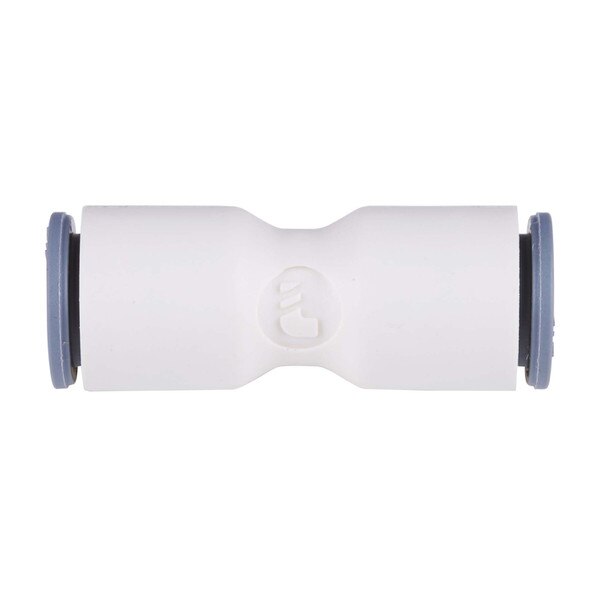

1/4" Straight Union Push-To-Connect Tube Fitting (Bio-Polyamide, 230 PSI)
The 1/4" Straight Union Push-To-Connect Tube Fitting is a high-performance connector designed for reliable and seamless connections of 1/4" O.D. tubing. This straight union fitting, part of the innovative LIQUIfit Union Push-To-Connect series, offers an "eco-designed" alternative ideal for sensitive water and beverage applications.
The fitting is primarily constructed from bio-based polyamide material, ensuring durability and chemical resistance. Internally, it features an EPDM D-Seal for superior sealing and a Stainless Steel Gripping Ring for a secure tube hold. The white color provides a clean and standard appearance.
A key feature of this design is its full-flow capability, meaning no internal locking clip is needed to maintain the connection, which also prevents fluid contamination. This Push-To-Connect technology guarantees a leak-proof sealing environment, essential for maintaining system integrity.
The P-AIR-2048 is rated for a maximum pressure of 230 PSI and performs reliably within a temperature range of 35°F to 200°F. It adheres to stringent health and safety standards, including FDA, NSF 51 & 61, and AB1953 Low Lead, making it safe for use with potable liquids. Its high chemical resistance further broadens its applicability.
This fitting is commonly used in water filtration systems, RO systems, drinking dispensers, and general potable water and water applications. Please note, these fittings must be ordered in quantities of 10.
- Product Type: Straight Union Tube Fitting / Push-To-Connect Fitting
- Connections: Tube x Tube
- Tube Size Compatibility: 1/4" O.D. on both ends
- Body Material: Bio-based Polyamide
- Seal Material: EPDM D-Seal
- Gripping Ring Material: Stainless Steel
- Color: White
- Max. Pressure: 230 PSI
- Temperature Range: 35°F - 200°F
- Standards: FDA, NSF 51 & 61, AB1953 Low Lead
- Chemical Resistance: High
- Minimum Order Quantity (MOQ): 10
- Applications: Water, Potable Liquids, RO Systems, Drinking Dispensers, Water Filtration Systems.
- Eco-Designed LIQUIfit Series: Innovative and environmentally conscious construction.
- Push-To-Connect Technology: Ensures fast, tool-free, and secure tube connections.
- Guaranteed Leak-Proof Seal: Provides maximum reliability and prevents fluid loss.
- Full Flow Design: Maintains unrestricted fluid passage without contamination.
- NSF/FDA/AB1953 Certified: Safe for use with potable water and beverages.
- Durable & Chemically Resistant: Bio-based polyamide body withstands various chemicals and conditions.
- High Performance: Rated for up to 230 PSI and temperatures from 35°F to 200°F.
