Tommy 2.0 Blower Blast Gate Air Cylinder 1-16" Bore

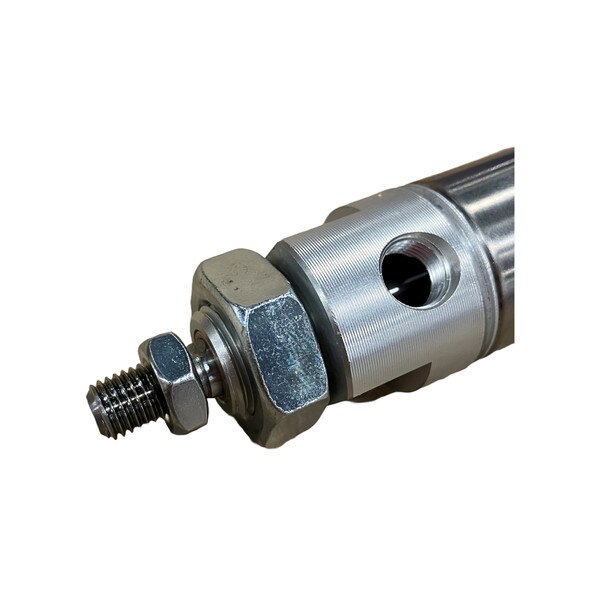

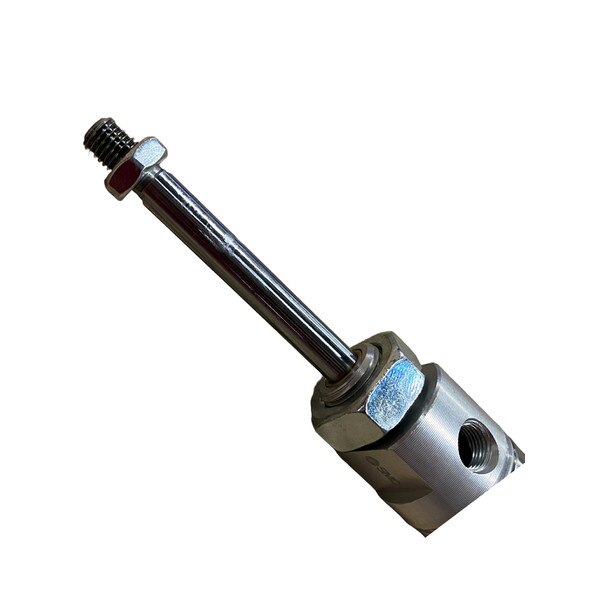

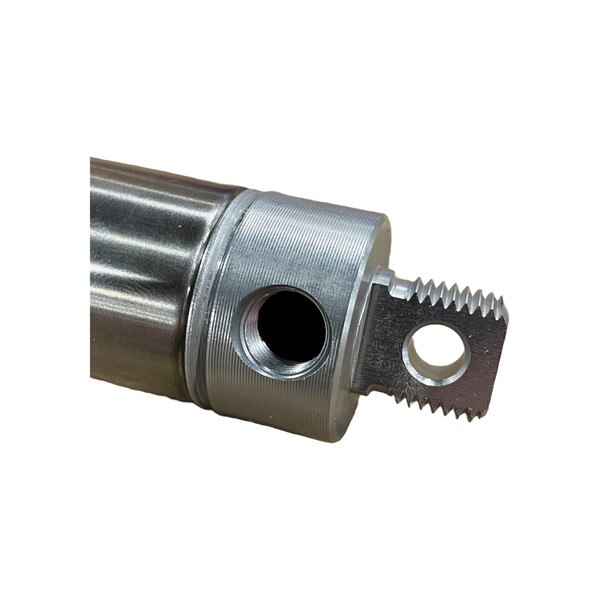

This air cylinder is used on the Blast Gate units on the Tommy 2.0 blowers in the drying room. The air cylinder mounts onto the blast gate rotation plate with a 3/8" mounting bracket on one end and a 5/16" rod end on the other end. It has a 1-1/16" bore with a 2" stroke and comes with a built-in magnet with auto switch. These air cylinders have round bodies and are double acting, single rod cylinders with double end mounts. This cylinder has a 5/16" rod diameter with male threaded connection on the end and is 6-5/8" long non-extended and 8-5/8" long when the rod is extended. The cylinder has a stainless steel material body.
- Mounting Bracket End Mounting Hole Diameter: 3/8"
- Rod Diameter: 5/16"
- Stroke Length: 2"
- Bore Size: 1-1/16"
- Cylinder Length: 6-5/8' Non-Extended, 8-5/8" Extended
- Operating Pressure Range: 8-250 PSI
- Operating Temp. Range: 40F-140F
- Body Material: Stainless Steel
- Round Body with Standard Cylinder Size
- Double End Mount
- Single Rod
- Built-In Magnet with Auto Switch
- Double-Acting
