Ubiquiti UniFi UAP-AC-PRO-E-A Pre-Programmed Dual-Band Wi-Fi 5 Access Point (AP) - 24V PoE, 1750 Mbps, Indoor/Outdoor

(0)No Reviews yet
$283.33
SKU: CCS-UAP-AC-PRO-E-A

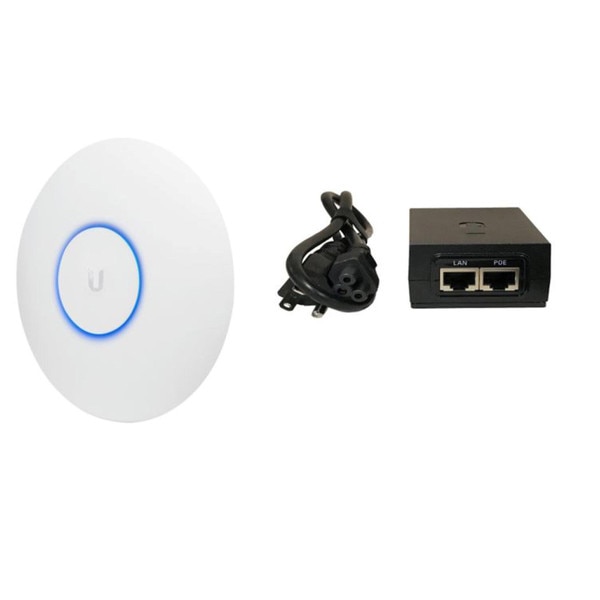

high-performance Ubiquiti UniFi UAP-AC-PRO dual-band Wi-Fi system, specifically pre-programmed for optimal operation in demanding wash site environments. This access point (AP) leverages the latest Wi-Fi 5 (802.11ac) technology, featuring 3x3 MIMO (Multiple Input, Multiple Output) for both the 2.4 GHz and 5 GHz bands, ensuring maximum performance and robust wireless connectivity. It delivers impressive speeds of up to 450 Mbps on the 2.4 GHz band and up to 1300 Mbps on the 5 GHz band, providing a total aggregate throughput of up to 1750 Mbps. The system comes complete with a Power over Ethernet (PoE+) injector and power cable, simplifying installation.


Technically, the UAP-AC-PRO-E-A is designed for versatile deployment, capable of both indoor and outdoor use with included wall and ceiling mounting hardware. It is equipped with two 10/100/1,000 Mbps Gigabit Ethernet PoE+ ports for flexible network integration. The AP operates on a 44-57 VDC power supply with a modest 9W power consumption. Its internal antenna system, featuring three antennas with 3-6 dBi gain, provides an effective open space range of up to 400 feet. The device includes convenient reset buttons for easy management. Built to withstand various conditions, it operates across a wide temperature range of 14°F to 158°F (-10°C to 70°C) and a humidity range of 5-95% (non-condensing). The UniFi system allows for unlimited AP scalability, centrally managed by the intuitive UniFi Controller software via a standard web browser or the UniFi mobile app (iOS or Android).


This pre-programmed UniFi Access Point is an ideal solution for establishing or extending a high-performance wireless network in car wash facilities, service stations, or other outdoor/rugged environments. Its robust design, combined with advanced Wi-Fi capabilities and a comprehensive management platform, ensures reliable connectivity for payment systems, security cameras, customer Wi-Fi, and operational data, even in challenging conditions. The "programmed for your wash site needs" aspect ensures quick deployment and optimized performance without extensive configuration.

  • Model: UAP-AC-PRO (UniFi AC Pro)
  • Wireless Standard: IEEE 802.11a/b/g/n/ac (Wi-Fi 5)
  • Wireless Frequency Bands: 2.4 GHz / 5 GHz Dual-Band
  • MIMO Technology: 3x3 MIMO for each band
  • Throughput / Speed:
    • 2.4 GHz: Up to 450 Mbps
    • 5 GHz: Up to 1300 Mbps
    • Total Aggregate: Up to 1750 Mbps
  • Ports: 2 x 10/100/1,000 Mb/s Gigabit Ethernet (PoE+)
  • Antennas: 3 x Internal Antennas
  • Antenna Gain: 3-6 dBi
  • Transmit Power: 22 dBm
  • Power Supply: PoE+ (44-57 VDC) – PoE Injector and power cable included
  • Power Consumption: 9 W
  • Max. Power Method: 802.3af/A PoE / 802.3at PoE+
  • Range (Open Space): 400 ft
  • Operating Temperature Range: 14°F to 158°F (-10°C to 70°C)
  • Operating Humidity Range: 5% to 95% non-condensing
  • Dimensions (L x W x H): 7.75" x 7.75" x 1.38" (196.7 x 196.7 x 35 mm)
  • Mounting: Wall and Ceiling Mountable (Hardware included)
  • Management: UniFi Controller Software (Web Browser, iOS/Android App)
  • Buttons: Reset
  • Certifications: CE, FCC, IC (standard for UniFi products)
  • Enclosure: Indoor/Outdoor UV stabilized plastic
  • Net Weight: ~0.66 lbs (0.3 kg)
  • Pre-Programmed for Wash Sites: Optimized for quick and efficient deployment in specific environmental needs.
  • High-Performance Wi-Fi 5 (802.11ac): Delivers combined speeds up to 1750 Mbps across dual 2.4/5 GHz bands.
  • Advanced MIMO Technology: Features 3x3 MIMO on both bands for superior throughput and coverage.
  • Indoor/Outdoor Versatility: Durable design allows for flexible deployment in various environments.
  • PoE+ Powered: Includes PoE injector and power cable for simplified installation and power delivery.
  • Extensive Coverage: Provides a reliable Wi-Fi range of up to 400 feet in open spaces.
  • Scalable & Managed: Part of the UniFi ecosystem, offering unlimited AP scalability and centralized management via UniFi Controller software.
