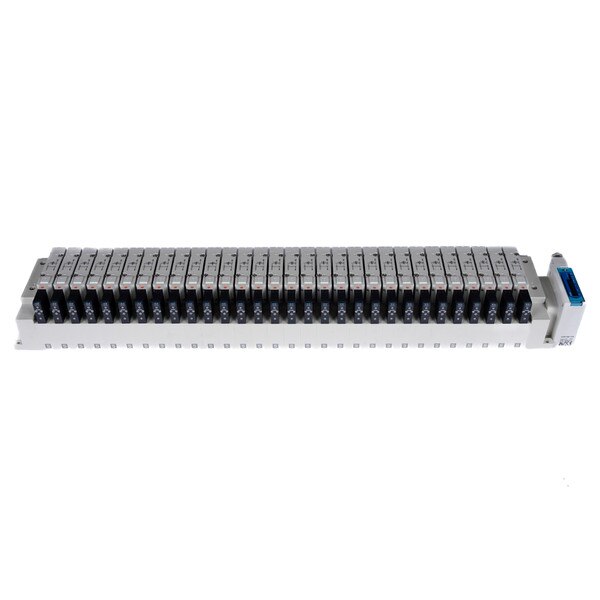

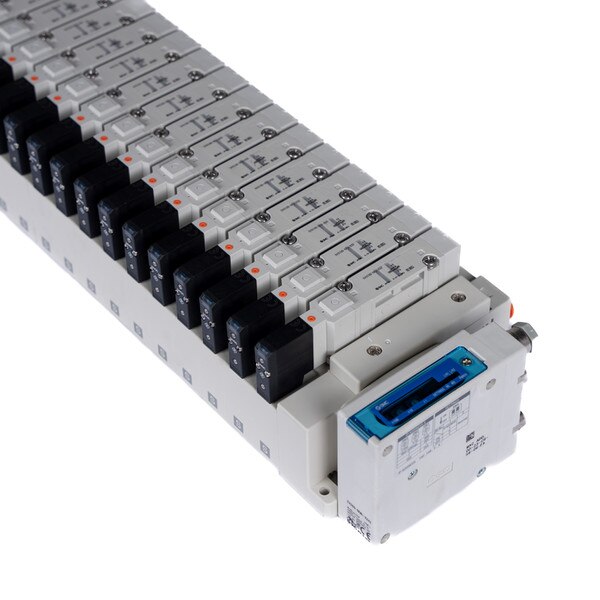

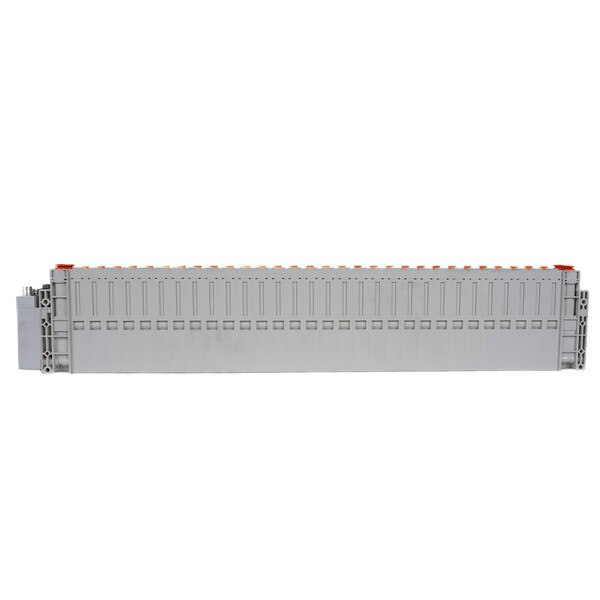

Programmed 30 Station Manifold with Solenoid Valves for POD
SKU: P-AIR-2230-A
Programmed 30-station pneumatic manifold (SV series, Tie Rod Base) with solenoid valves, designed specifically for the Detergent POD unit, featuring 32 Inputs/Outputs and IP67 protection
The Programmed 30 Station SMC Manifold is a complete, high-density pneumatic control unit engineered for the complex valve operations of the Detergent POD. This module is a vital upgrade, utilizing the reliable SMC SV series and replacing cumbersome individual lead wires with a simplified internal multi-connector wiring design.
This specific configuration provides a large control capacity:
- 30 Valve Stations (Ports) are available on the backplane, powered by the included programmed Det. Pod SMC Module.
- The system offers 32 Inputs/Outputs for extensive control integration.
- It utilizes Serial Wiring with an Input/Output Unit, enhancing efficiency and simplifying diagnostics compared to conventional wiring.
- The manifold uses a robust Tie Rod Base (3000 series, EX250 type) construction for maximum stability and long-term durability.
- Built for the harsh wash environment, the manifold carries an IP67 protection rating, ensuring full resistance against dust and water immersion.
Note on Fittings: Adapters (P-AIR-2238) and Quick Connect Fittings (P-AIR-2200) are not included with this programmed station and must be ordered separately.
- Product Type: Programmed Pneumatic Solenoid Manifold
- Application: Detergent POD Only
- Maximum Number of Stations: 30
- Number of Inputs/Outputs: 32 each
- Series/Type: SMC SV Series, EX250 Type
- Base Type: Tie Rod Base (3000 series)
- Wiring: Serial Wiring with Input/Output Unit (Multi-Connector Design)
- Protection Rating: IP67
- Required Accessories (Not Included): Adapter (P-AIR-2238), Quick Connect Fitting (P-AIR-2200)
- High-Capacity Control: Dedicated 30-station configuration for comprehensive Detergent POD valve control.
- Simplified Wiring: Multi-connector design and serial wiring drastically reduce complexity and maintenance time.
- Extreme Durability: IP67 rating ensures reliable operation in high-moisture and washdown environments.
- System Ready: Pre-programmed with the necessary Det. Pod SMC Module for immediate integration into the system.
