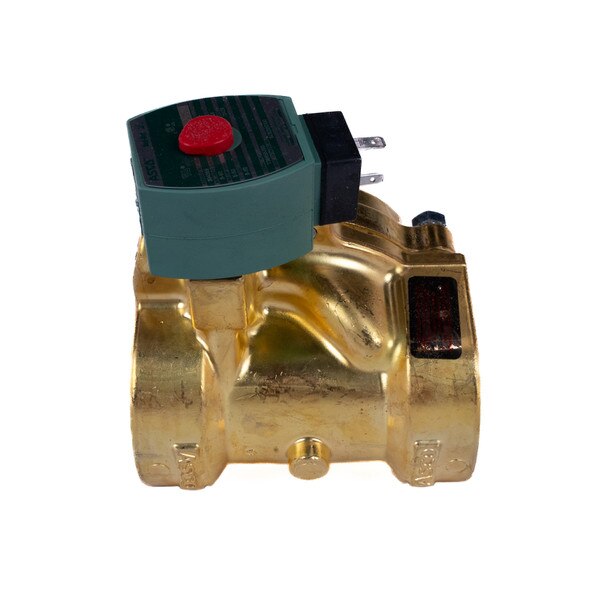

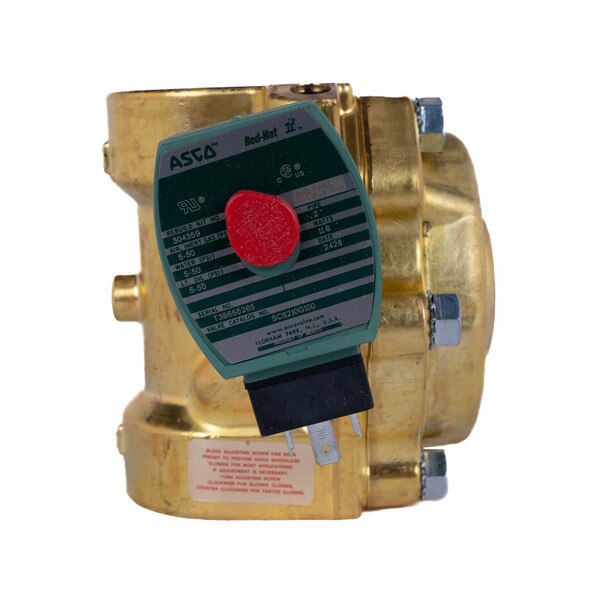

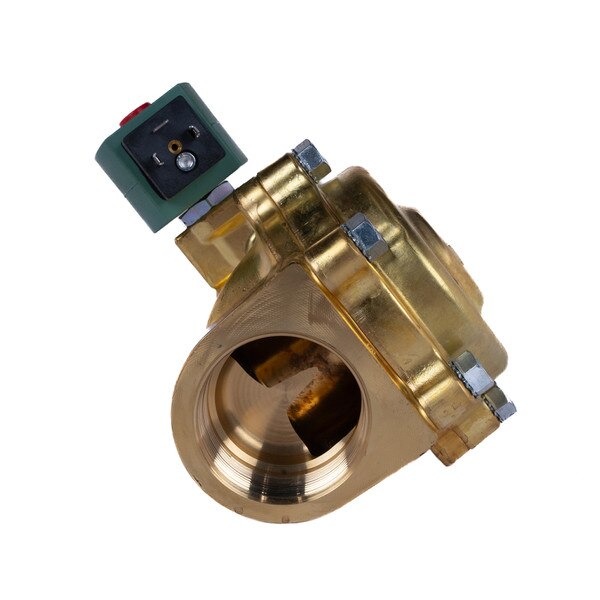

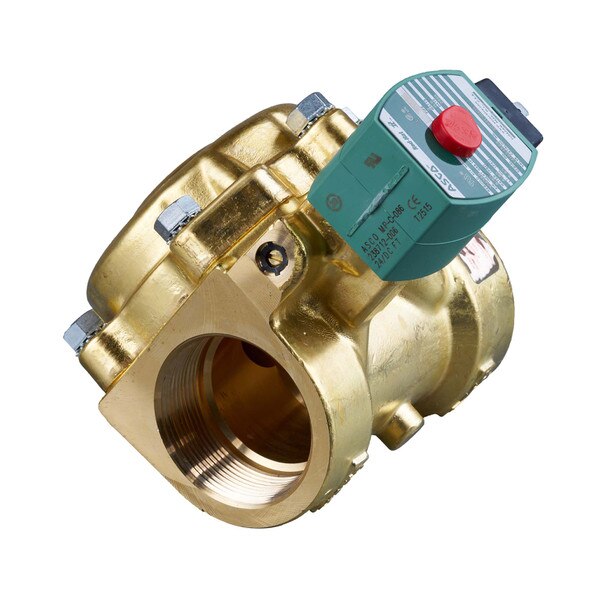

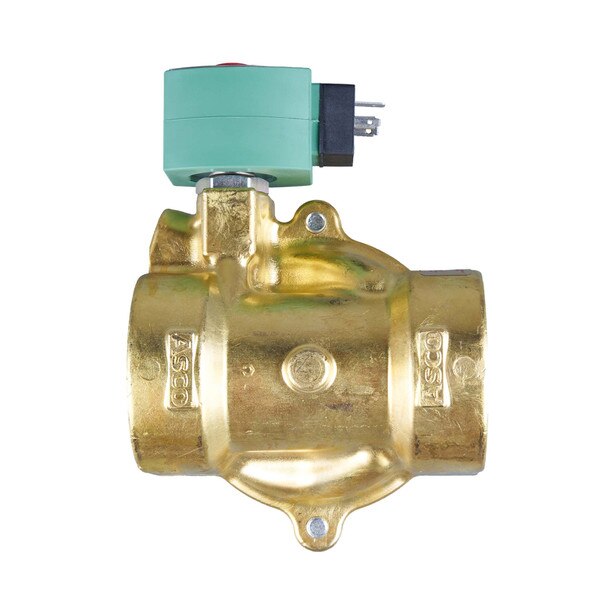

Asco 8210G100 24VDC 2-Way 2" Normally Closed Brass Solenoid Valve

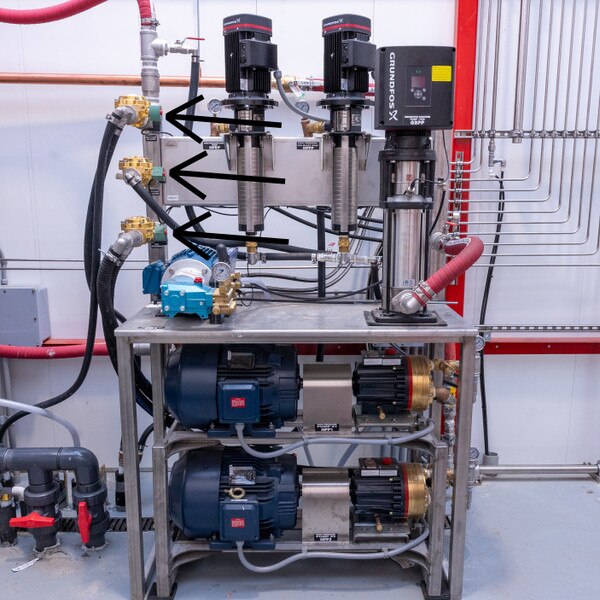

The Asco 8210G100 Solenoid Valve is a high-performance, 2-way valve engineered for reliability and durability in demanding fluid control applications. As a key component of systems like the All-In-One Pump Station, this valve is designed for efficient control of various media, including liquid, corrosive substances, air, and inert gases. Its robust construction from tough forged brass ensures excellent resistance to corrosion and wear, making it suitable for both indoor and outdoor installations.
This valve operates with a 24VDC coil, consuming 11.6 Watts, and functions as a Normally Closed (NC) direct-acting valve, meaning it remains closed when de-energized and opens when power is applied. It features 2" threaded Female NPT connections on both ends, allowing for seamless integration into 2-inch piping systems. The valve boasts a high flow capacity of 43 Cv, enabling efficient media transfer.
The is designed to handle a wide range of pressures and temperatures. For air and inert gas, it has a pressure range of 5-150 PSI, while for water, it's 5-125 PSI, and for oil, it's 5-90 PSI. The maximum fluid temperature is 150°F for DC coils (180°F for AC coils, though this is a DC valve). It features a large 1-3/4" orifice diameter for high flow rates. An adjustable bleed device is incorporated to provide control over the piston speed, optimizing valve performance for specific application needs.
This solenoid valve is a versatile choice for various industrial and commercial uses, including car washes, air compressors, industrial water control, laundry equipment, and pumps. It offers multiple enclosure ratings (NEMA 1, 2, 3, 3S, 4, 4X) for environmental protection. For full functionality, it requires the P-WAT-2560 connector (sold separately).
- Required Accessory: P-WAT-2560 connector (sold separately)
- Product Type: 2-Way Solenoid Valve
- Model/Series: ASCO 8210G100
- Body Material: Forged Brass
- Body Style: 2-Way
- Action: Direct Acting, Normally Closed (NC)
- Connection Type: 2" Threaded Female NPT on Both Ends
- Pipe Size: 2"
- Flow Capacity (Cv): 43
- Voltage: 24 VDC
- Watts: 11.6 W
- Orifice Diameter: 1-3/4"
- Seal Material: Buna N Elastomer
- Wetted Materials: Brass, Buna N
- Maximum Fluid Temperature: 150°F (65°C) for DC (180°F for AC)
- Pressure Range:
- Air/Inert Gas: 5 - 150 PSI
- Water: 5 - 125 PSI
- Oil: 5 - 90 PSI
- Enclosure Rating: NEMA 1, NEMA 2, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X
- Dimensions (Approximate): 5-1/4" (H) x 4-7/8" (W) x 7-1/4" (D)
- Solenoid Coil Part Number: 238710-006-D*
- Solenoid Kit Part Number: 304359
- Approvals: CSA, UL File #MP618, CE
- Durable Brass Construction: Forged brass body provides excellent resistance to corrosion and extends service life.
- Normally Closed Operation: Valve closes when de-energized, providing fail-safe operation in many systems.
- High Flow Capacity (43 Cv): Ensures efficient media transfer for demanding applications.
- Versatile Media Compatibility: Suitable for liquid, corrosive, air, and inert gas service.
- Wide Pressure Range: Handles varying pressure requirements across different media types.
- Adjustable Piston Speed: Features an adjustable bleed device for precise control over piston movement.
- Broad Application Suitability: Ideal for car washes, industrial water control, air compressors, laundry equipment, and pumps.
- NEMA Rated Enclosure: Provides robust protection against environmental factors for both indoor and outdoor use.
- 24VDC Operation: Compatible with common low-voltage DC control systems.
