Robot Prepping System Arch Riffle Nozzle Body Stainless

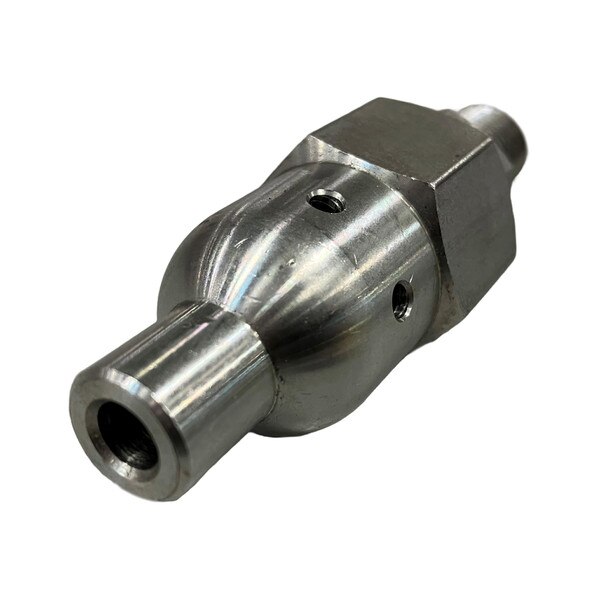

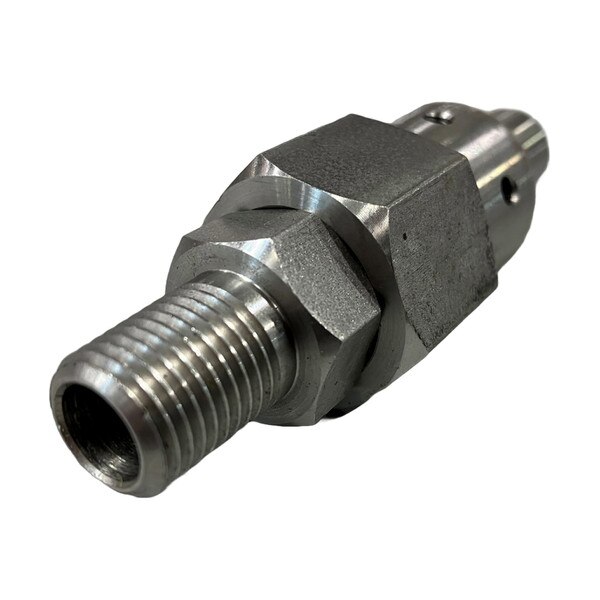

Riffle body used on the Robot Prepping System arch in the wash tunnel. There are 52 of these riffle bodies used on the arch, 26 on each side. Each riffle body is made of stainless steel material. One end has a 1/2" OD Male NPT connection that connects to the Robot manifold. The other end has a 1/4" ID and 1/2" OD Male straight fitting that releases the water. Unijet spray tip is not included (P-CHE-2160).
- End 1: 1/2" OD Male NPT
- End 2: 1/4" ID, 1/2" OD Male Straight Fitting
- Length: 3-1/8"
- Material: Stainless Steel
