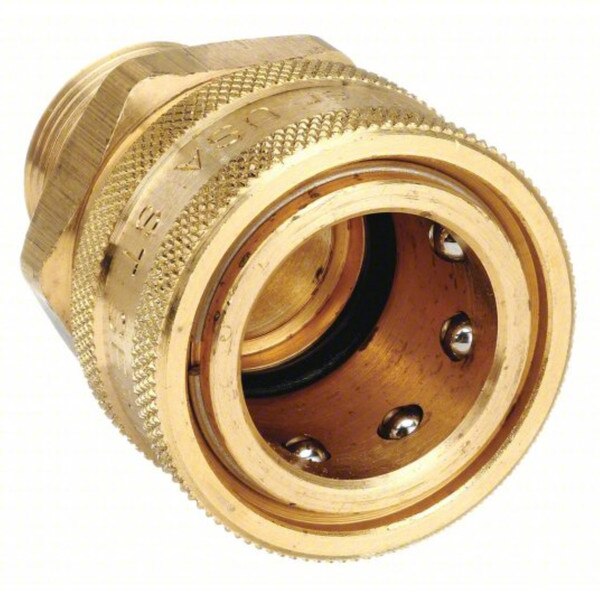

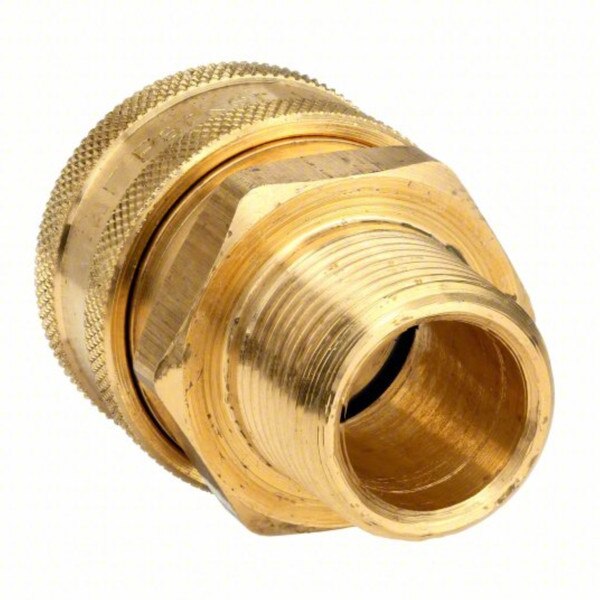

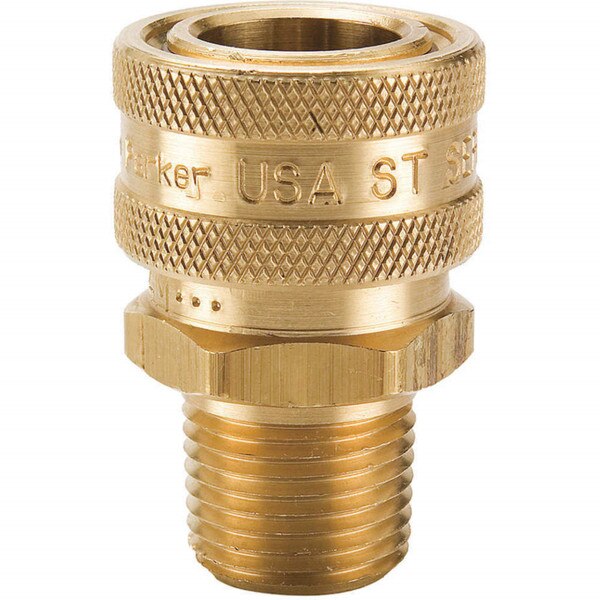

3/4" Male NPT x 3/4" Quick Connect Female NPT Brass Coupler
This coupler can be used in multiple applications at the wash site including in hydraulic and high flow hose applications. The coupler has a 3/4" Male NPT connection on one end and a 3/4" Quick Connect Female NPT connection on the other end. It is unvalved and has a manual sleeve that provides high flow and low pressure drop. This straight through coupler has a seal made of nitrile material and a body made of brass material. It supports a flow rate of up to 28 GPM.
- End 1: 3/4" Male NPT
- End 2: 3/4" Quick Connect Female NPT
- Flow Rate: 28 GPM
- Max Operating Pressure: 1,700 PSI
- Operating Temp. Range: -40F-250F
- Seal Material: Nitrile
- Body Material: Brass
- Dimensions: 2-2/4" X 1-5/8"
- Made for Hydraulic and High Flow Applications
- Unvalved
- Manual Sleeve
- Socket Coupling Design
90 Day Warranty
*Please review our warranty policy here for additional details.
