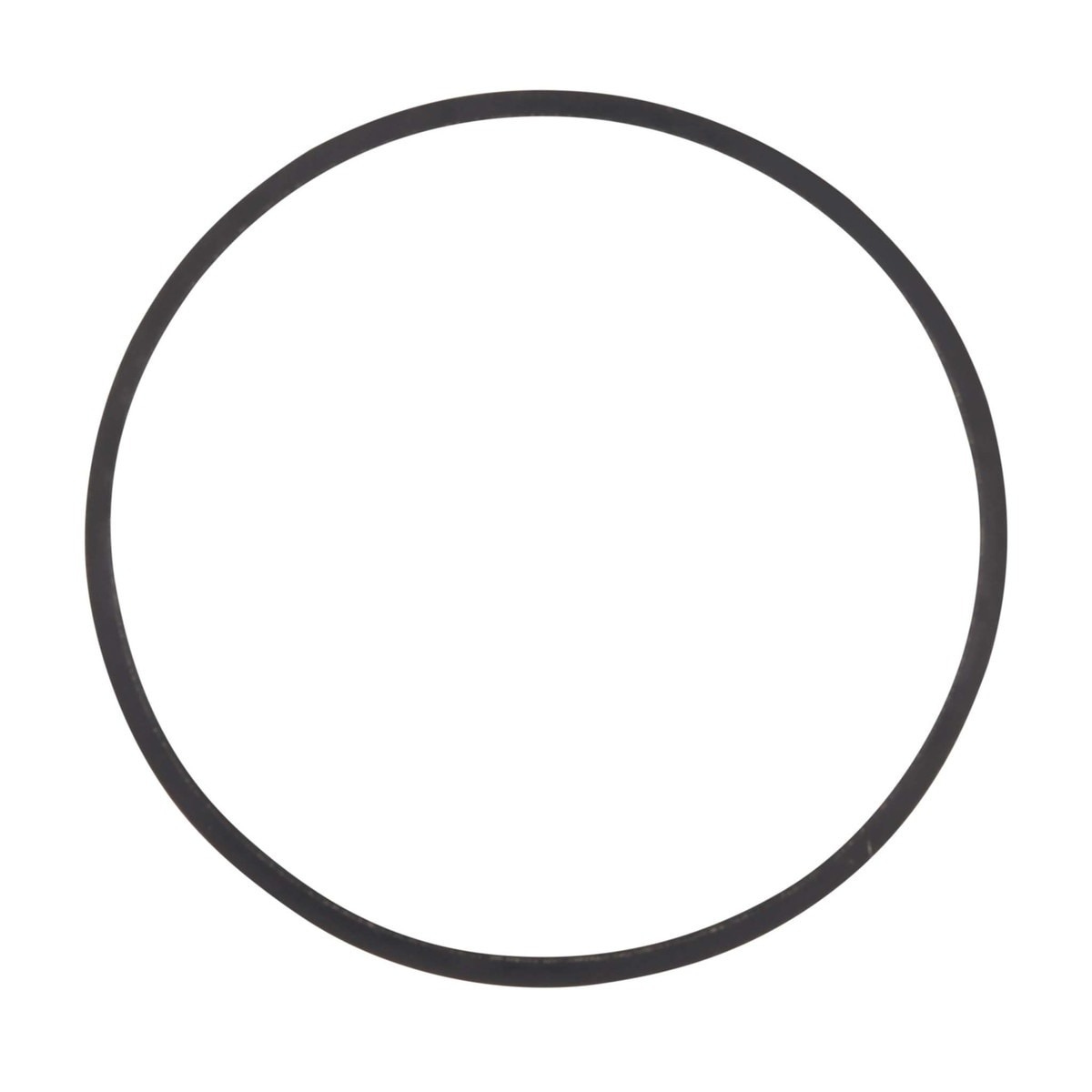

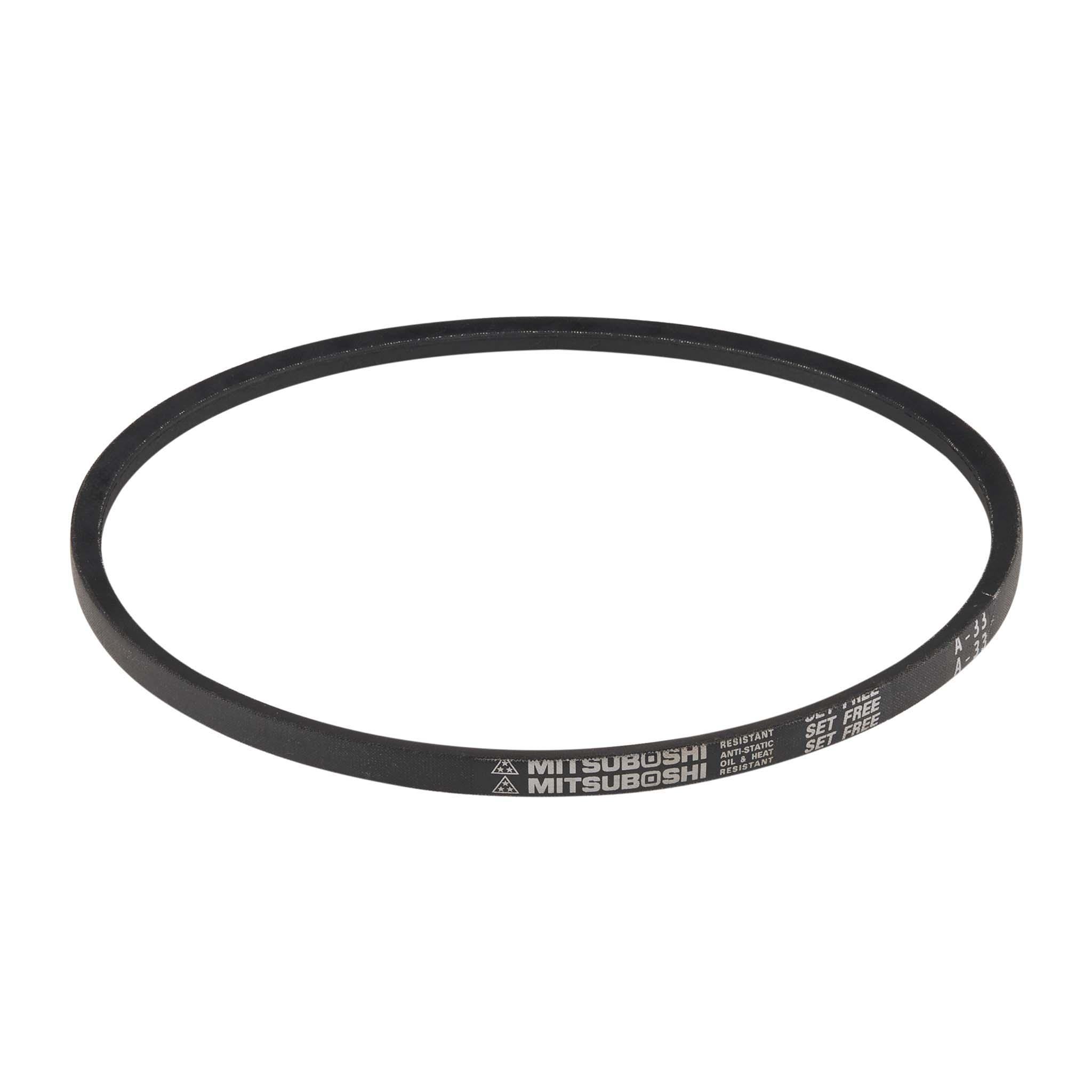

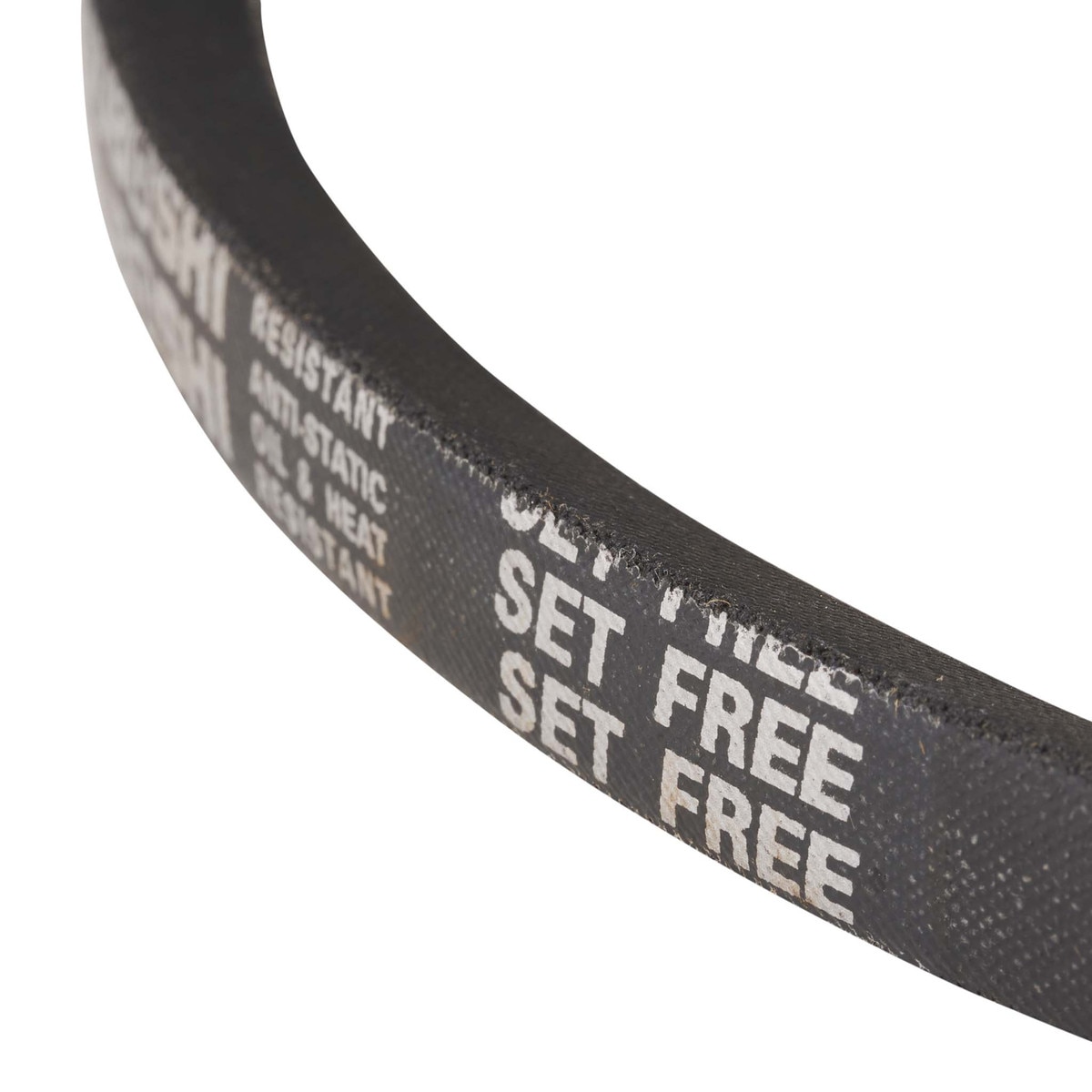

A-33 V-Belt for Rhino-Mat Mat Washer Back Pulley
SKU: P-RHM-PBA33A
A-33 Style V-Belt specifically designed as the back pulley belt for Rhino-Mat Mat Washer Units
This A-33 V-belt is a critical power transmission component in the Rhino-Mat Washer, connecting the 10-inch and 8-inch pulleys that drive the unit's mechanism. Its construction and material specifications are engineered to handle the continuous cycling and wet conditions of the wash site, ensuring reliable power delivery with minimal slippage.
Key features and benefits include:
- Specific Mat Washer Fit: Designed specifically as the back pulley belt for the Rhino-Mat Mat Washer units located in the vacuum area.
- A-33 Standard: Adheres to the A-33 V-belt sizing standard, guaranteeing compatibility with the corresponding pulleys.
- Durable Construction: Made from Rubber with internal Polyester Cords protected by a single-layer cover. This construction results in uniform load distribution, uniform wear, and extended belt life.
- Precise Sizing: Features an Inside Circumference Length of 33 inches and an Outside Circumference Length of 35 inches. The top width is 1/2 inch with a nominal thickness of 5/16 inch.
- High-Performance Rating: Capable of handling a tensile strength of up to 2,900 N/mm and operating in temperatures from -22°F to 194°F.
- Product Type: V-Belt (Power Transmission Belt)
- Belt Style: A-33 V-Belt
- Inside Circumference Length: 33 in
- Outside Circumference Length: 35 in
- Top Belt Width: 1/2 in
- Nominal Thickness: 5/16 in
- Belt Material: Rubber
- Cord Material: Polyester
- Tensile Strength: 2,900 N/mm
- Operating Temp. Range: -22°F to 194°F
- Color: Black
- Application: Back Pulley of Rhino-Mat Mat Washer Units
- A-33 Size: Exact fit for Mat Washer pulley system.
- 33" IC Length: Standard dimension for proper tension.
- Polyester Cords: Ensures strength and uniform load distribution.
- Wide Temp Range: Reliable performance in extreme weather.
