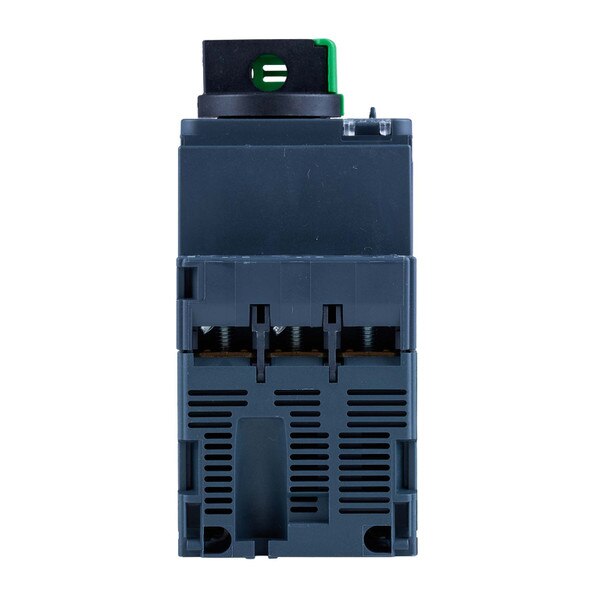

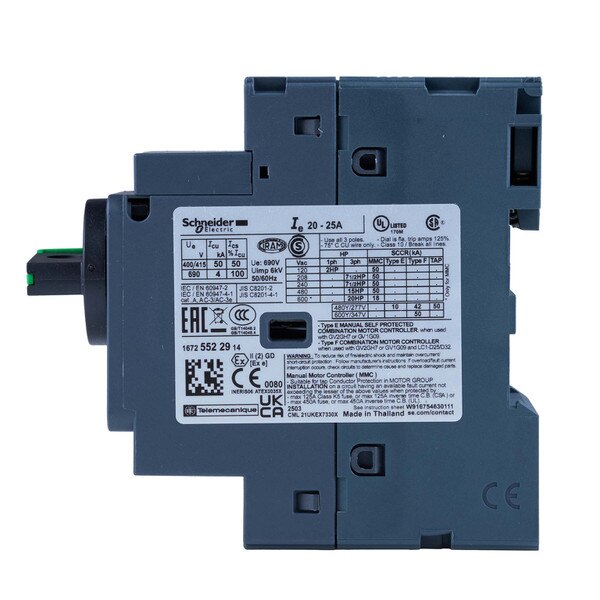

TeSys GV2P22 Manual Motor Starter/Protector (20-25A, 690VAC, 3-Pole)
The TeSys GV2P Manual Motor Starter and Protector (MPN: GV2P22) is a highly reliable and compact electrical component essential for safeguarding and controlling motors in industrial settings, such as car wash tunnel Motor Control Center (MCC) panels. This robust 3-pole device integrates multiple critical functions into a single unit: manual isolation for safe power disconnection, manual motor control via an intuitive rotary knob, and crucial thermal-magnetic protection against both overcurrents and short-circuits.
With a precise current adjustment range of 20 to 25 Amperes and an operational voltage rating of up to 690 VAC, the GV2P22 is versatile for a wide range of motor sizes. Its impressive breaking capacity includes 4 kA at 690 VAC and up to 100 kA at lower voltages (230/240V), ensuring robust fault protection. Designed for seamless integration into control systems, it is typically paired with a contactor for a complete motor control assembly.
The unit features screw clamp terminals for secure and straightforward wiring. Its compact dimensions (3.50" H x 1.77" W x 3.82" D) and flexible mounting options (35mm DIN rail or direct panel mounting) make it adaptable to diverse panel layouts. Engineered for continuous rated duty and capable of operating in extreme temperatures (-4°F to 140°F), the GV2P22 guarantees reliable performance. As a Green Premium product, it adheres to stringent environmental standards and boasts extensive international certifications (UL, CSA, IEC, etc.), underscoring its quality and safety.
- Product Type: Manual Motor Starter and Protector
- Manufacturer Part Number (MPN): GV2P22
- Brand: TeSys GV2P (Schneider Electric)
- Poles: 3-Pole (3P)
- Network Type: AC
- Current Rating (Thermal Adjustment Range): 20 - 25 A
- Rated Operational Voltage (Ue): 690 V AC 50/60 Hz (IEC 60947-2)
- Breaking Capacity (Icu):
- 4 kA at 690 V AC 50/60 Hz (IEC 60947-2)
- 10 kA at 500 V AC 50/60 Hz (IEC 60947-2)
- 20 kA at 440 V AC 50/60 Hz (IEC 60947-2)
- 50 kA at 400/415 V AC 50/60 Hz (IEC 60947-2)
- 100 kA at 230/240 V AC 50/60 Hz (IEC 60947-2)
- Rated Service Short-Circuit Breaking Capacity (Ics):
- 100% at 690 V AC 50/60 Hz (IEC 60947-2)
- 100% at 230/240 V AC 50/60 Hz (IEC 60947-2)
- 75% at 500 V AC 50/60 Hz (IEC 60947-2)
- 50% at 400/415 V AC 50/60 Hz (IEC 60947-2)
- 75% at 440 V AC 50/60 Hz (IEC 60947-2)
- Control Type: Rotary Knob
- Trip Unit Technology: Thermal-Magnetic
- Terminal Type: Screw Clamp Terminals (accepts 1-6 mm² solid / 1.5-6 mm² flexible without end / 1-4 mm² flexible with end)
- Tightening Torque: 15.05 lbf.in (1.7 N.m)
- Rated Insulation Voltage (Ui): 690 V AC IEC 60947-2
- Rated Impulse Withstand Voltage (Uimp): 6 kV IEC 60947-2
- Frequency: 50/60 Hz (IEC 60947-4-1)
- Operating Temperature Range: -4°F to 140°F (-20°C to 60°C)
- Storage Temperature Range: -40°F to 176°F (-40°C to 80°C)
- Dimensions (H x W x D): 3.50" x 1.77" x 3.82" (89 mm x 45 mm x 97 mm)
- Mounting: 35 mm Symmetrical DIN Rail (clipped) or Panel Screwed (2 x M4 screws)
- Operating Position: Any position
- Rated Duty: Continuous (IEC 60947-4-1)
- Mechanical Durability: 100,000 cycles
- Electrical Durability: 100,000 cycles (AC-3 at 440 V)
- IP Degree of Protection: IP20 (IEC 60529)
- IK Degree of Protection: IK04
- Standards: EN/IEC 60947-2, EN/IEC 60947-4-1, UL 60947-4-1, CSA C22.2 No 60947-4-1
- Certifications: UL, CSA, IECEE CB Scheme, CCC, EAC, ATEX, BV, LROS, DNV-GL, RINA
- Environmental Status: Green Premium Product, EU RoHS Compliant, Mercury Free
- Package Weight: 0.76 lb (0.34 kg)
- Integrated Protection: Combines manual isolation, motor control, thermal overload, and short-circuit protection in one compact unit.
- Adjustable Current Rating: Thermal protection range of 20A to 25A allows for precise motor matching and protection.
- High Breaking Capacity: Robust fault protection with 4 kA at 690V and up to 100 kA at lower voltages.
- Thermal-Magnetic Trip Unit: Ensures reliable and accurate response to overload and short-circuit conditions.
- Versatile Application: Ideal for Motor Control Center (MCC) panels in car wash tunnels and other industrial settings.
- Easy to Operate: Features a user-friendly rotary knob for straightforward manual control.
- Durable Construction: Built for continuous duty and wide operating temperature ranges (-4°F to 140°F).
- Flexible Mounting: Supports both 35mm DIN rail and panel screw mounting.
- Global Compliance: Certified by major international standards (UL, CSA, IEC, etc.) for safety and performance.
18 Month Warranty
*Please review our warranty policy here for additional details.
