Lovejoy L100 Flexible Shaft Coupling Assembly - 1-3/8" Motor x 7/8" Pump Shaft for 4 Port Hydraulic Banks

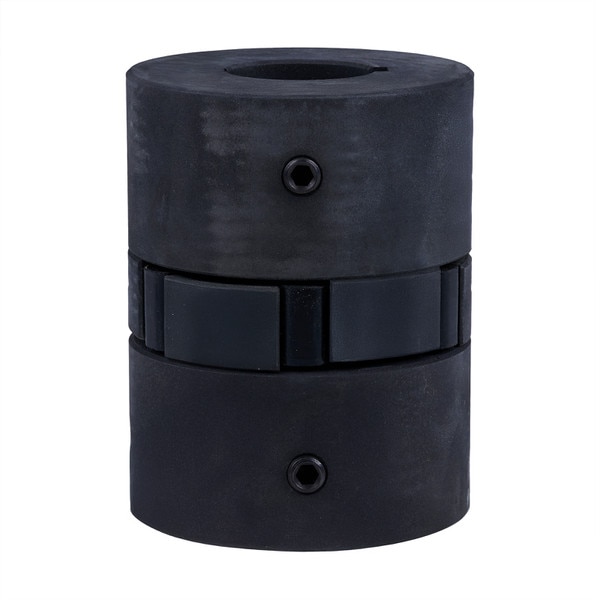

This Lovejoy L100 Flexible Shaft Coupling Assembly is a robust 3-piece set designed to provide efficient and reliable power transmission in hydraulic systems, specifically tailored for use with 4 port hydraulic banks. The assembly includes two coupling halves and a durable NBR (Nitrile Butadiene Rubber) spider insert, ensuring comprehensive functionality straight out of the box. The NBR rubber insert offers excellent resilience and oil resistance, contributing to the coupling's long service life and ability to absorb shock, vibration, and accommodate shaft misalignment, thereby protecting connected equipment.
This coupling is precisely engineered to connect a 1-3/8 inch diameter motor shaft to a 7/8 inch diameter pump shaft, ensuring a perfect fit and optimal performance in compatible hydraulic configurations. Its design allows for impressive power handling capabilities across various speeds: it can transmit 0.66 max HP at 100 RPM, 11.2 max HP at 1750 RPM, and up to 21.8 max HP at 3450 RPM. Furthermore, this L100 series coupling is interchangeable with other leading L-jaw couplers from manufacturers such as Lovejoy, Martin, Browning, and TB Woods, offering flexibility for replacement and integration into existing systems.
- Product Type: Flexible Shaft Coupling Assembly
- Coupling Series: Lovejoy L100
- Components: 2 Coupling Halves, 1 NBR Rubber Insert (Spider)
- Motor Shaft Diameter Compatibility: 1-3/8"
- Pump Shaft Diameter Compatibility: 7/8"
- Application: 4 Port Hydraulic Banks
- Insert Material: NBR Rubber
- HP Ratings:
- Max HP @ 100 RPM: 0.66
- Max HP @ 1750 RPM: 11.2
- Max HP @ 3450 RPM: 21.8
- Interchangeability: Compatible with Lovejoy, Martin, Browning, TB Woods, and other L-jaw couplers.
- Complete 3-Piece Set: Includes all necessary components for a functional coupling.
- NBR Rubber Spider: Provides excellent shock and vibration absorption, extending equipment life.
- Oil-Resistant Insert: Ensures durability and longevity in demanding environments.
- High Power Transfer: Capable of handling significant horsepower across various RPMs.
- Precise Shaft Compatibility: Designed for specific 1-3/8" motor and 7/8" pump shaft diameters.
- Broad Interchangeability: Compatible with major L-jaw coupling brands for flexible sourcing.
- Optimized for 4-Port Hydraulic Banks: Ensures reliable performance in targeted applications.
