Blue Box Digital Input/Output Interface Module

(0) No Reviews yet
SKU: P-E2041

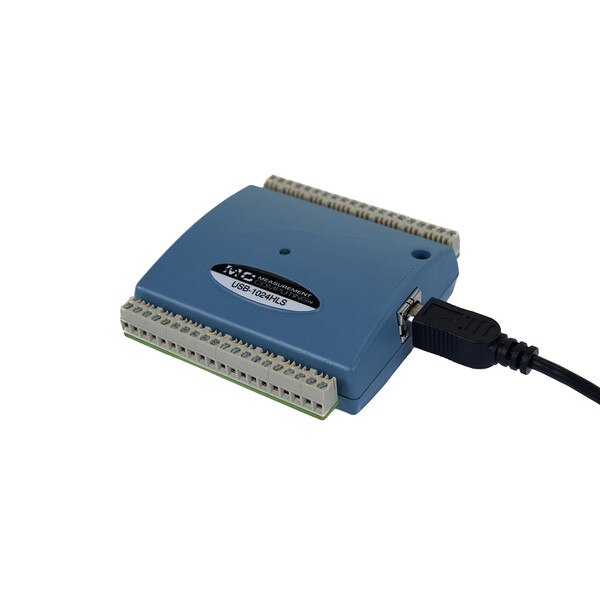

USB-1024HLS Digital Input/Output Interface Module -  Entrance Sign Module

This item is IN STOCK

The USB-1024HLS module has a high output current that can drive many logic level devices directly, eliminating the need for costly buffering circuitry. This module is part of the USB-1024 Series of modules that provide 24 DIO channels. Each port is independently configurable for input or output. It is supported under popular Microsoft Windows operating systems. This is a plug and play module. This module comes in a case and includes USB cable and MCC DAQ software. Used as the entrance sign module.
  • Input: 74ACT373
  • Output: 74FCT244
  • Sink Per Output: 64 mA
  • Source Per Output: 15 mA
  • Max Input Voltage: 5.5 V
  • Signal Input/Output: 40-Pin Screw Terminals
  • Number of Ports: 24
  • 24 Digital I/O Ports
  • Metal Cased Exterior
  • Includes USB Cable
  • Counter Input
  • Screw Terminals
1 Year Warranty
