Champion Duplex Piston Air Compressor & Air Dryer Kit (15 HP, 120 Gal)
This kit provides the ultimate air solution for high-volume car wash applications, combining a reliable, high-output duplex compressor with an efficient refrigerated air dryer.
Air Compressor (HR7DF-12):

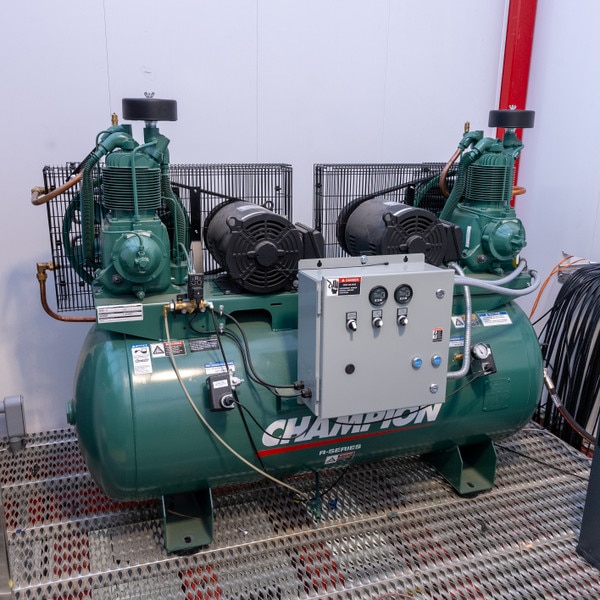

The core is the Champion R-Series Duplex Piston Compressor, which utilizes two 7.5 HP pumps on a single 120 gallon horizontal tank. This 460 V,3-Phase system ensures constant air availability by alternating operation for even wear and engaging both pumps during peak 44.6 CFM demand. The compressor includes advanced features like an Air Cooled Aftercooler, Electronic Tank Drain, and Low Oil Stop Control for minimal maintenance.
Air Dryer (CGD50A1FP):
The included Champion CGD50A1FP Refrigerated Air Dryer has a 50 CFM capacity and operates on 115 V, Single Phase. It is critical for removing damaging moisture from the compressed air, providing air quality that meets ISO 8573-1 Class 4 to 5 pressure dew point standards. The dryer features a compact, reliable design with smooth bore, copper tube-on-tube heat exchangers, a centrifugal separator with stainless steel demister, and an electronic drain valve for efficient condensate removal. The addition of the dryer protects sensitive pneumatic components (like blast gates and solenoids) from rust and degradation.
NOTE: This machine includes an air dryer. For the air compressor only unit, please order 40007.
General Kit Information:
- Product Type: Duplex Air Compressor & Refrigerated Air Dryer System
- Application: Commercial Car Wash Pneumatic Air Supply
- Included Components: Champion HR7DF-12 Compressor & Champion CGD50A1FP Dryer
- Note: This kit includes the air dryer. For the compressor-only unit, order 40007.
Compressor Unit (HR7DF-12) Specifications:
- Horsepower (Total): 15 HP (Dual 7.5 HP pumps)
- Compressor Voltage: 460 V
- Phase: 3-Phase
- Frequency: 60 Hz
- Current Rating (FLA): 11 A
- Max Working Pressure (MWP): 175 PSI
- Capacity Delivered (CFM): 44.6 CFM at 175 PSI
- Storage Tank Capacity: 120 Gallons (Horizontal)
- Speed (RPM): 949 RPM
- Pump Design: Splash-Lubricated R-Series
- Key Features: Air Cooled Aftercooler, Electronic Tank Drain, Low Oil Stop Control, Hour Meter, Loadless Starting (Mechanical Governor-Type), Gasketless Design.
- Piston/Cylinder: Aluminum Alloy First-Stage Piston, Cast Iron Second-Stage Piston, Multi-Finned Cylinders.
- Reservoir: Rugged Cast Iron Oil Reservoir.
- Valves: Reliable, High-Flow Disc Valves (Corrosion Resistant Steel).
Air Dryer Unit (CGD50A1FP) Specifications:
- Air Dryer Capacity: 50 CFM
- Air Dryer Voltage: 115 V
- Air Dryer Phase: Single Phase
- Air Quality Standard: ISO 8573-1 Air Quality, Class 4 to 5 Pressure Dew Point
- Refrigerant: CFC-Free R134A
- Condensate Management: Centrifugal Separator with Stainless Steel Demister, Electronic Drain Valve.
- Heat Exchangers: Smooth bore, copper tube-on-tube.
- Controls: Illuminated On/Off Switch, Dew Point Temperature Display.
Overall System & Environmental Specs:
- Air Connection Size: 3/4" (Compressor & Dryer)
- Drain Connection Size: 3/4"
- Noise Level: 80 dB(A)
- Operating Temp. Range: 32F−104F
- Compressor Dimensions: 75"(L)×33"(W)×54"(H)
- Air Dryer Dimensions: 20"(D)×20"(W)×22"(H)
- Total Approximate Weight: 1,251 lbs (1,150 lbs Comp. +101 lbs Dryer)Certifications: CSA approved (Dryer).
- Complete Air Solution: Includes the high-output 15 HP compressor and a 50 CFM refrigerated air dryer.
- Continuous Dry Air: Duplex compressor system ensures constant supply, while the dryer removes damaging moisture (ISO Class 4-5 Air Quality).
- Low Maintenance: Features electronic tank drains on both the compressor and the dryer, plus a low oil stop control.
- High Efficiency: R-Series compressor design with Loadless Starting and balanced components ensures long life and performance.
1 Year Cover to Cover Warranty
3 Year Pump Package Warranty
2 Year Bare Pump Warranty
1 Year Electric Motors Warranty
1 Year Air Receivers Warranty
1 Year Package, Electric Motor, Air Receivers, Bare Pump Labor Warranty
1 Year Air Dryer Warranty
*Please review our warranty policy here for additional details.
