Galvanized Steel Vacuum Stanchion Template Plate - 7/8" Holes

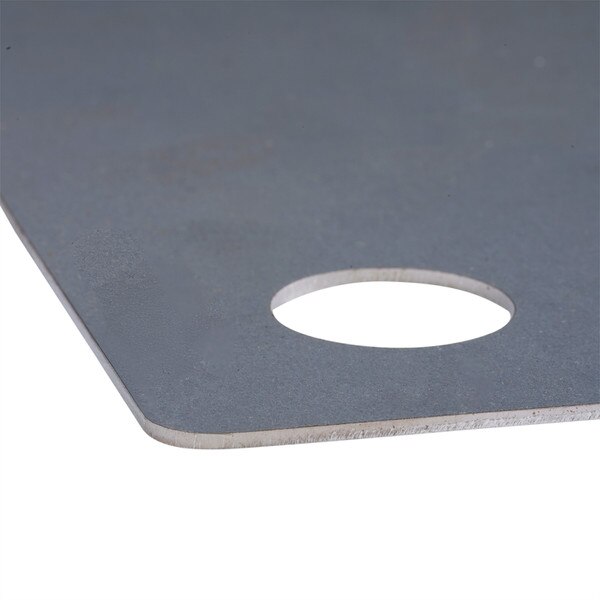

Vacuum Stanchion Template Plate is a precisely engineered component designed to facilitate the accurate installation of vacuum stanchions. This durable template plate is constructed from galvanized steel, providing excellent corrosion resistance and robust performance in various environments. Each side of the plate measures 14.75 inches long and has a thickness of 0.06 inches (or 16 gauge), ensuring both rigidity and ease of handling. The plate features a strategic hole pattern essential for various vacuum system setups: four 7/8-inch holes, with one positioned on each side of the plate, and a prominent 3.5-inch hole located in the middle of each side. This arrangement allows for versatile mounting and pipe connections, optimizing the functionality of vacuum stanchions. The use of galvanized steel ensures a long lifespan and consistent reliability, making this template plate a dependable guide for precise and efficient installation, reducing potential errors and saving valuable time in assembly or maintenance tasks. Its specific dimensions and hole configurations make it ideal for standardized applications requiring precise vacuum stanchion placement and integration.
- Product Type: Vacuum Stanchion Template Plate
- Material: Galvanized Steel
- Material Thickness: 0.06 inches (16 Gauge)
- Length (Each Side): 14.75 inches
- Hole Configuration:
- Four (4) 7/8-inch holes (one on each side)
- One (1) 3.5-inch hole (in the middle of each side)
- Application: Facilitates precise installation for vacuum stanchions.
- Galvenized Steel Construction: Provides superior corrosion resistance and durability.
- Pre-Drilled Holes: Features standard 7/8" and 3.5" holes for easy vacuum stanchion setup.
- Precise Dimensions: Each side is 14.75" long, ensuring accurate placement.
- Durable Construction: Made from 16-gauge material (0.06" thick) for robustness.
- Simplifies Installation: Acts as a template for consistent and efficient mounting.
