Phoenix Contact PLC Output Relay (24V AC/DC, 6A)

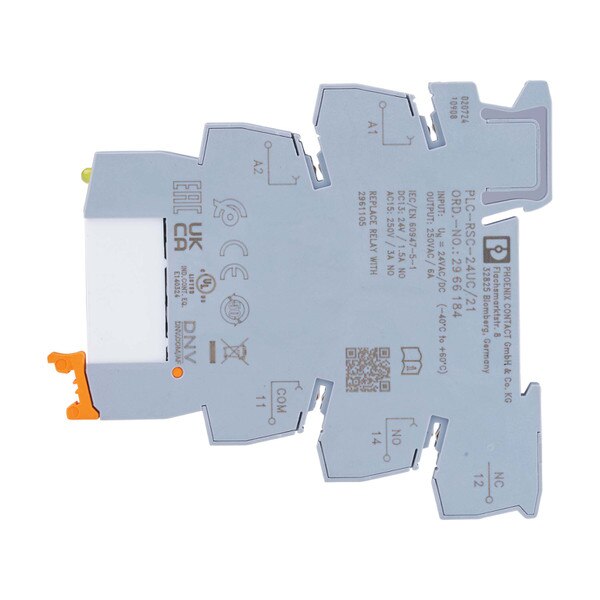

The 2966184 Phoenix Contact PLC Output Relay is a versatile and compact switching device (Phoenix Contact PLC-RSC- 24UC/21), specifically designed for industrial control applications. It is commonly used in systems such as the Motor Control Center for vacuums at wash sites, providing reliable power switching.
This relay stands out due to its universal control voltage of 24V AC/DC, allowing for flexible integration into various control circuits, whether AC or DC powered. It delivers a limiting continuous current of 6 Amperes, suitable for controlling a range of loads. The relay module consists of a durable base terminal block with secure M3 screw connections and a pluggable miniature relay with a power contact.
Key features include a 1 PDT (Single Pole Double Throw) contact type with AgSnO contact material, offering versatile switching capabilities. It has a typical response time of 6 ms and a typical release time of 15 ms, ensuring efficient and timely operation. The relay is equipped with a yellow LED indicator for visual status feedback.

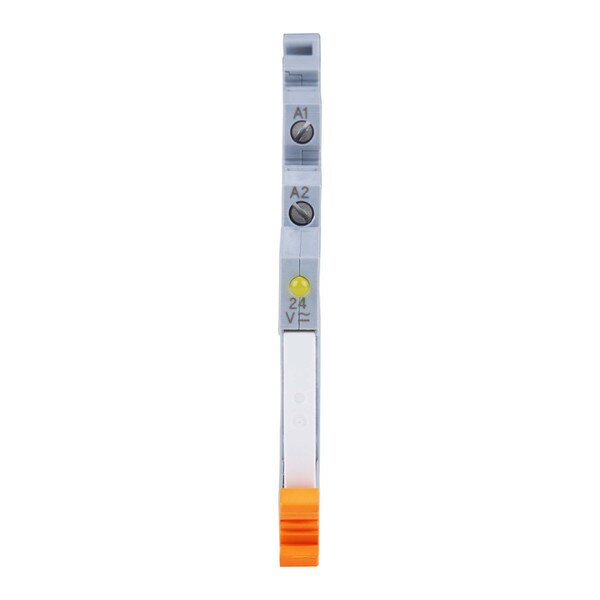

Designed for space efficiency and ease of installation, the 2966184 relay boasts a slim design (6.2 mm width) and is intended for DIN rail assembly (NS 35/7.5). It supports efficient connection to system cabling through an optional V8 adapter and includes functional plug-in bridges for streamlined wiring. It offers IP20 protection (relay base) against solid objects.
Safety and reliability are paramount, with features such as safe isolation according to DIN EN 50178 between the coil and contact, integrated input and interference suppression circuits, and a bridge rectifier for AC/DC input. It operates effectively within an ambient temperature range of -40°C to 60°C (-40°F to 140°F) and has a mechanical service life of 2 x 10^7 cycles. This relay is extensively certified, including UL and CUL listings, ensuring compliance with rigorous safety and performance standards.
- Product Type: PLC Output Relay (Relay Module)
- Manufacturer Part Number (MPN): 2966184 (Phoenix Contact PLC-RSC- 24UC/21)
- Control/Input Voltage (Nominal): 24 V AC/DC
- Typical Input Current at UN: 11 mA (at 24V AC), 8.5 mA (at 24V DC)
- Current Rating (Limiting Continuous): 6 A
- Contact Type: 1 PDT (Single Pole Double Throw)
- Type of Switch Contact: Single contact
- Contact Material: AgSnO
- Maximum Switching Voltage: 250 V AC/DC
- Minimum Switching Voltage: 5 V (at 100 mA)
- Min. Switching Current: 10 mA (at 12 V)
- Maximum Inrush Current: 10 A (4 s)
- Interrupting Rating (Ohmic Load):
- Max. 140 W (at 24 V DC)
- 1500 VA (for 250 V AC)
- Typical Response Time: 6 ms
- Typical Release Time: 15 ms
- Ambient Temperature (Operation): -40°C to 60°C (-40°F to 140°F)
- Ambient Temperature (Storage/Transport): -40°C to 85°C (-40°F to 185°F)
- Dimensions (Approximate):
- Width: 6.2 mm (~0.24 inches)
- Height: 80 mm (~3.15 inches)
- Depth: 94 mm (~3.70 inches)
- Net Weight per Piece: 31.060 g
- Connection Method: Screw connection (M3 screw thread, 0.14 mm² - 2.5 mm² / AWG 26 - 14)
- Mounting: DIN rail NS 35/7.5 (In rows with zero spacing)
- Protective Circuit: Bridge rectifier, Reverse polarity protection
- Operating Voltage Display: Yellow LED
- Degree of Protection: IP20 (Relay base)
- Mechanical Service Life: 2 x 10^7 cycles
- Flammability Rating: V0 according to UL 94
- Standards/Regulations: IEC 60664, EN 50178, UL Listed, CUL
- Universal Voltage Input: Accepts both 24V AC and 24V DC control signals.
- Slim & Space-Saving Design: Ideal for compact control panels.
- 6A Switching Capability: Handles common industrial loads.
- 1 PDT Contact: Provides versatile switching configurations.
- DIN Rail Mountable: Facilitates quick and organized installation.
- Integrated LED Indicator: Offers clear visual status of the relay.
- Secure Screw Connections: Ensures reliable and durable wiring.
- High Reliability: Built with safe isolation, integrated protection circuits, and a long mechanical service life.
- Global Compliance: Certified by major international standards for broad applicability.
18 Month Warranty
