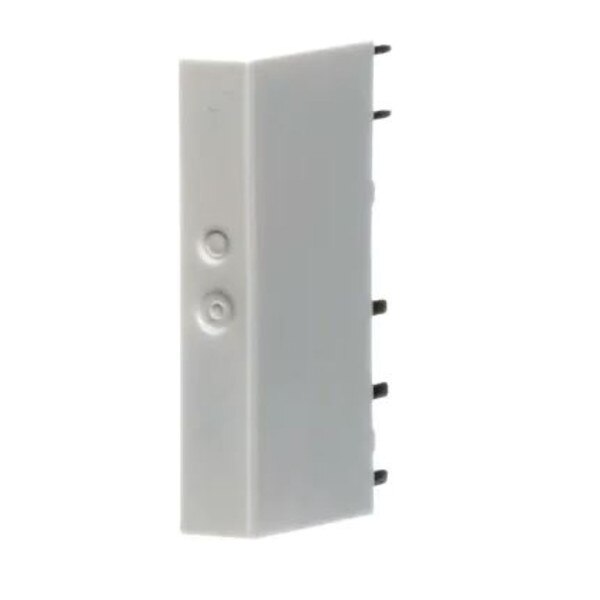

Phoenix Contact Plug In Miniature Power Relay 24V
This plug-in miniature power relay is a robust component suitable for various control and switching applications throughout the car wash site, offering flexibility in assembly due to its compact and efficient plug-in design.
The relay's 24 VDC coil voltage makes it compatible with common industrial control systems. It is rated for a 6 A continuous current and can handle a maximum switching voltage of 250 V AC/DC. The SPDT (Single Pole, Double Throw) configuration provides one changeover contact, allowing it to switch power between two different circuits.
Built with Silver Tin Oxide (AgSnO) contacts, the relay is designed for reliable and high-performance switching. Its quick 5 ms operate time and durable 2×10^7 mechanical cycles ensure long-term dependability in demanding environments. The wide operating temperature range of −40C to 85C (−40F to 185F) guarantees reliable operation across various conditions.
- Manufacturer Part No. (MPN): 2961105
- Series: Phoenix Contact REL-MR
- Product Type: Plug-In Miniature Power Relay
- Coil Voltage (Nominal Input): 24 VDC
- Coil Current (Typical): 7 mA
- Contact Form: SPDT (1 Form C, 1 Changeover Contact)
- Contact Material: Silver Tin Oxide (AgSnO)
- Contact Rating (Limiting Continuous Current): 6 A
- Max Switching Voltage: 250 V AC/DC
- Operate Time (Response Time): 5 ms
- Release Time: 2.5 ms
- Mechanical Service Life: 2×10^7 cycles
- Mounting Type: Through Hole
- Termination Style: PC Pin
- Operating Temp. Range: −40C to 85C (−40F to 185F)
- High Efficiency: Low 7 mA coil current at 24 VDC nominal input.
- Flexible Design: Plug-in style allows for easy individual or modular assembly.
- Durable Contacts: Silver Tin Oxide material ensures reliable 6 A switching performance.
- Wide Operating Range: Stable operation across a broad temperature range of −40F to 185F.
- Fast Switching: Quick 5 ms response time for rapid control system execution.
