3/8" FNPT Brass Coupler (400 PSI)
SKU: P-WAT-2269

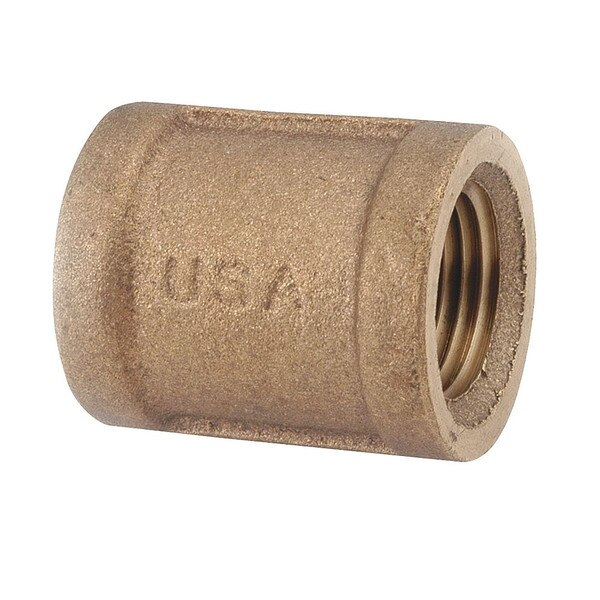

This brass coupling is designed to securely join two pieces of 3/8 inch pipe or two male-threaded fittings. Its robust construction and pressure rating make it suitable for fluid and pneumatic applications where moderate pressure and corrosion resistance are required. The straight configuration ensures an uninterrupted flow path.
Key features and benefits include:
- Standard Connection: Features identical 3/8 inch Female NPT threads on both sides, conforming to industry standards for reliable fluid connection.
- Durable Brass Construction: Constructed from Brass for good resistance to corrosion from water and general plumbing applications.
- Pressure and Temperature Rating: Rated for a maximum pressure of 400 psi and a temperature range of 0 degrees F to 400 degrees F.
- Wide Application: Used as a vital component within the All-In-One High Pressure Pump Assembly in car wash systems.
- Compliance: Meets standards such as ASME B.16.15 and B1.20.1.
- Model: 82103-06
- Manufacturer: Anderson Metals Corp.
- Alternate Part Numbers: 4WER8, 3048203, IBRLFCC
- Product Type: Pipe Coupling / Adapter
- Body Material: Brass
- Pipe Size: 3/8 in
- Connection Type: FNPT on both ends
- Max. Pressure: 400 psi
- Class: 250 lb.
- Outside Diameter (Approx.): 5/8 in
- Length (Approx.): 1-29/32 in
- Temp. Range: 0 Degrees to 400 Degrees F
- Application: All-In-One High Pressure Pump Assembly
- 3/8" FNPT: Connects two same-size pipe threads.
- Brass Material: Standard plumbing component for corrosion resistance.
- 400 PSI Max: Suitable for moderate-pressure applications.
- Pump Assembly: Used in the High Pressure Pump Assembly.
