10 HP Electric Motor for Blower

(0) No Reviews yet
$500.00
SKU: P-B2056
Description: 10 HP General Purpose Motor, 3-Phase, 3515 Nameplate RPM, Voltage 208-230/460, Frame 215TC

This item is IN STOCK

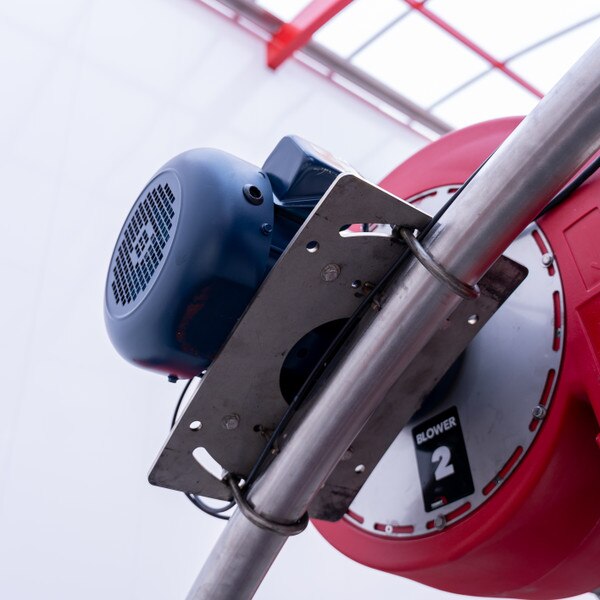

10HP Electric  Motor for Blower System. Motor has corrosion-resistant finish, V-ring slingers on both endshields block debris from entering housing cavity, and automatic pressure-compensated drain plugs. Gasketed conduit boxes are threaded for easier installation. Stainless steel, laser-etched nameplate maintains information over long life.
  • Item :  General Purpose Motor
  • Motor Application :  General Application
  • Motor Design :  3-Phase
  • Motor Enclosure Design :  Totally Enclosed Fan-Cooled
  • HP :  10
  • Nameplate RPM :  3515
  • Frame :  215TC
  • Voltage :  208-230/460
  • Hz :  60
  • Phase :  3
  • Full Load Amps :  25.7-23.2/11.6
  • No. of Speeds :  1
  • Motor Mounting Type :  Face/Base
  • Motor Mounting Position :  All Angle
  • Motor Thermal Protection :  None
  • Ins. Class :  F
  • Motor Service Factor :  1.25
  • Motor Bearings :  Ball
  • Frame Material :  Cast Iron
  • Max. Ambient Temp :  .40 Degrees C
  • Motor Shaft Rotation :  CW/CCW
  • Shaft Dia. :  1-3/8"
  • Shaft Length :  3-3/8"
  • Length Less Shaft :  16-1/8"
  • Overall Length :  19-1/2"
  • Motor Shaft Design :  Keyed
  • RPM Range :  3001-3600
  • Standards :  UL, CSA, CE, NOM
  • Duty :  Continuous
  • Motor Efficiency Group :  NEMA Premium Efficient
  • Nominal Efficiency :  90.2%
  • Inverter Rated :  Yes
  • Manufacturers Warranty Length :  3 yr.
  • RPM Group :  3001-3600
http://shop.tommycarwash.com/site/PDF-AUTO/P-B2056.pdf
