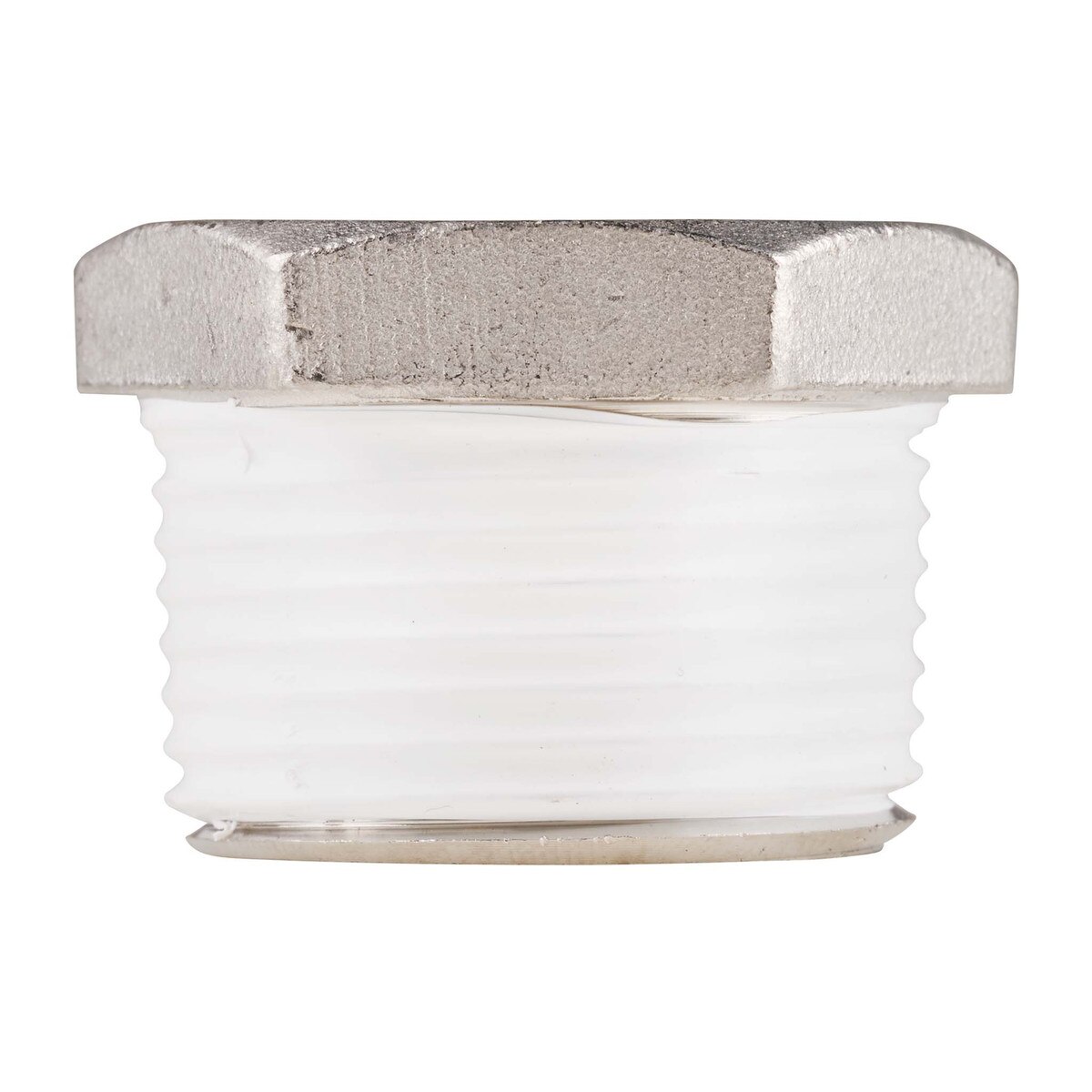

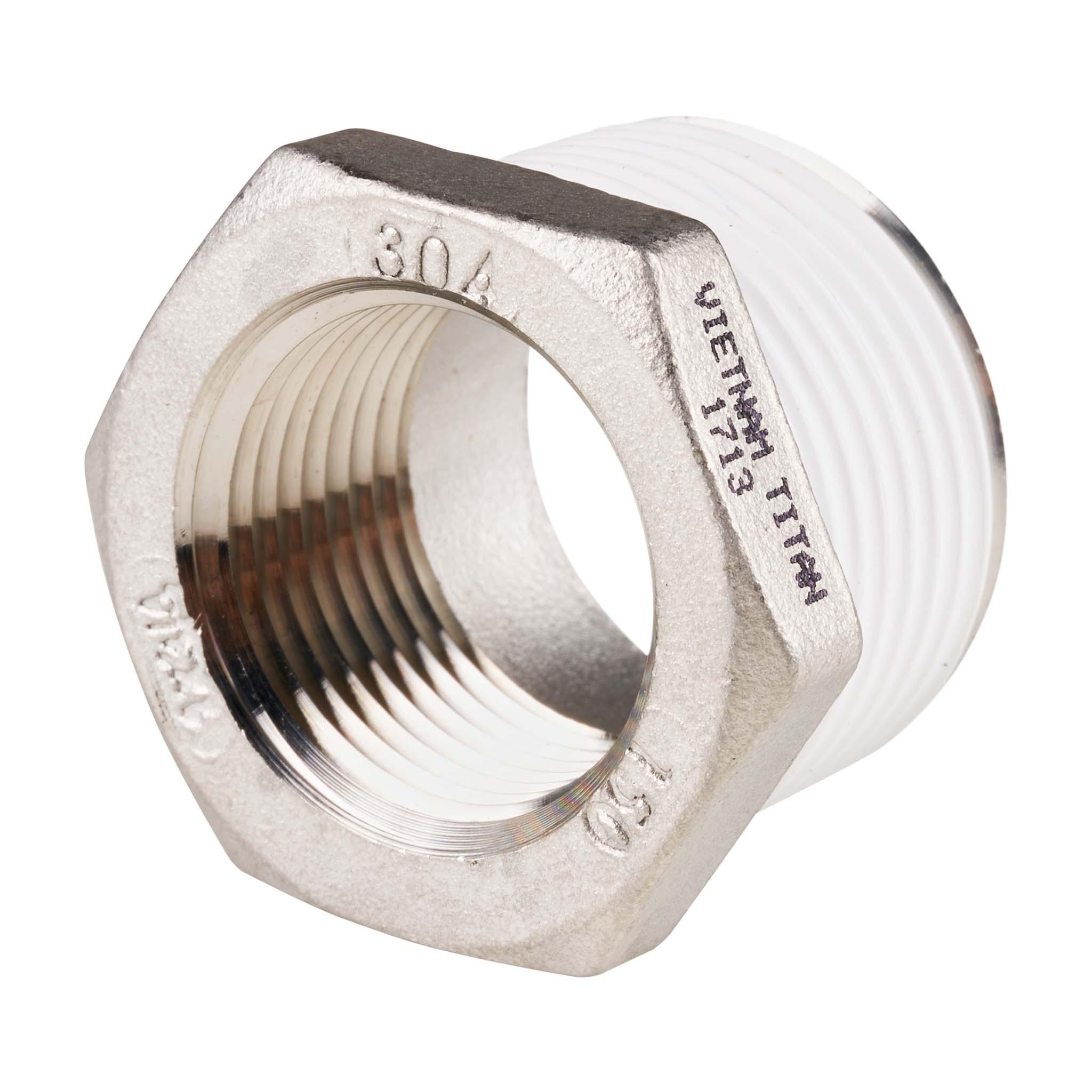

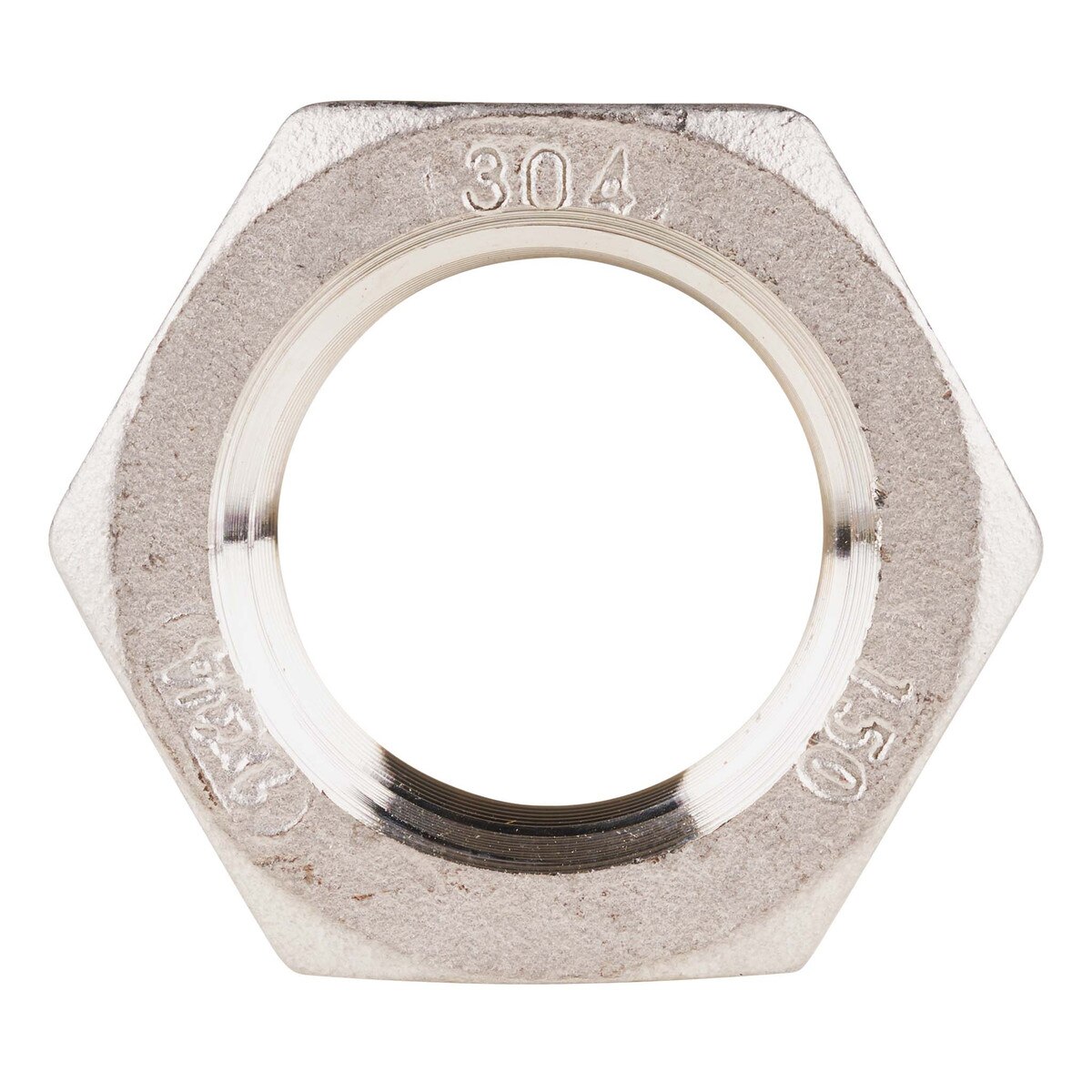

1" MNPT x 3/4" FNPT Reducer Bushing (304 Stainless Steel)
SKU: P-WAT-2336
This stainless steel reducer bushing is a robust, high-integrity plumbing fitting used to change pipe sizes within critical car wash systems. Unlike brass or standard steel, its 304 Stainless Steel construction ensures exceptional durability and resistance to rust and corrosion, which is vital for components constantly exposed to water and chemicals, especially in the Reverse Osmosis (RO) system.
Key features and benefits include:
- Size Reduction: The fitting adapts from a larger 1-inch Male NPT (MNPT) thread on the outside to a smaller 3/4-inch Female NPT (FNPT) thread on the inside, allowing for efficient integration of different pipe and sensor sizes.
- Corrosion-Proof: Constructed from Grade 304 Stainless Steel, providing superior resistance to chemical attack and high humidity, ensuring a long service life.
- High Pressure Rating: Rated for the 150 lb. class pipe bushing standard, guaranteeing reliability under high-pressure applications.
- Versatile Application: This bearing (fitting) is widely used in essential car wash infrastructure, including the All-In-One Pump Station and the Tommy RO System.
- Hex Design: Features a hex shape for easy installation and removal using a standard wrench.
- Product Type: Threaded Reducer Bushing / Pipe Fitting
- End 1 Connection: 1 in Male NPT (MNPT)
- End 2 Connection: 3/4 in Female NPT (FNPT)
- Material: 304 Stainless Steel
- Class Rating: 150 lb.
- Function: Reduces pipe size in threaded plumbing systems.
- Common Applications: All-In-One Pump Station, Tommy RO System.
- 1" MNPT x 3/4" FNPT: Standard size reduction for plumbing integration.
- 304 Stainless Steel: Ultimate protection against corrosion.
- 150 lb. Class: High pressure and durability rating.
- Hex Bushing: Easy to install and remove with a wrench.
