Tommy 2.0 Vacuum Stainless Canister for 4.62HP Motors

(0)No Reviews yet
SKU: P-VAC-299

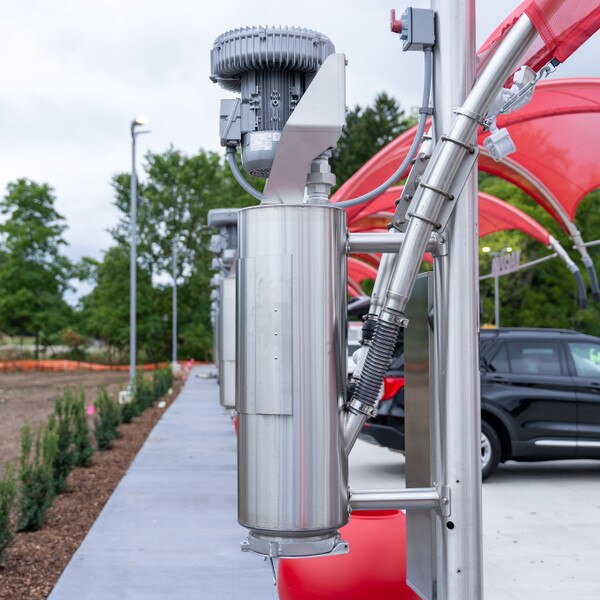

This vacuum canister is used in the vacuum area of the wash site. These canisters are used in the Tommy 2.0 Vacuum system and have one canister in each vacuum stall. The canister is mounted onto the vacuum stanchion and the vacuum motor is mounted on top of the canister. Each canister is made of stainless steel material to withstand the outdoor elements. They are 13" in diameter and 40-1/2" tall. There is a 2" connector hole on the top of the canister for the vacuum motor to mount to and 1/2" holes on top for the motor mounting brackets to connect to the canister. The dump door on the bottom of the canister is 10-1/2" in diameter and the two connection holes for the vacuum arch to connect to are 2-1/2" in diameter. This canister is where the dirt bags are stored to hold the dirt and debris that is vacuumed out of the guest vehicle. It has a latch less style stainless steel canister door and foam 3/8" thick door gasket.

  • Canister Diameter: 13"
  • Canister Height: 40-1/2"
  • Motor Connection Size: 2"
  • Vacuum Arch Connection Size: 2-1/2"
  • Dump Door Diameter: 10-1/2"
  • Mounting Bracket Diameter: 1/2"
  • Canister Material: Stainless Steel
  • Gasket Material: Foam
  • Used on Tommy 2.0 Vacuum System
  • Mounts Directly onto Vacuum Stanchion
  • Stainless Steel Construction
  • Latch Less Style Canister Door
  • Dirt Bag and Door Gasket Included
