Ultrasonic M30 Tire/Vehicle Position Sensor (Teach Cord Not Included)

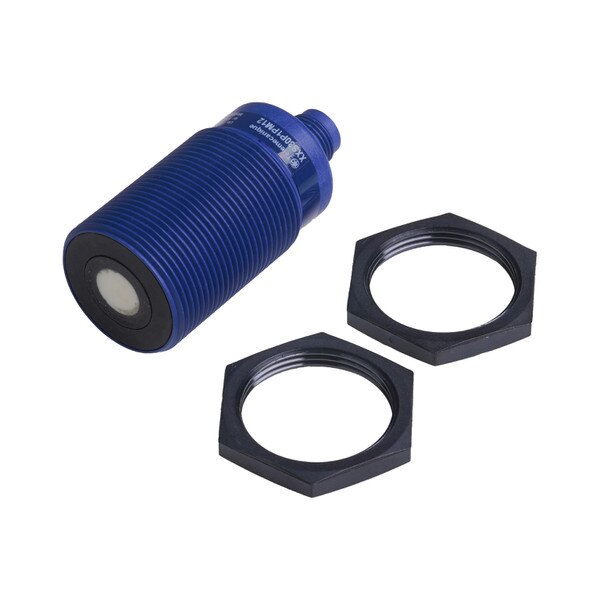

This robust ultrasonic cylindrical M30 sensor is designed to reliably detect the presence of an incoming vehicle as it loads onto the conveyor belt. This crucial signal prompts the Entrance Module screen to update and initiates the voice commander sequence. The sensor offers a 1-meter nominal sensing distance and a programmable PNP discrete output (normally open or normally closed). It operates on a 12-24 VDC supply voltage and connects via a 5-pin M12 male connector. The sensor's durable plastic body utilizes a diffuse detection system. Please note: A teach button cord for simplified configuration and calibration is sold separately. Kit including the teach button cord: CCS-XXS30P1PM12-K.
- Sensor Type: Ultrasonic Cylindrical
- Output Type: PNP Discrete (NO/NC Programmable)
- Sensor Size: M30

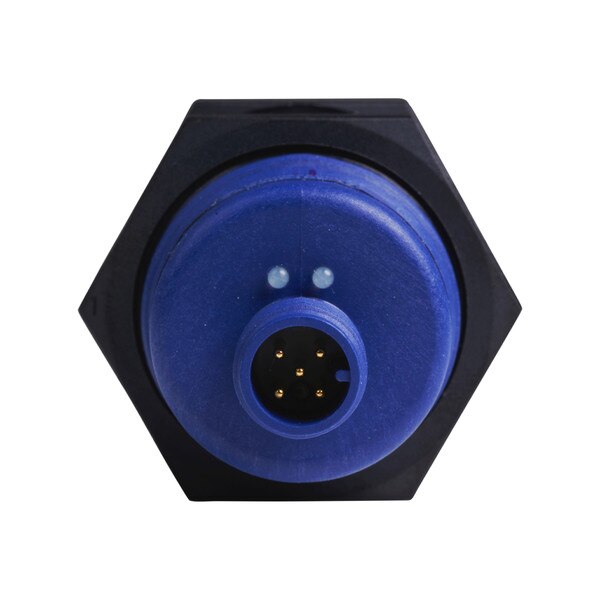

- Sensor Connection End: M12 5-Pin Male
- Sensor Discrete Output: 1 NO or 1 NC Programmable
- Supply Voltage: 12-24 VDC
- Sensing Range: 1m
- Operating Temp. Range: -13F-158F
- Sensor Body Material: PBT Plastic
- Tech Button Cord: Not Included. Kit including the teach sensor: CCS-XXS30P1PM12-K.
- Reliable ultrasonic detection of vehicle presence on the belt.
- Triggers entrance module screen and voice commander.
- 1-meter sensing distance with programmable PNP output.
- Wide 12-24 VDC operating voltage.
- Durable plastic construction.
- Teach button cord required for easy setup (Included in CCS-XXS30P1PM12-K)
18 Month Warranty
